Capacitor, Ignition: Installation

Courtesy of CHRYSLER GROUP, LLC

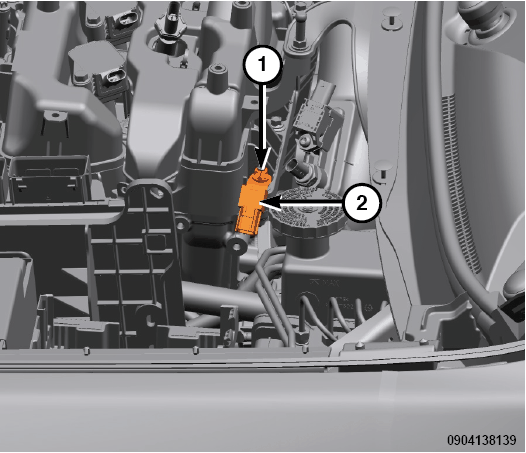

1. Install the ignition capacitor (2) with the nut (1) tightened to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).

   Courtesy of CHRYSLER GROUP, LLC

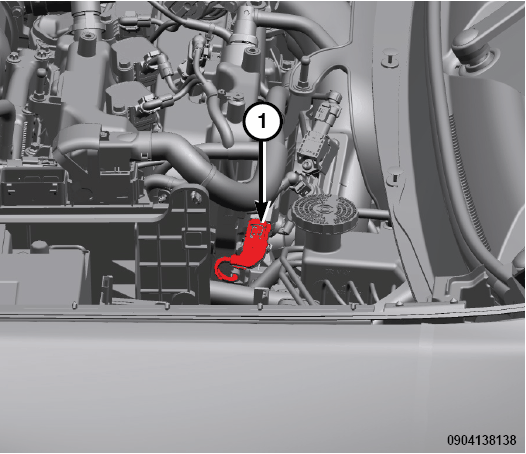

2. Connect the ignition capacitor wire harness connector (1).
3. Install the top engine cover. Refer to COVER, ENGINE, INSTALLATION .
4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
