Sensor, Air Temperature, Intake: Installation

Courtesy of CHRYSLER GROUP, LLC

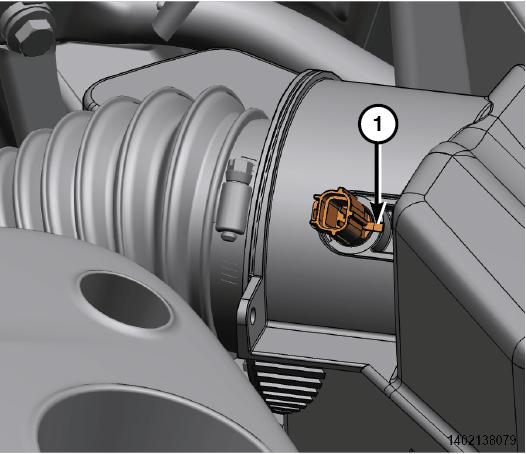

1. Position the IAT sensor in the air box and rotate clockwise to engage lock tab (1).
2. Connect the IAT sensor wire harness connector.
3. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
