Sensor, TMAP-Intake Manifold: Installation

Courtesy of CHRYSLER GROUP, LLC

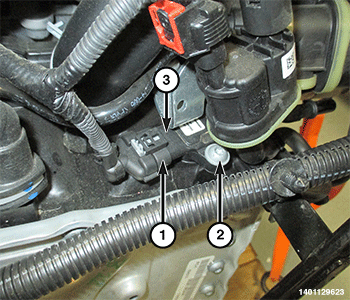

1. Install the TMAP sensor (3) complete with NEW  O-ring and securely tighten the screw (2).
2. Connect the TMAP sensor wire harness connector (1).
3. Install OBD vent valve. Refer to SOLENOID, EVAPORATIVE EMISSIONS PURGE, INSTALLATION .
4. Install the engine covers. Refer to COVER, ENGINE, INSTALLATION .
5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
