Outlet, Power, 115 V: Installation

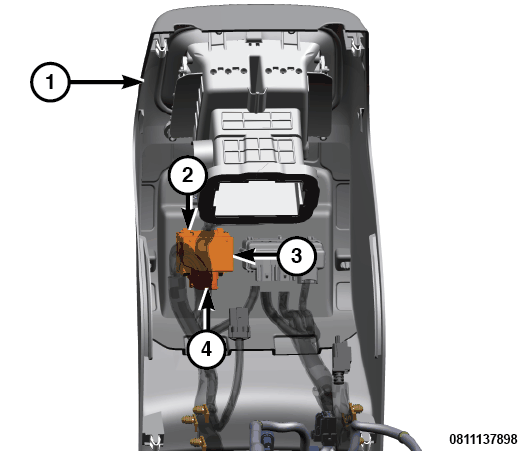

GC0186920Courtesy of CHRYSLER GROUP, LLC
  1. Insert the 115/230 volt outlet through the rear center console bezel (1). Make sure the retaining clips (2) of the 115/230 volt power outlet are fully engaged with the rear center console bezel.
  2. Connect the wire harness connector (4) to the 115/230 volt power outlet (3).
  3. Install the rear center console bezel (1).
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
