Charging System (Service Information): Generator: Removal: 3.2L

multimedia:A supplement to the article is available.

Perform the fuel system pressure release. Refer to FUEL SYSTEM PRESSURE RELEASE .
Disconnect and isolate the negative battery cable(s). Refer to NEGATIVE CABLE .

Courtesy of CHRYSLER GROUP, LLC
Remove the air filter housing body (1). Refer to REMOVAL .
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

Courtesy of CHRYSLER GROUP, LLC
Remove the right side front tire and wheel assembly. Refer to TIRES, REMOVAL .
Remove the accessory drive belt. Refer to BELT, SERPENTINE, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

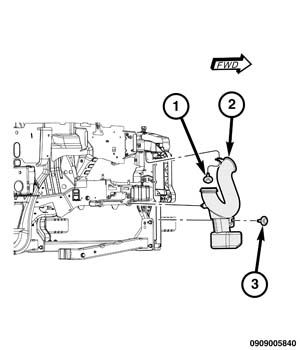

Remove the air intake inlet tube (2).
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

Courtesy of CHRYSLER GROUP, LLC
Remove the belly pan (1).

Courtesy of CHRYSLER GROUP, LLC

NOTE:
The A/C compressor bolts and right tow hook (if equipped) are removed to allow for extra clearance for the generator to pass between the upper and lower frame.
If equipped, remove the right tow hook.
Remove the A/C compressor bolts and lower the compressor to gain access.
Disconnect the field generator harness connector (1).
Remove the B+ cable (3) from the generator.
Lower the vehicle.
Using a suitable jack. Support the engine.

Courtesy of CHRYSLER GROUP, LLC
Remove the upper engine mount bolts to engine mount bracket (2, 3).

Courtesy of CHRYSLER GROUP, LLC
Remove the fuel line (2) at the fuel rail.

Courtesy of CHRYSLER GROUP, LLC

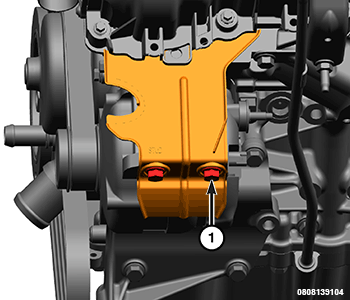

If equipped, remove the two bolts (1) and remove the drip tray.

Courtesy of CHRYSLER GROUP, LLC
Remove the lower generator mounting bolt (3).
Remove the top two generator mounting bolts (1).

Courtesy of CHRYSLER GROUP, LLC
Carefully remove the generator (1) between the upper and lower frame rail (2).
