Navigation/Telecommunication (Service Information): Microphone: Installation

Courtesy of CHRYSLER GROUP, LLC

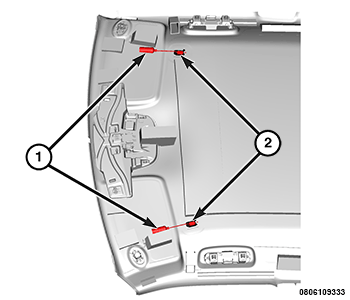

1. Insert the microphone wire harness connector pigtail (1) through the headliner and connect the pigtail to the headliner wire harness connector.
2. Install the microphone in the headliner. Be certain the microphone is flush with the surface of the headliner and the retaining tabs (2) are securely in position.
3. Install the headliner. Refer to HEADLINER, INSTALLATION .
