Relay, In-Rush Current Reduction: Installation

Courtesy of CHRYSLER GROUP, LLC

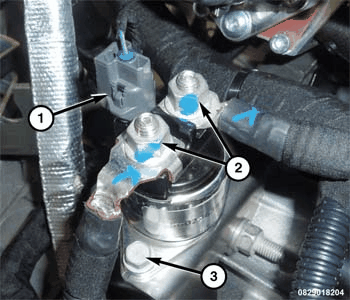

1. Position the In-Rush Current Relay (ICR) to the bracket.
2. Install the screws (3) securing the ICR to the bracket and tighten securely.
3. Connect and fasten the two terminal ends to the ICR, then tighten the two nuts (2) to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
4. Connect the wire harness connector (1) to the ICR.
5. Connect the negative battery cable(s). Refer to INSTALLATION .
