Removal And Installation: Installation

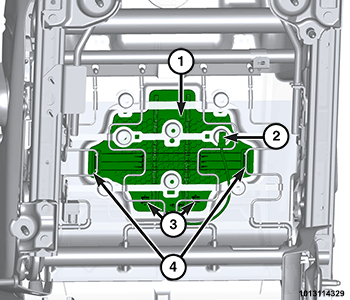

GC0179226Courtesy of CHRYSLER GROUP, LLC
  1. Carefully inspect the ODS (1) to be certain that it is in good condition.
  2. Route the ODS pigtail (2) through the seat frame.
  3. Align the ODS plate (1) to the seat wire frame using the alignment guides (3).
  4. Attach the ODS plate (1) to the seat frame by firmly pressing the two molded clips (4) into the seat wire frame.
  5. Connect the ODS pigtail connector (2) to the seat wire harness connector.
  6. Install the front seat cushion to the frame. Refer to COVER, SEAT CUSHION, FRONT, REMOVAL AND INSTALLATION .
  7. Install the passenger side front seat into the vehicle. Refer to SEAT, FRONT, REMOVAL AND INSTALLATION .
  8. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
