Outlet, Power, Universal Serial Bus: Installation

Courtesy of CHRYSLER GROUP, LLC

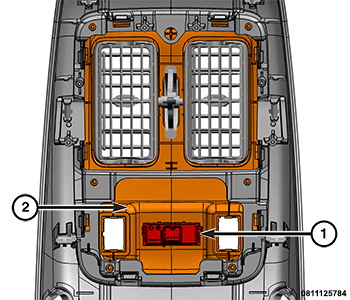

1. Install the power USB outlet (1) into center floor console rear panel (2) and engage the outlet retainers.
2. Connect the wiring harness connectors.

   Courtesy of CHRYSLER GROUP, LLC

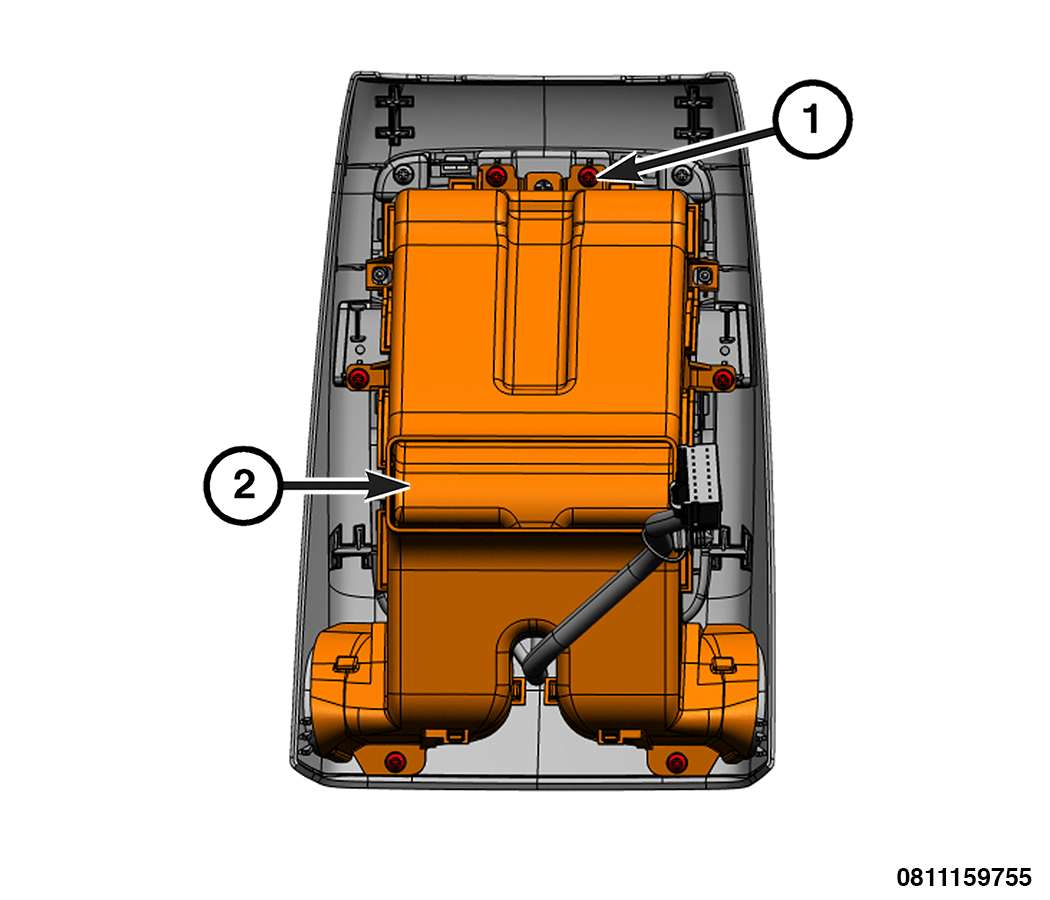

3. Install the center floor console rear HVAC duct (2) and fasteners (1) onto the center floor console rear panel. Tighten the fasteners securely.

   Courtesy of CHRYSLER GROUP, LLC

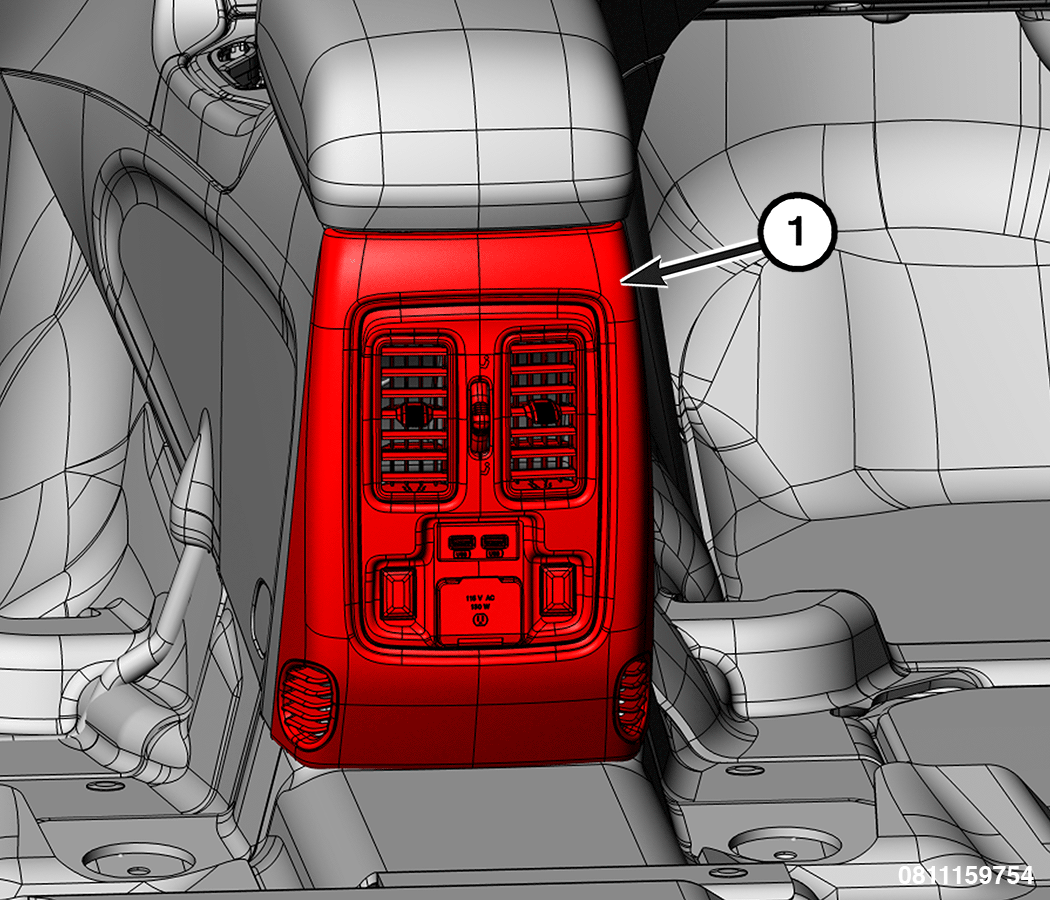

4. Install the center floor console rear panel (1) onto the center floor console.
5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
