Relay, Power Control: Installation

GC0175256Courtesy of CHRYSLER GROUP, LLC
  1. Using two nuts, install the Power Control Relay (2) to the PCR bracket (1) and tighten them to the proper specifications. Refer to TORQUE SPECIFICATIONS .

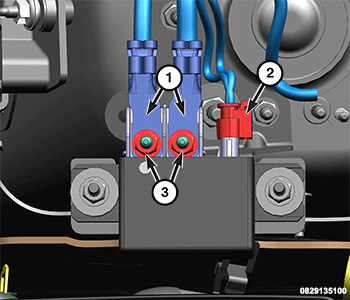

    GC0175214Courtesy of CHRYSLER GROUP, LLC
  2. Connect and secure the eyelet terminals (1) to the PCR and tighten the nuts (3) to the proper specifications. Refer to TORQUE SPECIFICATIONS .
  3. Connect the wire harness connector (2) to the PCR.

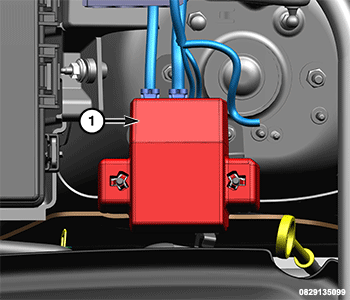

    GC0175247Courtesy of CHRYSLER GROUP, LLC
  4. Install the PCR cover (1) to the PCR.
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
