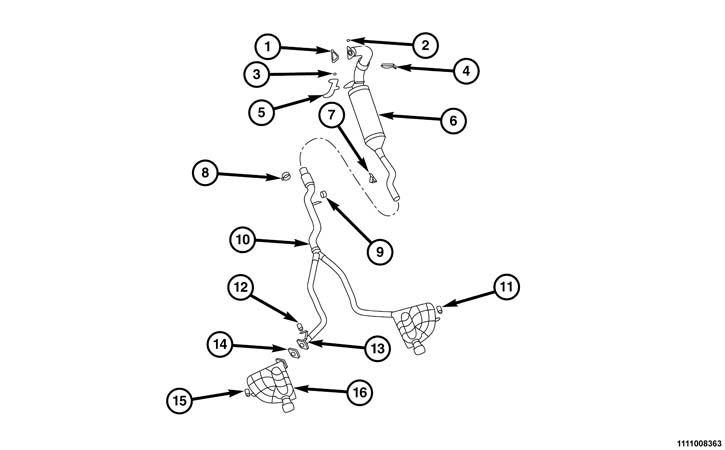

Exhaust System: Description: Diesel
| 1 - FLANGE GASKET |
| 9 - ISOLATOR |
| 2 - FLANGE NUT |
| 10 - MUFFLER TAILPIPE ASSEMBLY |
| 3 - NUT |
| 11- ISOLATOR |
| 4 - EXHAUST CLAMP |
| 12 - ISOLATOR |
| 5 - FRONT BRACKET |
| 13 - FLANGE NUT |
| 6 - DIESEL OXIDATION CATALYST (DOC)/DIESEL PARTICULATE FILTER (DPF) |
| 14 - FLANGE GASKET |
| 7 - ISOLATOR |
| 15 - ISOLATOR MUFFLER |
| 8 - EXHAUST CLAMP |
| 16 - RESONATOR TAIL PIPE |
