Tailpipe, Exhaust: Installation: Notes
NOTE:
Muffler installation is a two-man operation. Never allow the muffler to hang from the isolators. A helper is required to prevent damage to the isolators or the tailpipe/muffler assembly.
NOTE:
Some exhaust systems are equipped with adjustable tail pipes and can be removed without removing the resonator assembly.
- If equipped with adjustable tail pipes, install the tailpipe to the resonator outlet pipe and tighten the clamp.

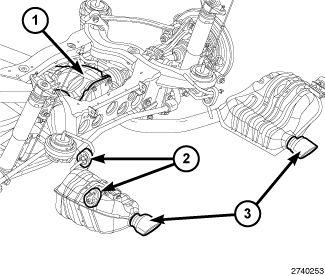

- If equipped with non adjustable tailpipes, position the tailpipe/resonator (3) assembly in vehicle.
- If equipped, install the left side tailpipe/resonator at the flange. Tighten the nuts to the proper specifications. Refer to TECHNICAL SPECIFICATIONS .
- Install the tailpipe/resonator insulators (2).
- Install the tailpipe into the exhaust pipe.
