Valve, Cascade Overflow: Installation

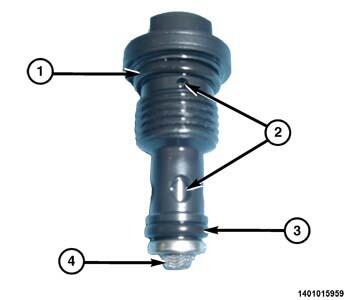

GC0158060Courtesy of CHRYSLER GROUP, LLC
  1. Inspect the cascade overflow valve O-ring seals (1, 3) and lubricate with clean diesel fuel.

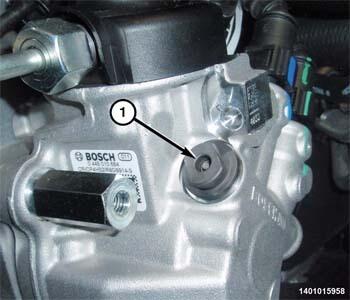

    GC0158002Courtesy of CHRYSLER GROUP, LLC
  2. Install the cascade overflow valve (1) and tighten to 18 N.m (13 ft. lbs.).

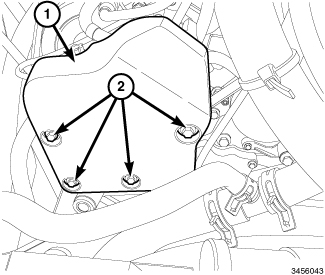

    GC0146780Courtesy of CHRYSLER GROUP, LLC
  3. Install the fuel injection pump blocker shield (1). Tighten the bolts (2) to 25 N.m (18 ft. lbs.).
    GC0146436Courtesy of CHRYSLER GROUP, LLC
  4. Install the engine cover (1).
