Sensor, Boost Pressure: Installation

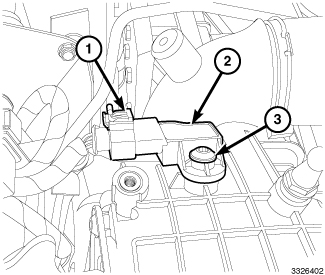

GC0146601Courtesy of CHRYSLER GROUP, LLC
  1. Install the boost pressure sensor (2) and securely tighten fastener (3).
  2. Connect the boost pressure sensor wire harness connector (1).

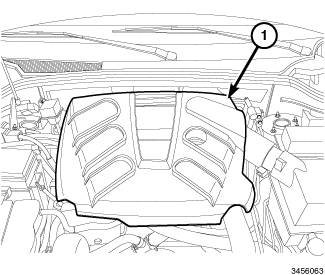

    GC0146436Courtesy of CHRYSLER GROUP, LLC
  3. Install the engine cover (1).
  4. Connect the negative battery cable.
