Sensor, Crankshaft Position: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Clean the area and bore around Crankshaft Position (CKP) sensor.

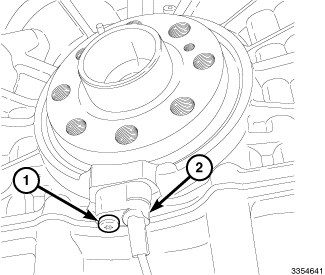

2. Install the CKP sensor (2). Tighten the bolt (1) to 6 N. m (53 in. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

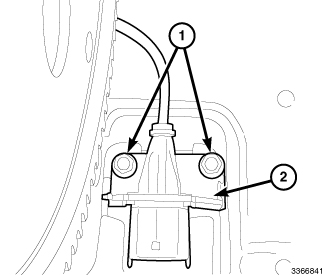

3. Install the bolts (1) attaching the harness connector bracket (2) to oil pan and tighten to 8 N. m (71 in. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

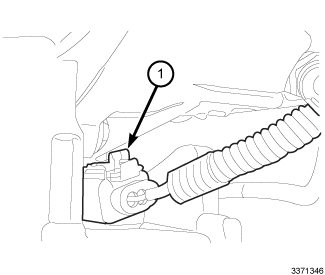

4. Connect the CKP sensor wire harness connector (1).
5. Install the flexplate. Refer to the appropriate service information .
6. Connect the negative battery cable.
