Capacitor, Ignition: Installation: 6.2L

Courtesy of CHRYSLER GROUP, LLC

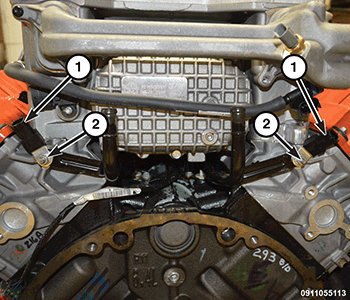

1. Install the ignition capacitor (1). Tighten bolt (2) to the proper specifications. Refer to TORQUE SPECIFICATIONS  .
2. Install the ignition capacitor wire harness connector.

   Courtesy of CHRYSLER GROUP, LLC

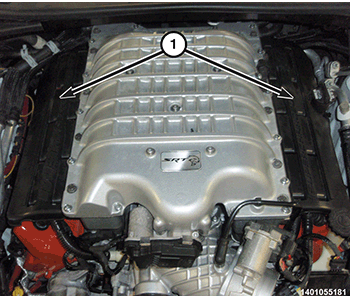

3. Install the engine cover(s) (1).
4. Install the cowl extension silencer. Refer to SILENCER, COWL EXTENSION, INSTALLATION .
5. Connect the negative battery cable.
