Pump, Water: Installation: 6.2L

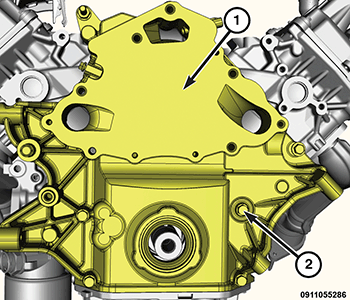

GC0170372Courtesy of CHRYSLER GROUP, LLC
  1. Clean and inspect the mating surfaces of the timing chain cover (1) and the water pump.

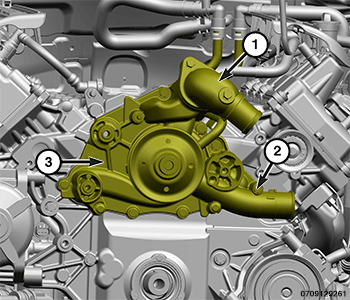

    GC0180919Courtesy of CHRYSLER GROUP, LLC
  2. Install the water pump (3) and tighten the bolts (2) to the proper specifications. Refer to TORQUE SPECIFICATIONS GAS  .
  3. Install the lower radiator hose.
  4. Install the upper radiator hose to the thermostat housing (1).

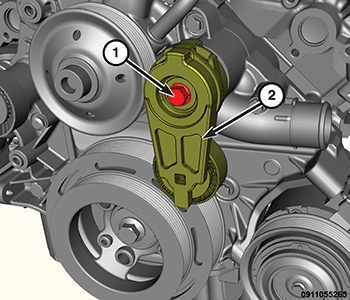

    GC0170458Courtesy of CHRYSLER GROUP, LLC
  5. Install the belt tensioner assembly (2) and tighten the bolt (1) to the proper specifications. Refer to TORQUE SPECIFICATIONS GAS  .

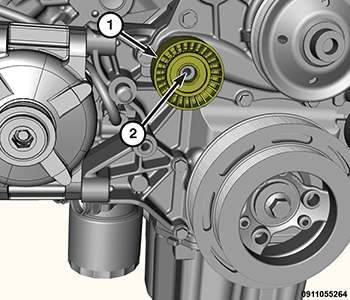

    GC0170066Courtesy of CHRYSLER GROUP, LLC
  6. Install the idler pulley (1) and tighten the bolt (2) to the proper specifications. Refer to TORQUE SPECIFICATIONS GAS  .
  7. Connect the temperature sensor wire hire harness connector.

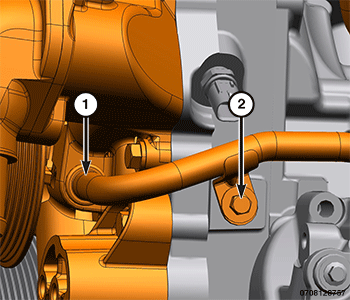

    GC0180916Courtesy of CHRYSLER GROUP, LLC
  8. Using a NEW  O-ring seal, install heater tube (1). Tighten the bolt (2) to the proper specifications. Refer to TORQUE SPECIFICATIONS GAS  .
  9. Install the supercharger belt. Refer to BELT, DRIVE, INSTALLATION .
  10. Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .
  11. Install the air cleaner body. Refer to INSTALLATION .
  12. Install the front skid plate. Refer to INSTALLATION .
  13. Connect the negative battery cable.
  14. Evacuate air and refill the cooling system. Refer to COOLANT SYSTEM AIR EVACUATION  .
  15. Check the cooling system for leaks. Refer to DIAGNOSIS AND TESTING .
