3.0L Diesel

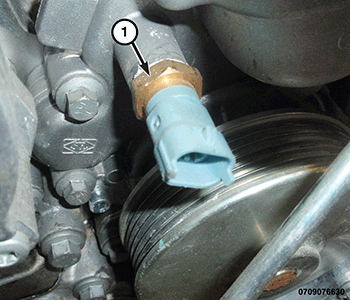

GC0172149Courtesy of CHRYSLER GROUP, LLC
  1. Install the coolant temperature sensor (1) into the water pump housing and torque to 11 N.m (8 ft. lbs.).

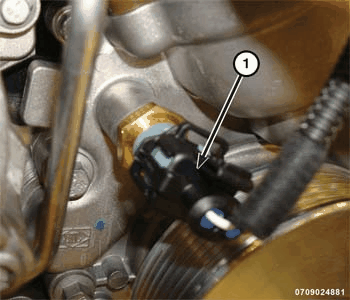

    GC0158079Courtesy of CHRYSLER GROUP, LLC
  2. Connect the coolant temperature sensor wire harness connector (1).
  3. Fill the cooling system. Refer to COOLANT SYSTEM AIR EVACUATION  .
    GC0146436Courtesy of CHRYSLER GROUP, LLC
  4. Install the engine cover (1).
  5. Connect the negative battery cable.
