Fan, Cooling: Installation: 3.2L

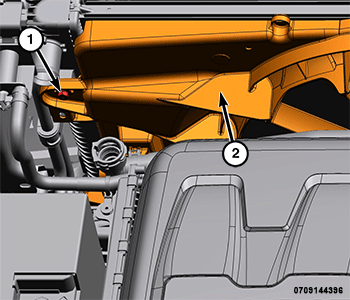

GC0186541Courtesy of CHRYSLER GROUP, LLC
  1. Install the cooling fan (2) and tighten the left bolt (1) to the proper specifications. Refer to TORQUE SPECIFICATIONS - 3.2L  .

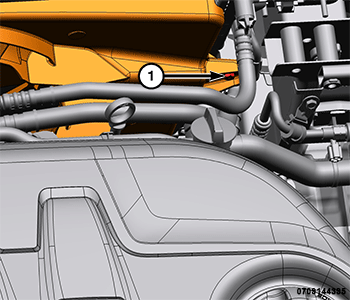

    GC0186868Courtesy of CHRYSLER GROUP, LLC
  2. Install the right cooling fan bolt (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS - 3.2L  .

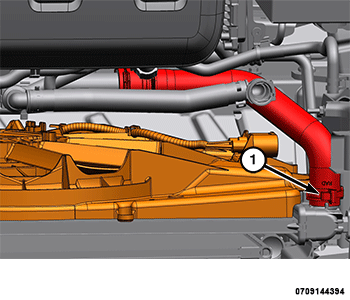

    GC0186869Courtesy of CHRYSLER GROUP, LLC
  3. Install the upper radiator hose (1).

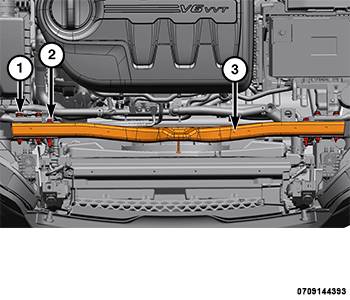

    GC0186591Courtesy of CHRYSLER GROUP, LLC
  4. Install the upper core support (3) and tighten the bolts (1, 2) to the proper specifications. Refer to TORQUE SPECIFICATIONS - 3.2L  .

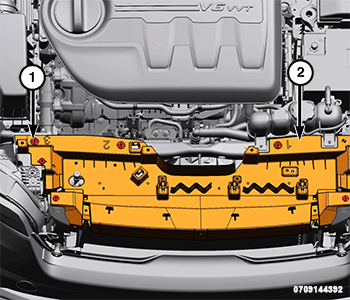

    GC0187065Courtesy of CHRYSLER GROUP, LLC
  5. Install the upper radiator panel (2) and securely tighten the screws (1).

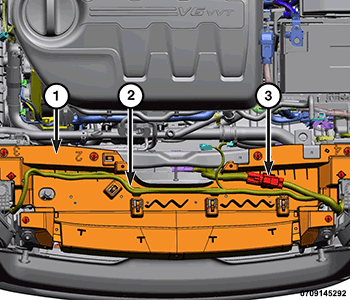

    GC0186806Courtesy of CHRYSLER GROUP, LLC
  6. Install the wire harness (2) to the upper radiator panel (1) and connect the cooling fan wiring harness connector (3).

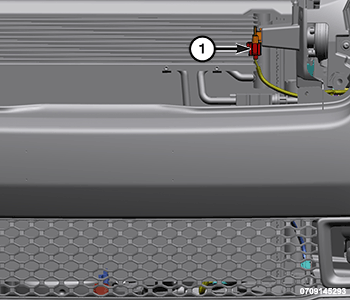

    GC0186745Courtesy of CHRYSLER GROUP, LLC
  7. Connect the ambient temperature sensor wire harness connector (1).
  8. Install the hood latch and cables. Refer to LATCH, HOOD, INSTALLATION .
  9. Install the pressurized coolant bottle. Refer to BOTTLE, PRESSURIZED COOLANT, INSTALLATION .
  10. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
