Fan, Cooling: Installation: 2.4L

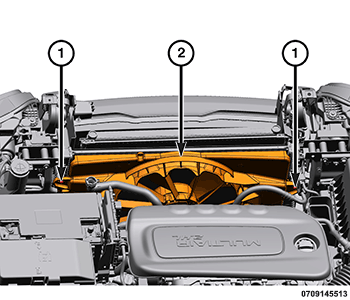

GC0187081Courtesy of CHRYSLER GROUP, LLC
  1. Install the cooling fan (2) and securely tighten the bolts (1).

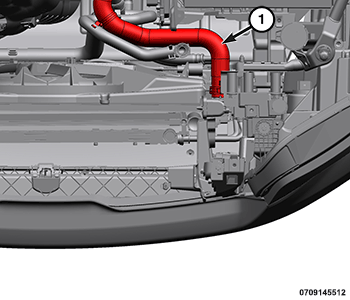

    GC0186387Courtesy of CHRYSLER GROUP, LLC
  2. Install the upper radiator hose (1).

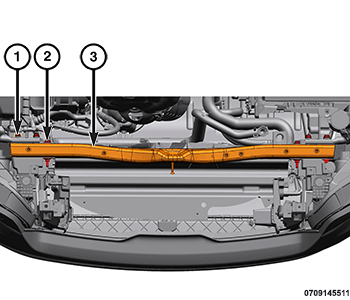

    GC0186622Courtesy of CHRYSLER GROUP, LLC
  3. Install the upper core support and tighten the six bolts (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS - 2.4L  .

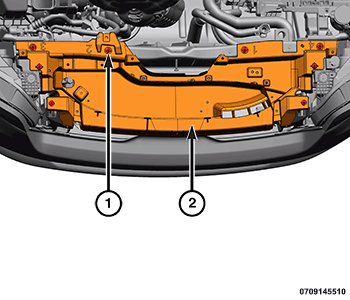

    GC0186859Courtesy of CHRYSLER GROUP, LLC
  4. Install the upper radiator panel (2) and securely tighten the screws (1).

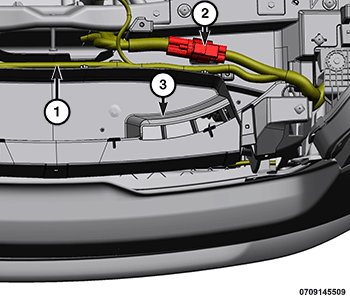

    GC0186842Courtesy of CHRYSLER GROUP, LLC
  5. Install the wire harness (1) to the upper radiator panel (3) and connect the cooling fan wiring harness connector (2).
  6. Install the hood latch and cables. Refer to LATCH, HOOD, INSTALLATION .

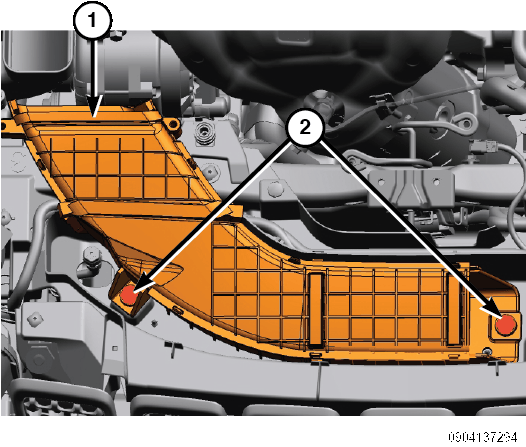

    GC0187108Courtesy of CHRYSLER GROUP, LLC
  7. Install the air intake tube (1) and the two push-pins (2).

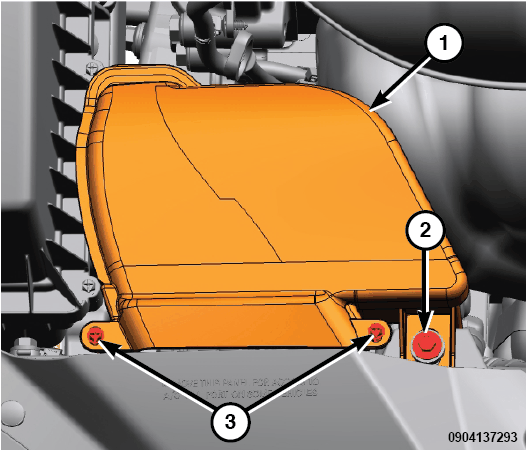

    GC0186592Courtesy of CHRYSLER GROUP, LLC
  8. Install the resonator (1) bolt (2), the two screws (3) and securely tighten.
  9. Install the pressurized coolant bottle. Refer to BOTTLE, PRESSURIZED COOLANT, INSTALLATION .
  10. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
