Radiator, Engine Cooling: Installation: 2.4L

Courtesy of CHRYSLER GROUP, LLC

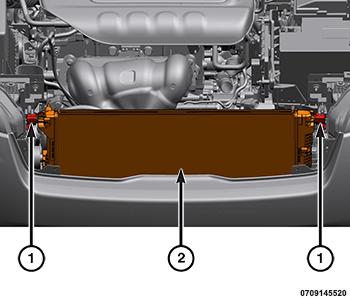

1. Install the radiator (2) into the lower mounts and engage the upper radiator isolators (1) to the mount.

   Courtesy of CHRYSLER GROUP, LLC

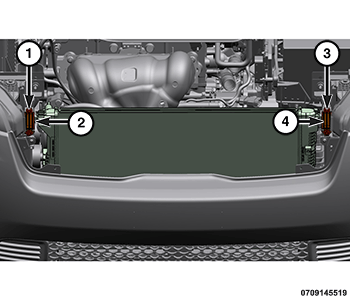

2. Install the upper right side radiator mount cover (4) and securely tighten the bolts (3).
3. Install the upper left side radiator mount cover (2) and securely tighten the bolts (1).

   Courtesy of CHRYSLER GROUP, LLC

4. Install the A/C condenser (1) to the radiator and securely tighten the three bolts (2).

   Courtesy of CHRYSLER GROUP, LLC

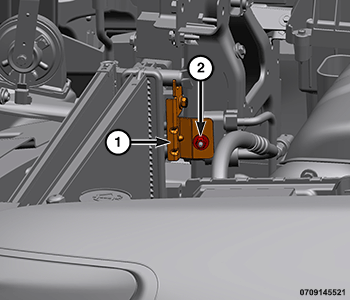

5. Install the nut (2) securing the A/C discharge and liquid line junction block to the bracket (1) and securely tighten.

   Courtesy of CHRYSLER GROUP, LLC

6. Install the service port bracket bolt (1) and securely tighten.

   Courtesy of CHRYSLER GROUP, LLC

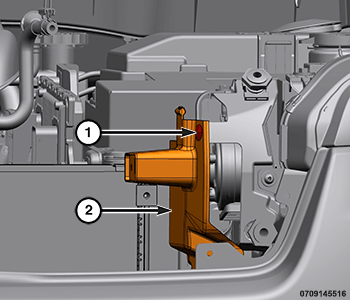

7. Install the left side upper air deflector (2) and the push-pin (1).

   Courtesy of CHRYSLER GROUP, LLC

8. Install the right side upper air deflector (2) and the push-pin (1).

   Courtesy of CHRYSLER GROUP, LLC

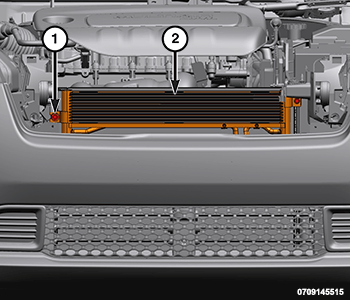

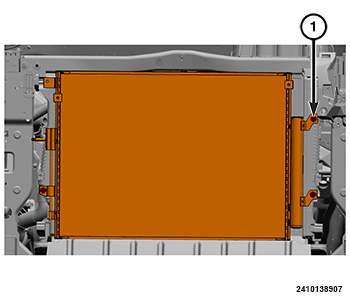

9. Install the transmission cooler and tighten the bolt (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS - 2.4L  .

   Courtesy of CHRYSLER GROUP, LLC

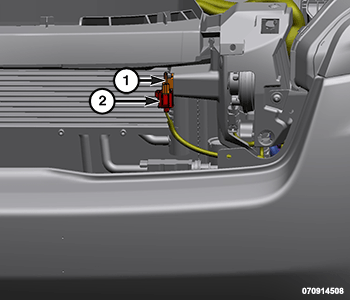

10. Install the ambient air temperature sensor (1) and the push-pin retainer.
11. Connect the ambient air temperature sensor wire harness connector (2).
12. Install the cooling fan. Refer to FAN, COOLING, INSTALLATION .

    Courtesy of CHRYSLER GROUP, LLC

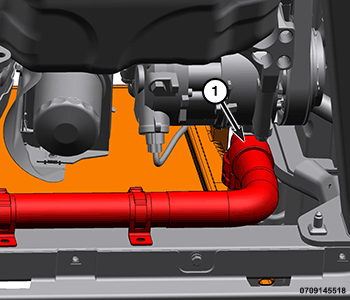

13. Install the lower radiator hose (1) and connect the quick-coupling.

    Courtesy of CHRYSLER GROUP, LLC

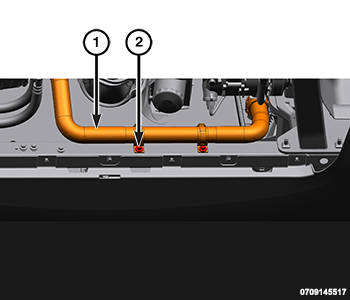

14. Install the bolts (2) securing the lower radiator hose and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS - 2.4L  .
15. Fill the cooling system. Refer to COOLING - STANDARD PROCEDURE .
16. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
17. Run the engine until it reaches normal operating temperature. Check cooling system for correct fluid level. Refer to COOLING - STANDARD PROCEDURE .
