Power Inverter Module

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to 2.0L, 12 VOLT BATTERY DISCONNECT or 3.6L, BATTERY DISCONNECT AND CONNECT or 5.7L, BATTERY DISCONNECT AND CONNECT .
2. Remove the cargo load floor. Refer to LOAD FLOOR, CARGO, REMOVAL AND INSTALLATION .
3. Remove the wire harness connector from the Power Inverter Module (PIM).

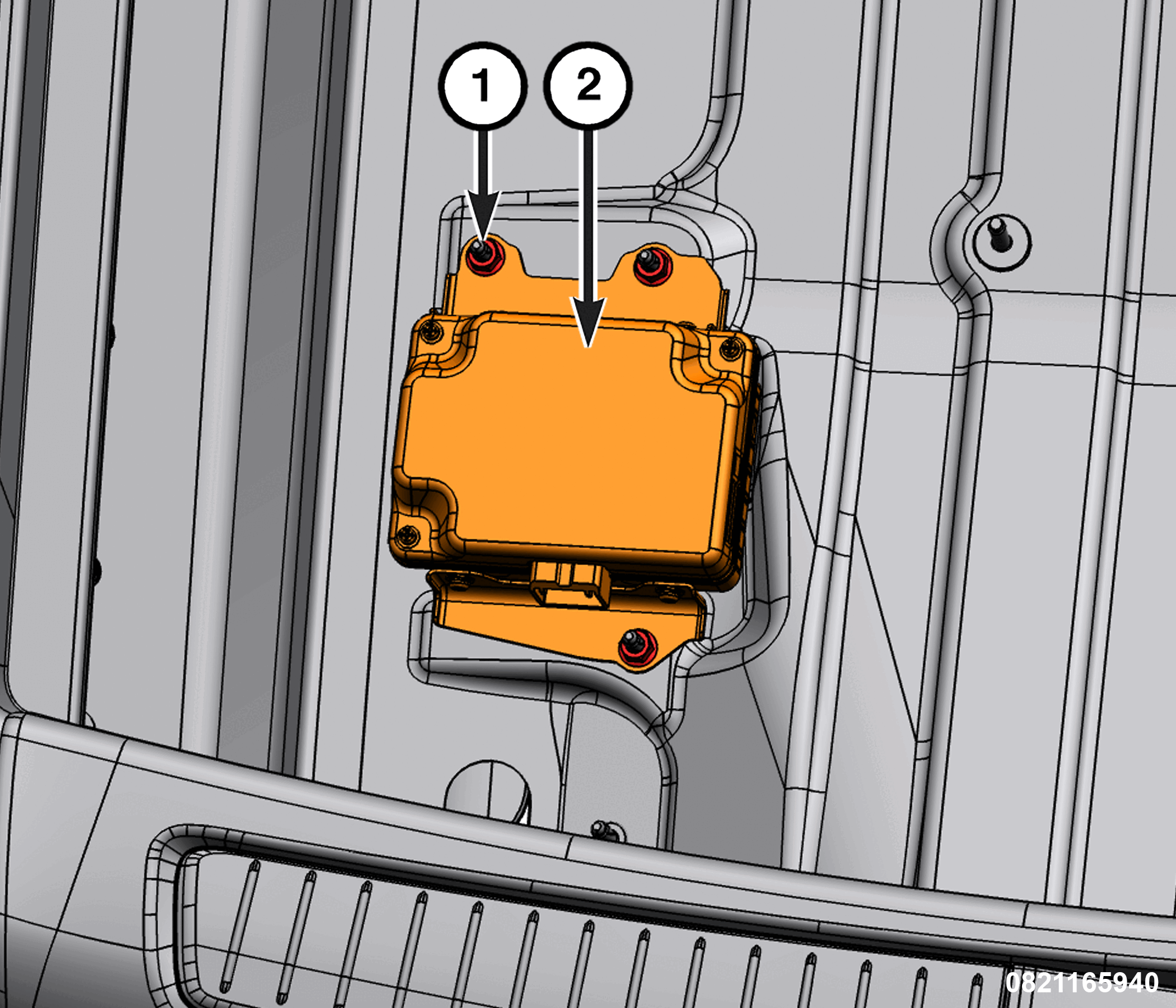

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - Power Inverter Module (PIM)

4. Remove the fasteners securing the PIM and remove the module from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Tighten the fasteners securely.
