Wireless Charging Pad Module

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to 2.0L, 12 VOLT BATTERY DISCONNECT or 3.6L, BATTERY DISCONNECT AND CONNECT or 5.7L, BATTERY DISCONNECT AND CONNECT .
2. Remove the storage bin from the front of the center console. Refer to BIN, STORAGE, REMOVAL AND INSTALLATION .
3. Disconnect the wire harness connector from the wireless charging pad module.

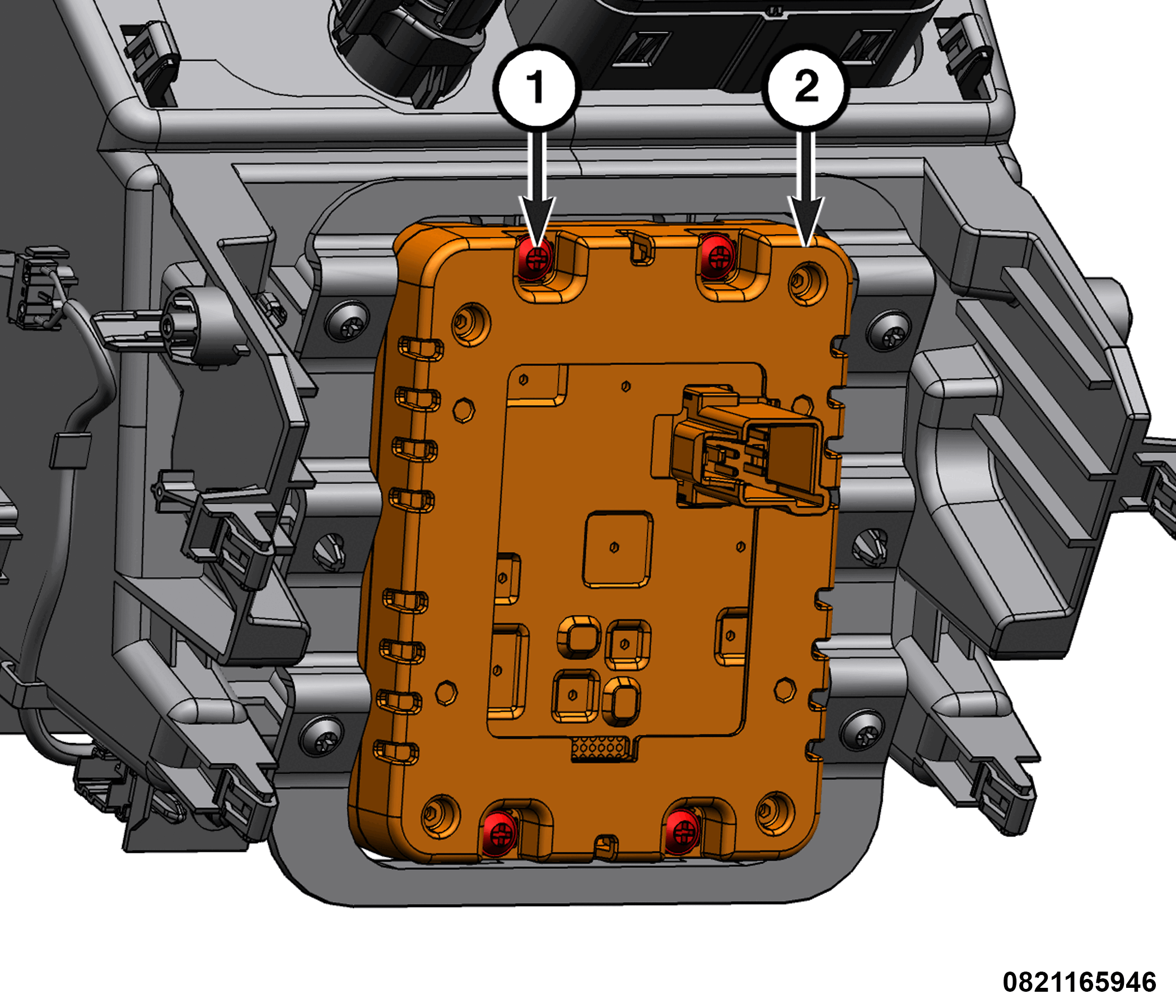

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - Wireless Charging Pad Module

4. Remove the fasteners securing the wireless pad charging module and remove the module from the storage bin.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Tighten the fasteners securely.
