Left Hand Drive: Notes

REMOVAL

WARNING:

Before servicing the steering column the airbag system must be disarmed. Failure to do so may result in accidental deployment of the airbag and possible personal injury.

WARNING:

When an undeployed airbag module is to be removed from the vehicle, first disconnect the battery ground cable and isolate it. Allow the system capacitor to discharge for a minimum of two minutes before starting any removal.

CAUTION:

Anytime the Steering Column Control Module (SCCM) is mounted on the steering column the steering shaft must be kept from turning or else SCCM damage will occur. Some vehicles do not have an internal lock mechanisms, so the steering column shaft must be preventing from rotating through use of a suitable tool.

  1. Remove the steering wheel. Refer to WHEEL, STEERING, REMOVAL AND INSTALLATION .
  2. Remove and DISCARD  the intermediate shaft pinch bolt.

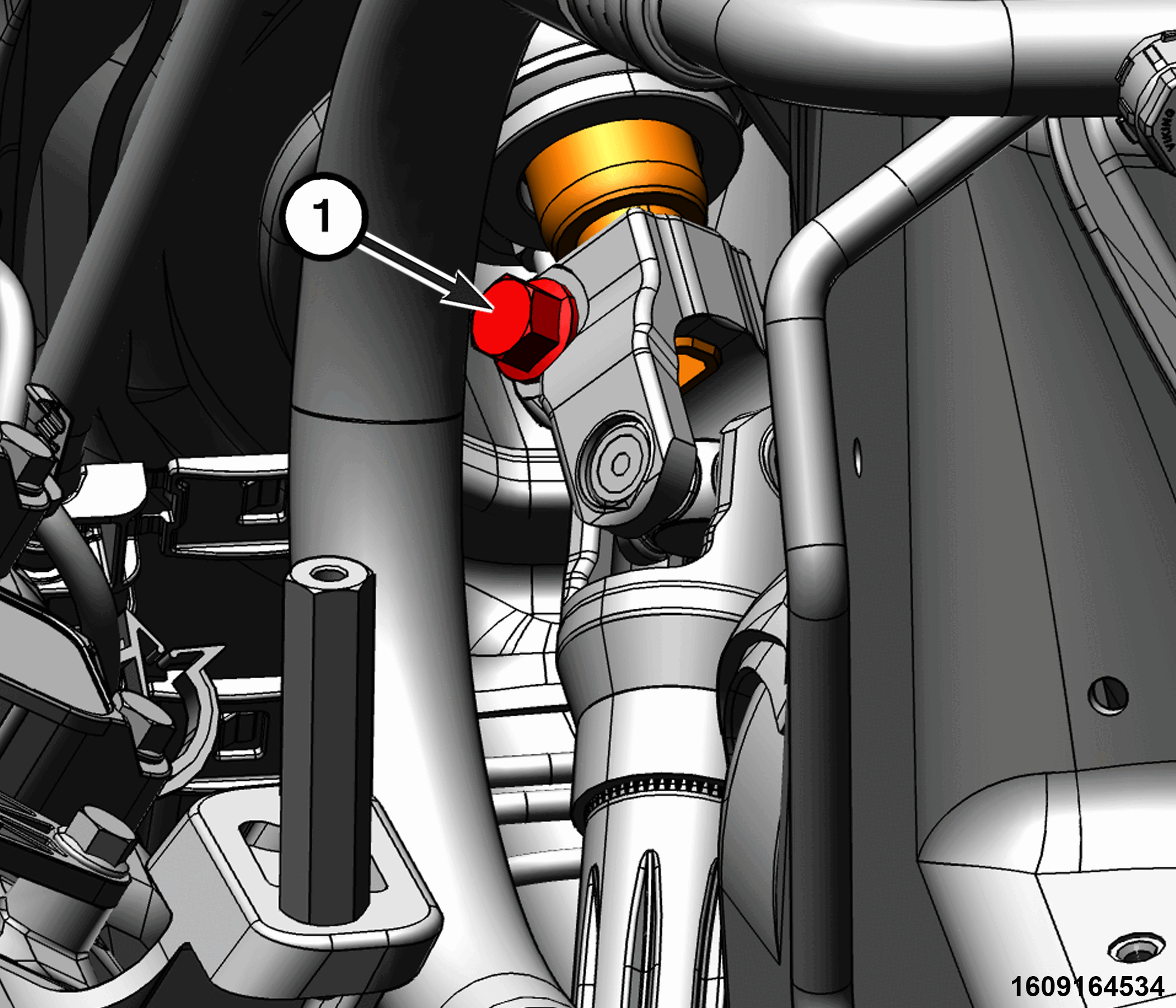

    GC0201196Courtesy of CHRYSLER GROUP, LLC
    1 - Intermediate Shaft Pinch Bolt
  3. Disengage the intermediate shaft from the steering column shaft.
  4. Remove the silencer panel. Refer to PANEL, SILENCER, REMOVAL AND INSTALLATION .
  5. Remove the interior Power Distribution Center (PDC). Refer to CENTER, POWER DISTRIBUTION (PDC), REMOVAL AND INSTALLATION .
  6. Remove the steering column shroud. Refer to SHROUD, STEERING COLUMN, REMOVAL AND INSTALLATION .
  7. Remove the gap hider. Refer to GAP HIDER, STEERING COLUMN SHROUD, REMOVAL AND INSTALLATION .
  8. Remove the Steering Column Control Module (SCCM). Refer to MODULE, STEERING COLUMN CONTROL (SCCM), REMOVAL AND INSTALLATION .
  9. If equipped, disconnect the steering column motor wire harness connectors.

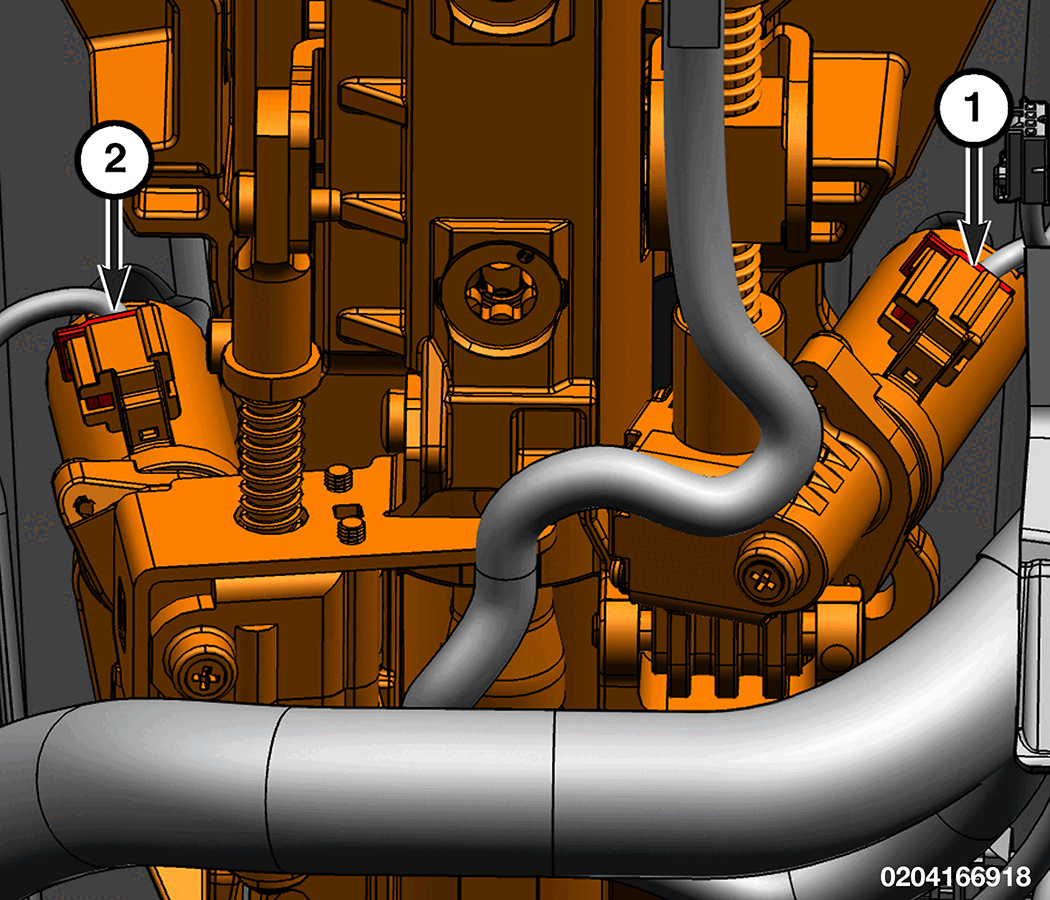

    GC0201425Courtesy of CHRYSLER GROUP, LLC
    1 - Wire Harness Connector
    2 - Wire Harness Connector
  10. Disconnect the wire harness routing clip.

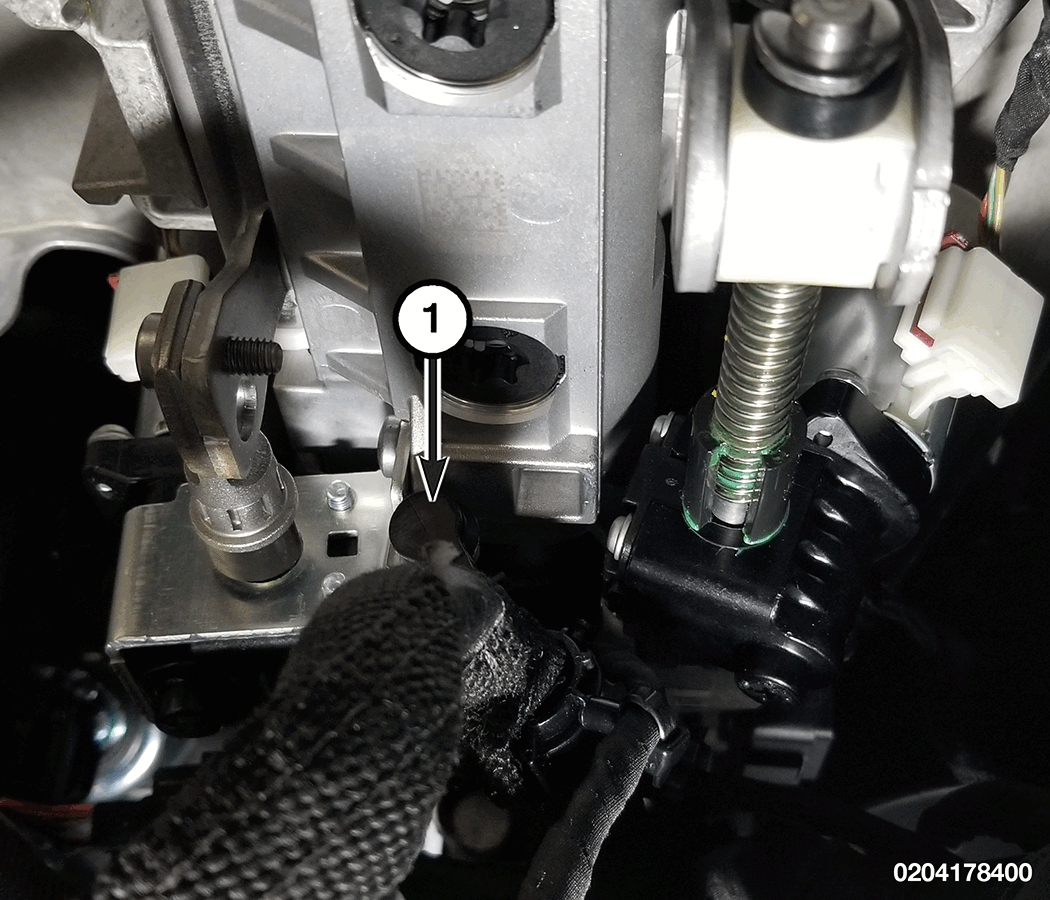

    GC0201824Courtesy of CHRYSLER GROUP, LLC
    1 - Wire Harness Routing Clip
  11. Disconnect the Comfort Steering Wheel Surface Module (CSWSM) wire harness connector.
    GC0200592Courtesy of CHRYSLER GROUP, LLC
    1 - Wire Harness Connector
  12. Disengage the wire harness routing clip.

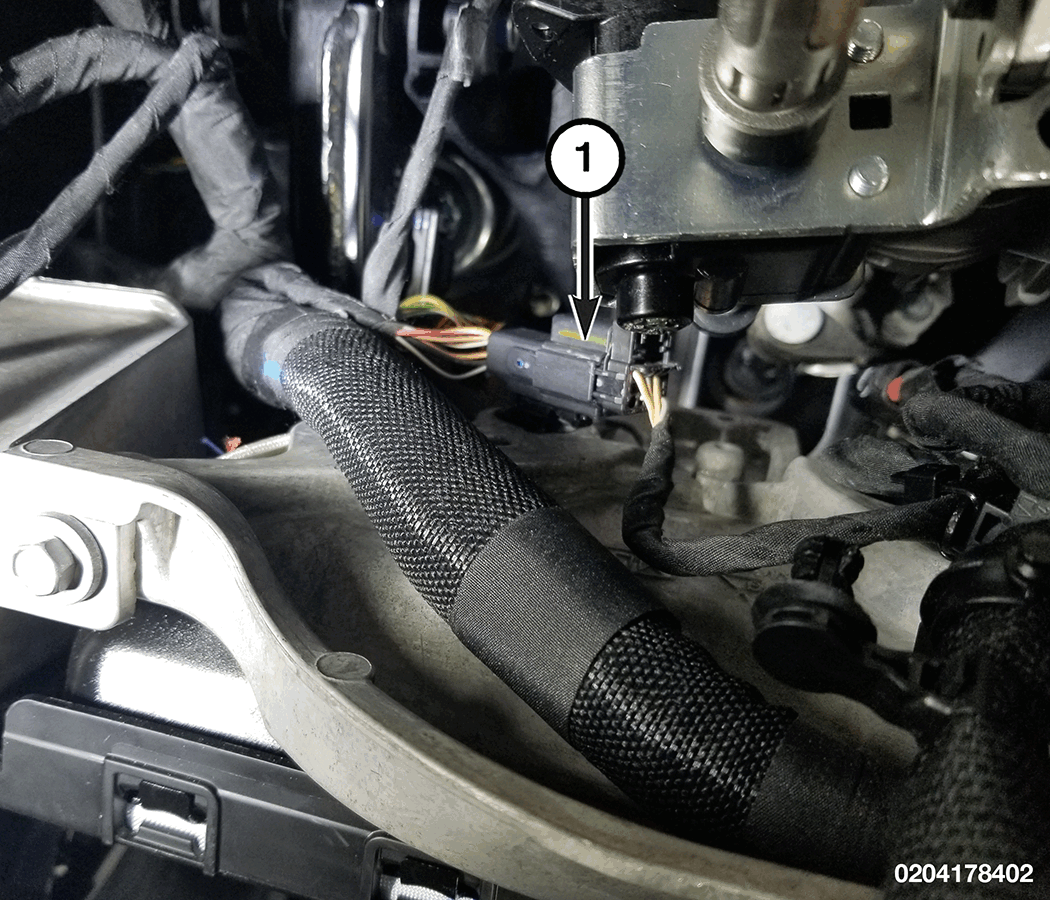

    GC0201560Courtesy of CHRYSLER GROUP, LLC
    1 - Wire Harness Routing Clip
  13. Remove the steering column nuts and lower the steering column.

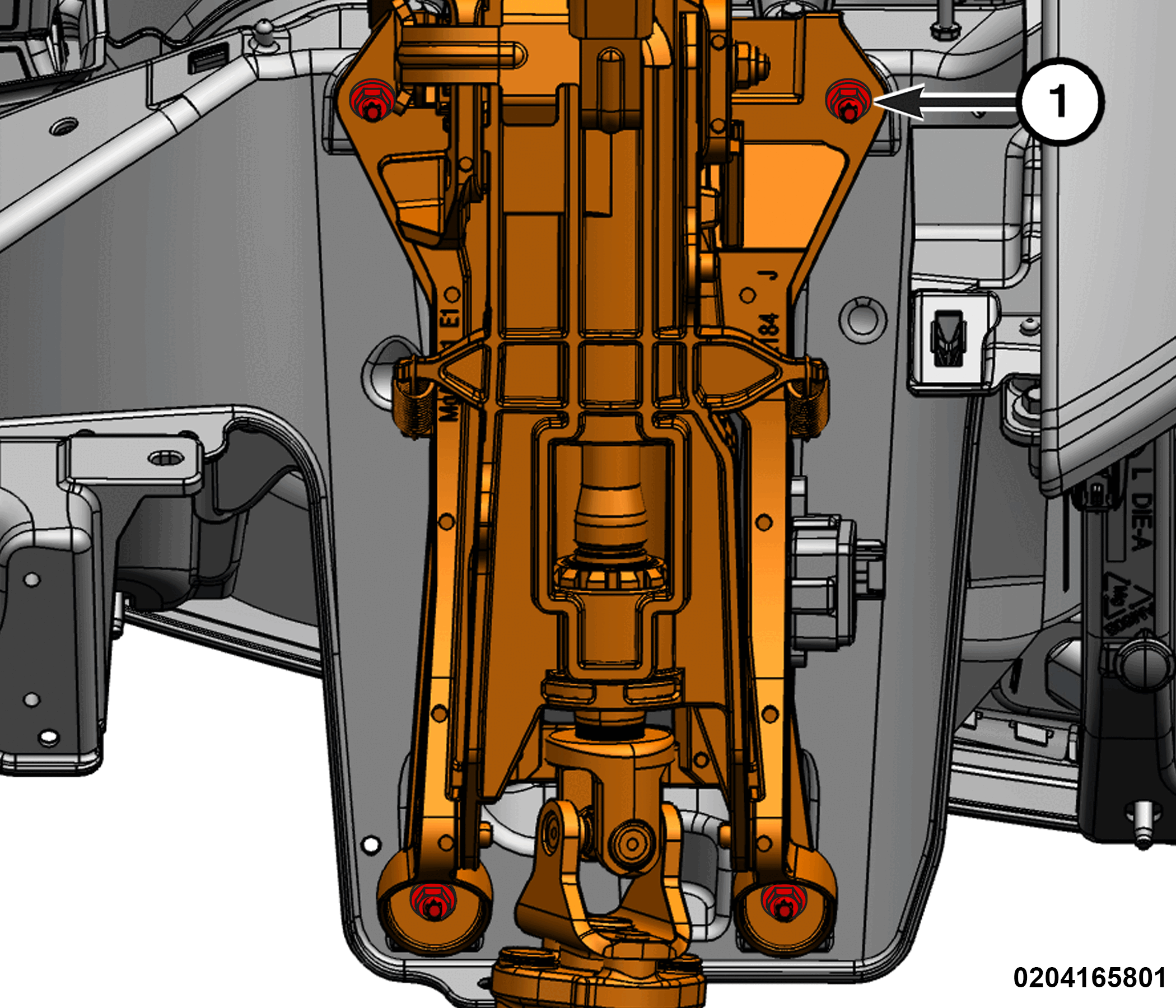

    GC0201383Courtesy of CHRYSLER GROUP, LLC
    1 - Steering Column Nuts
  14. If equipped, disconnect the Electronic Steering Lock (ESL) module wire harness connector.

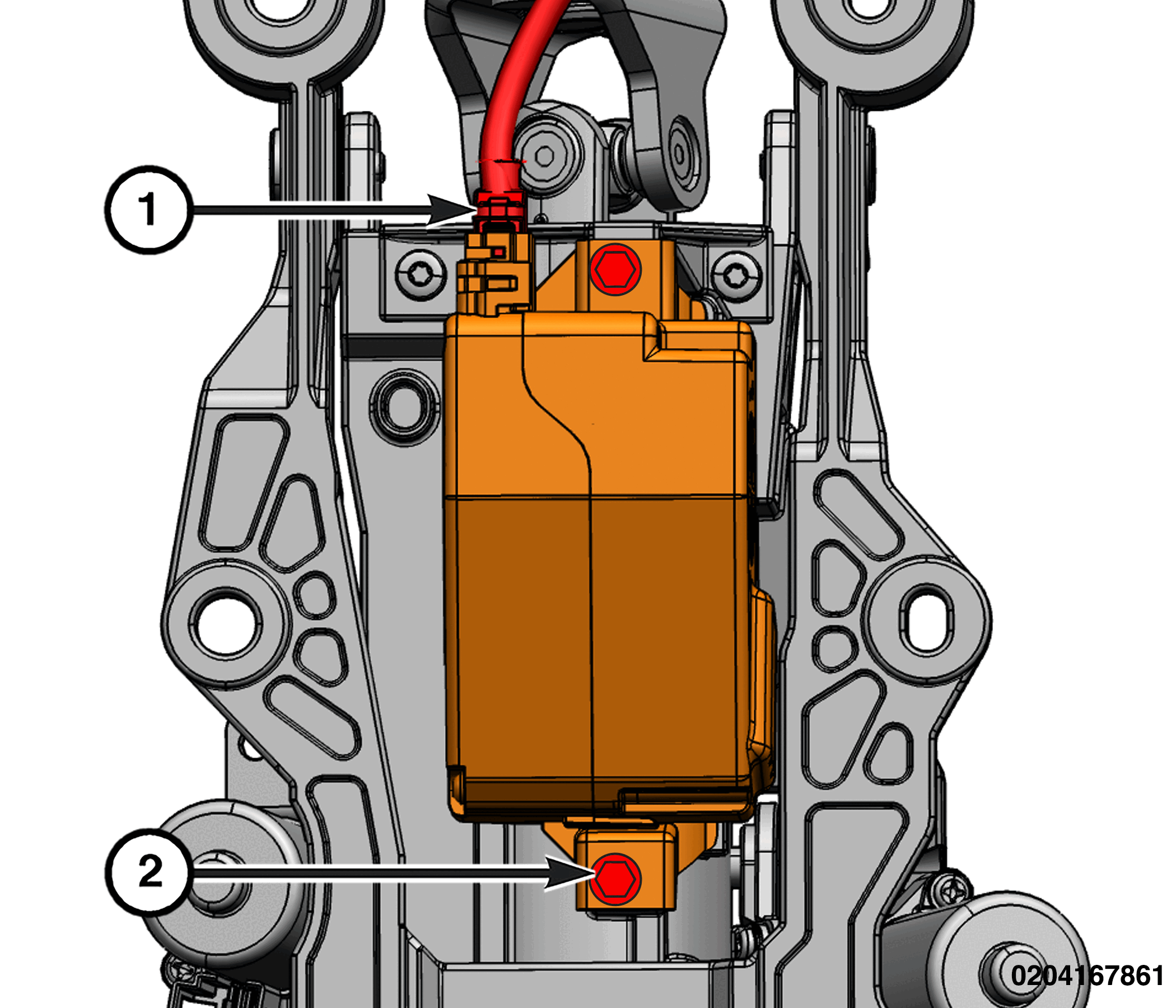

    GC0201682Courtesy of CHRYSLER GROUP, LLC
    1 - Wire Harness Connector
    2 - Electronic Steering Lock (ESL) Module Bolts
  15. Pull the steering column shaft through the bulkhead pass through and remove the steering column.
  16. Remove the CSWSM screws and remove the CSWSM from the steering column.

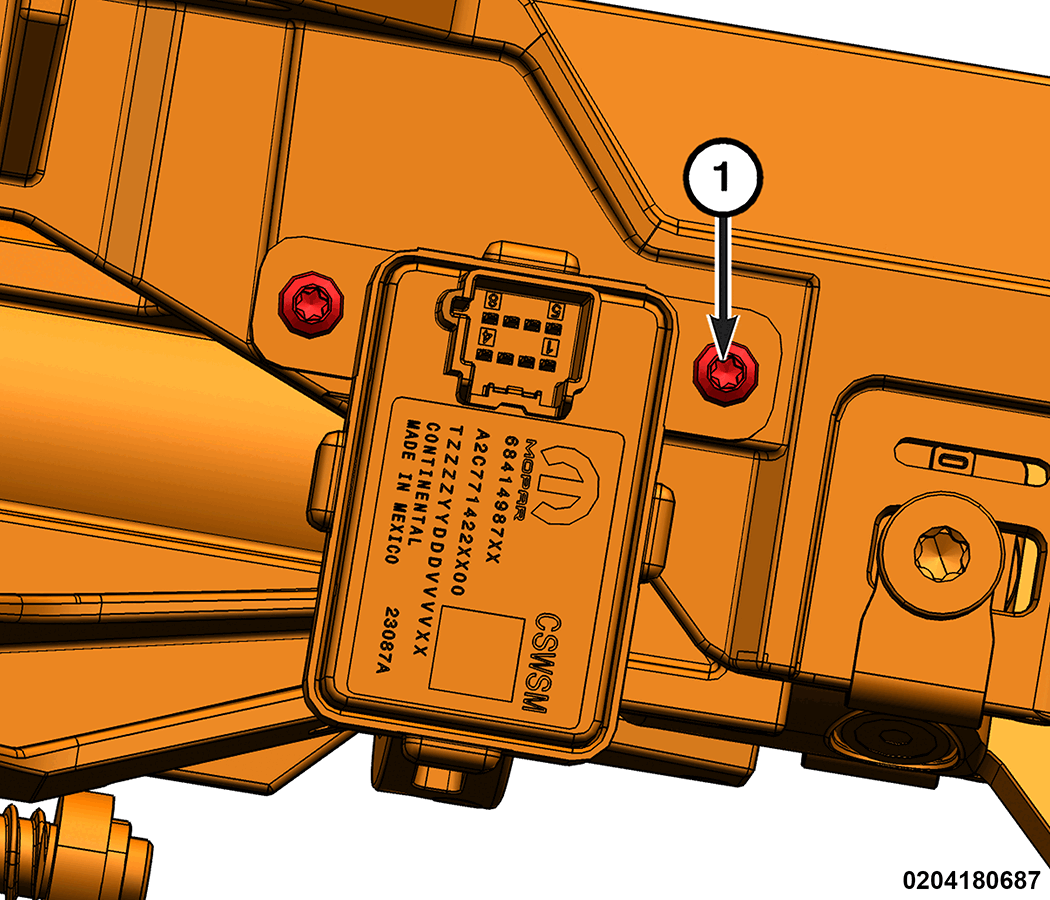

    GC0201609Courtesy of CHRYSLER GROUP, LLC
    1 - Comfort Steering Wheel Surface Module (CSWSM) Screws
  17. If equipped, remove the ESL module. Refer to MODULE, ELECTRONIC STEERING LOCK (ESL), REMOVAL AND INSTALLATION .

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
