Engine Controls - Pin Voltage Charts: Introduction

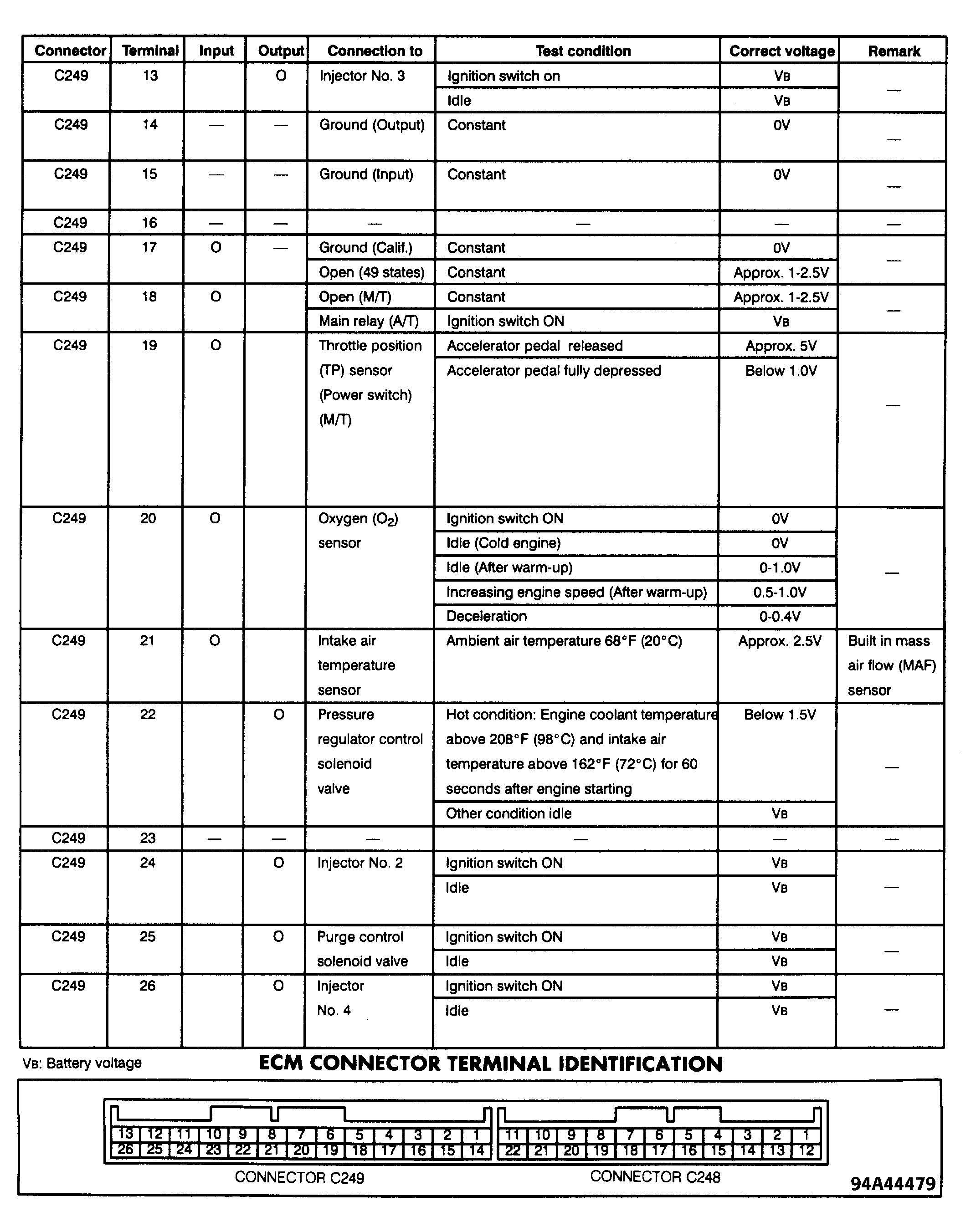

Pin voltage charts are supplied to reduce diagnostic time. By checking pin voltages at the Electronic Control Module (ECM), it is possible to determine if the ECM is receiving and transmitting proper voltage signals. Charts may also help determine if ECM harness has shorts or opens. For ECM connector terminal identification, see illustration. See Figure .
