Service Point Locations

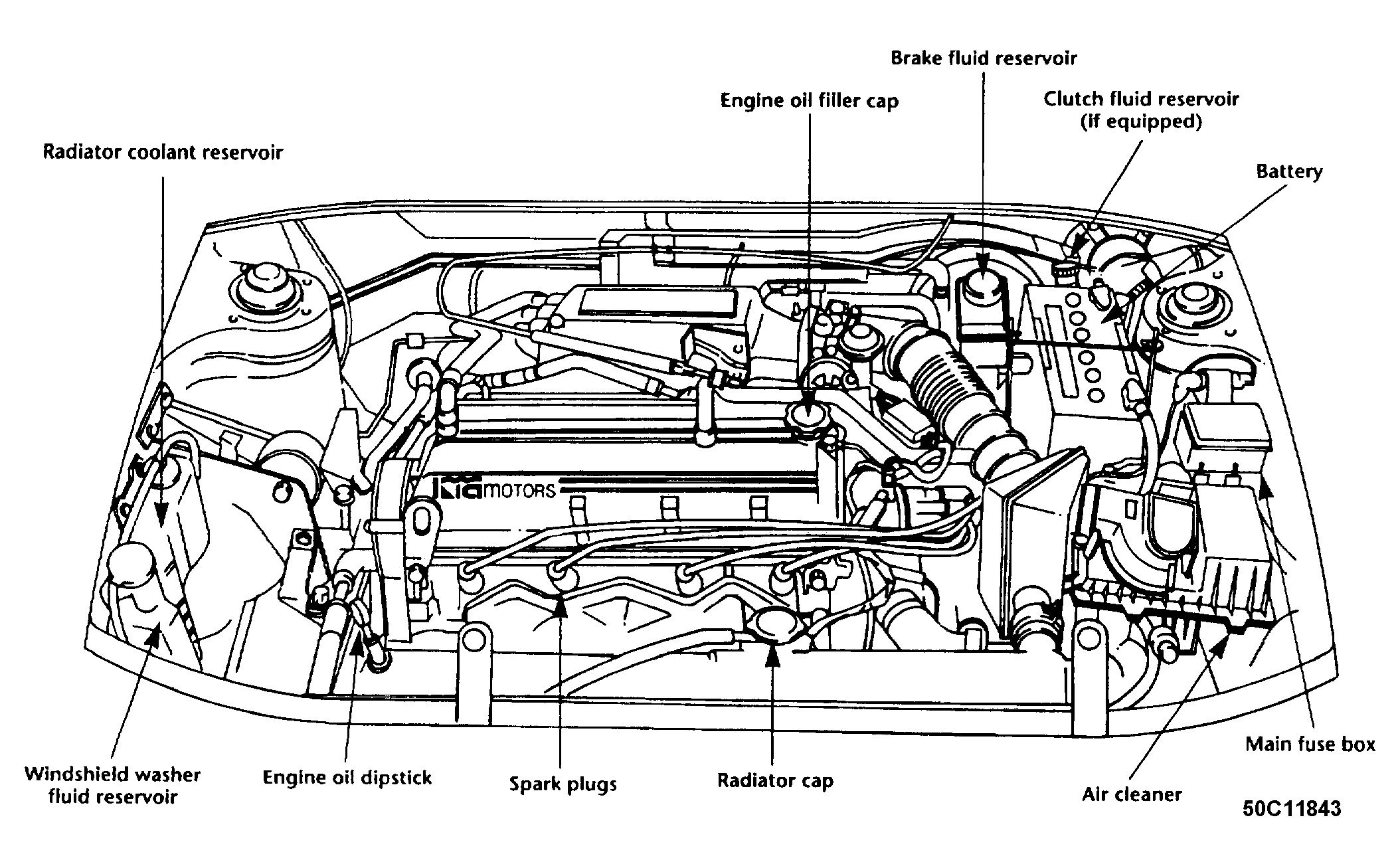

Fig 1: Service Point Locations (Typical) - 1994

Courtesy of KIA MOTOR CO.

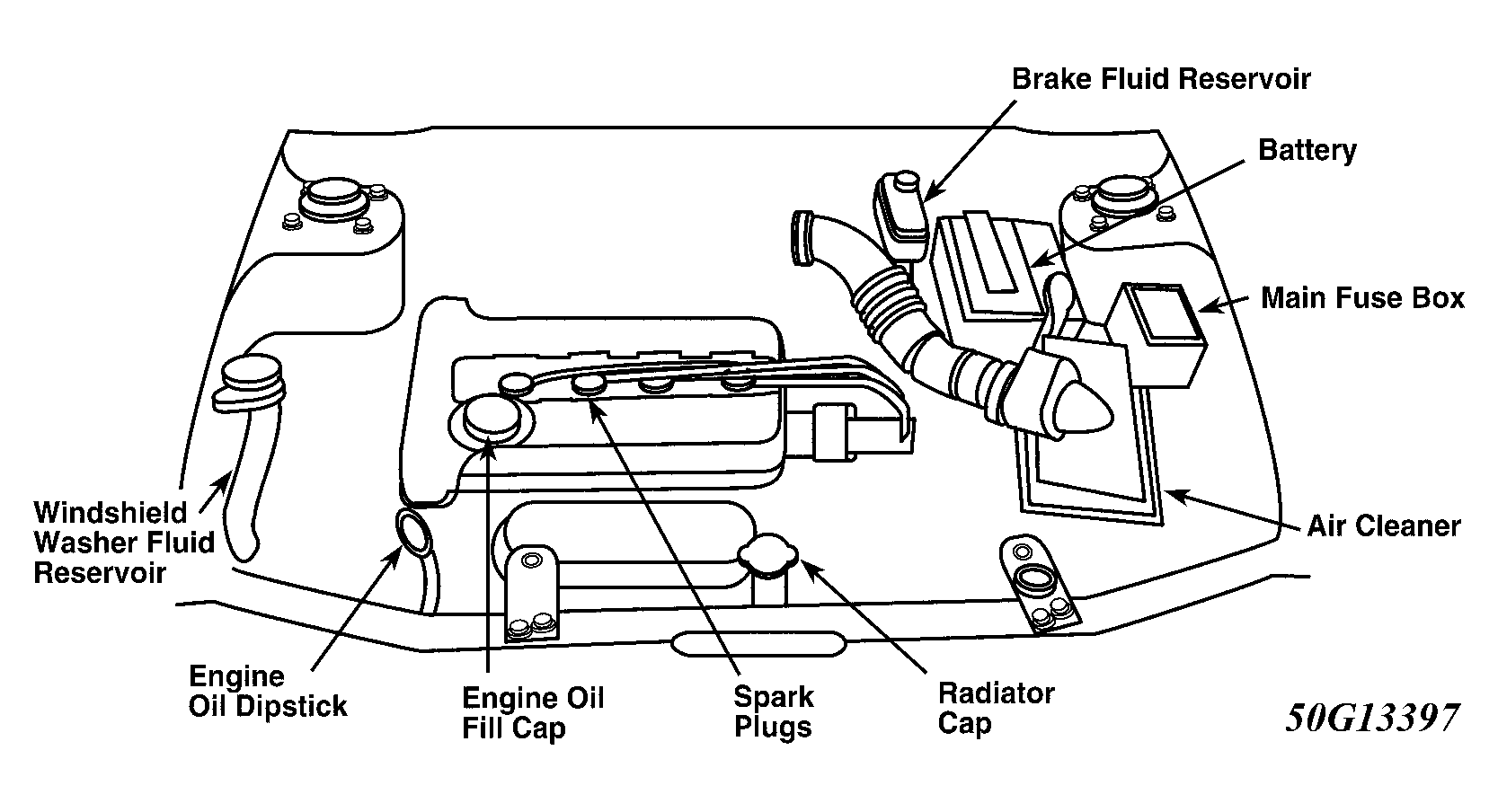

Fig 2: Service Point Locations (1.6L SOHC) - 1995

Courtesy of KIA MOTOR CO.

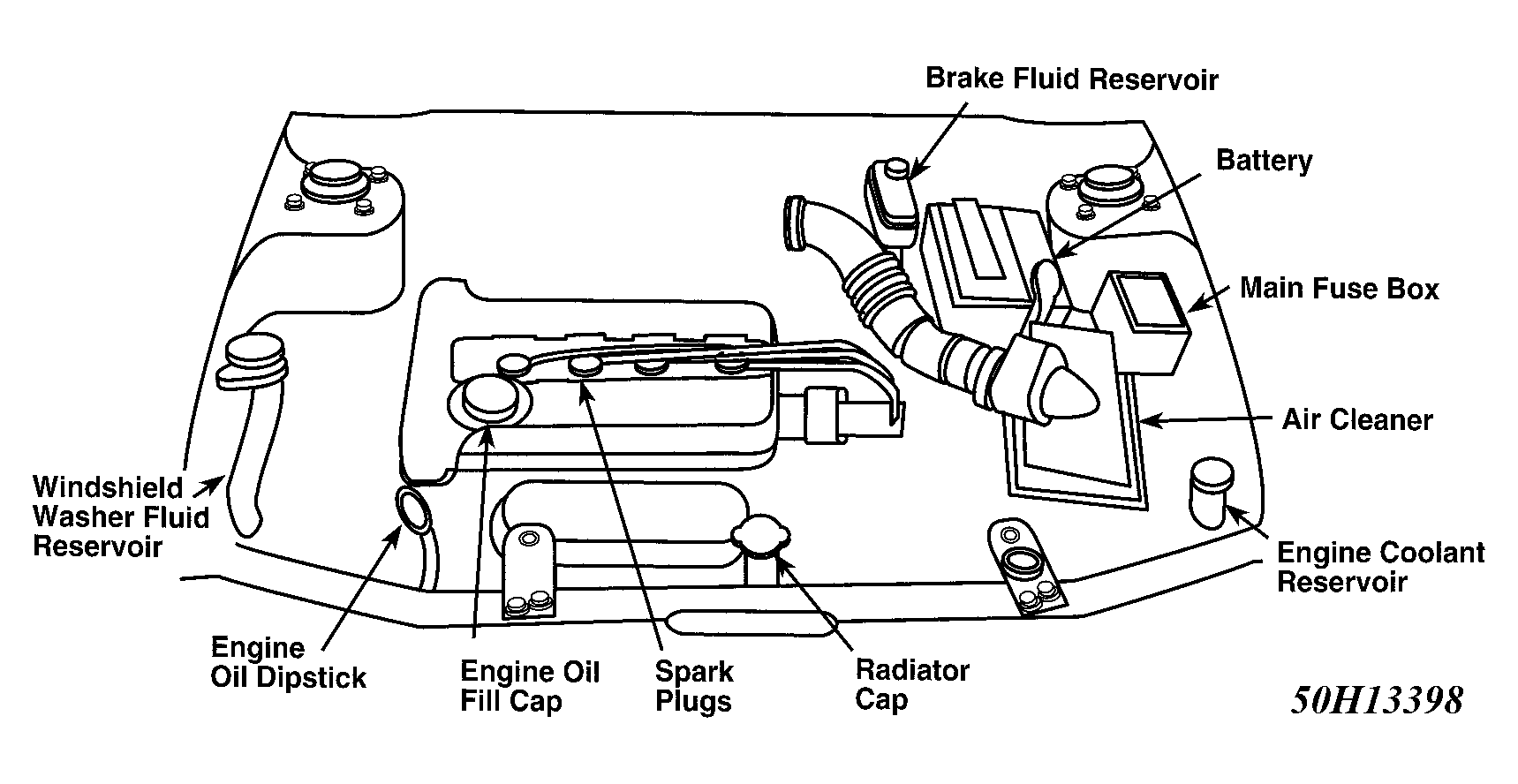

Fig 3: Service Point Locations (1.6L DOHC) - 1995

Courtesy of KIA MOTOR CO.

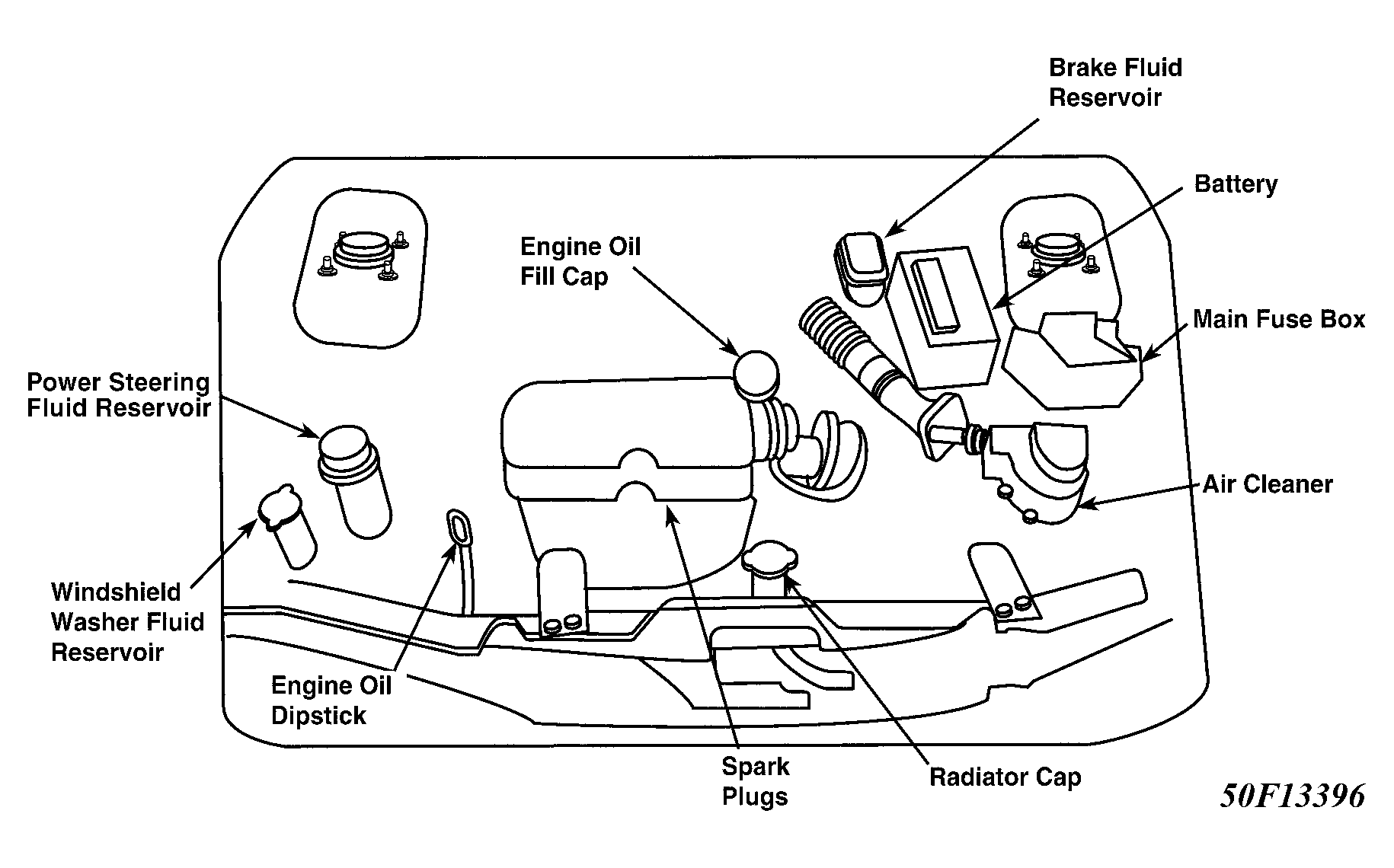

Fig 4: Service Point Locations (1.8L Shown/1.6L Similar) - 1996

Courtesy of KIA MOTOR CO.

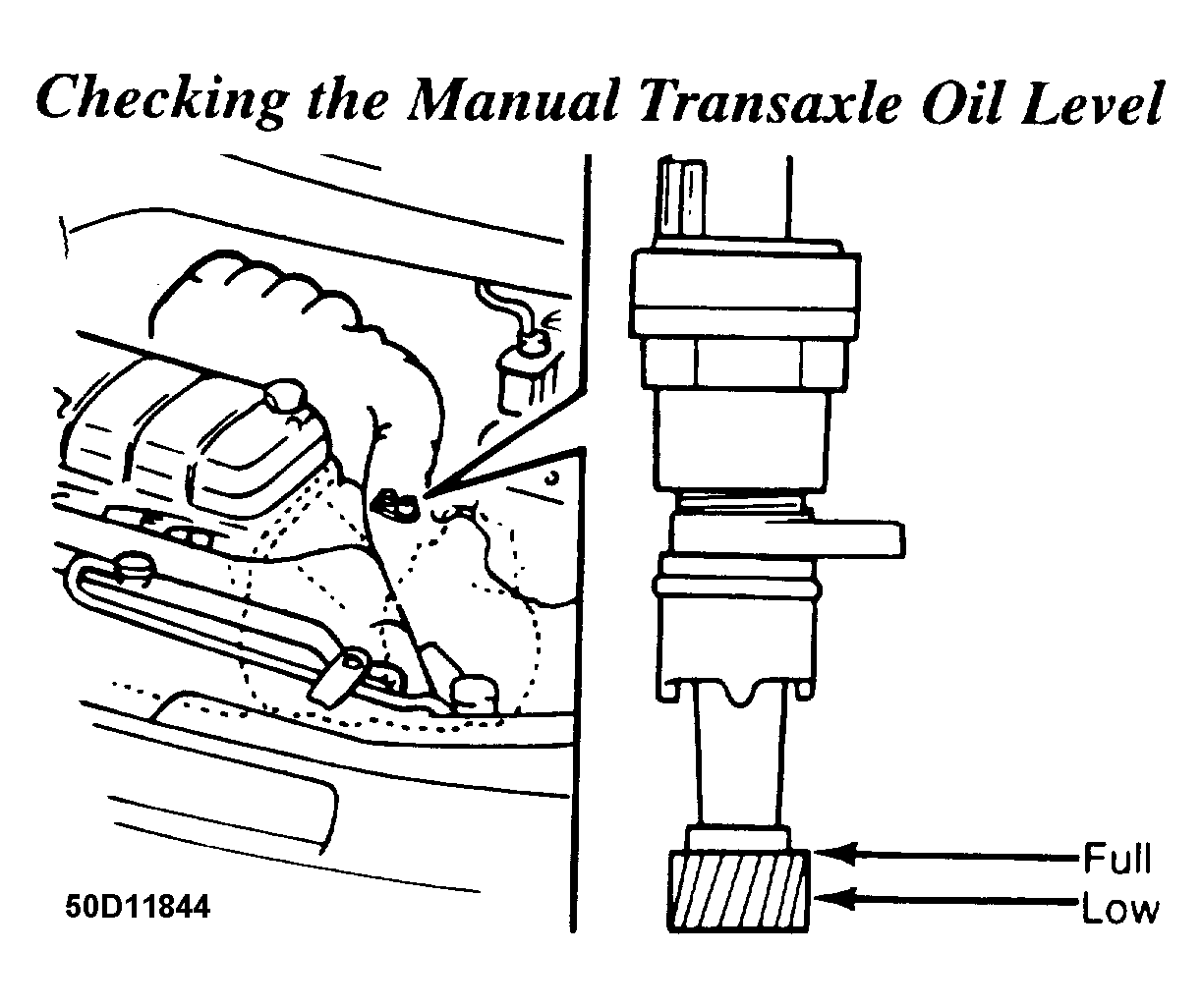

Fig 5: Checking Manual Transaxle Fluid Level

Courtesy of KIA MOTOR CO.

NOTE: Removal of Speedometer gear required to check oil level.
