Power Mirror Switch

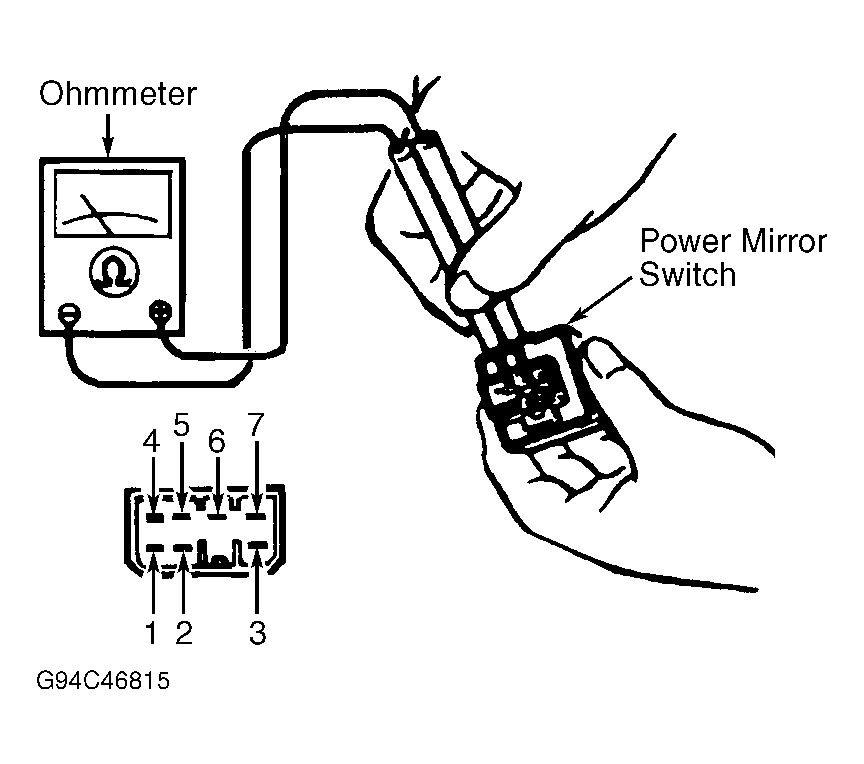

Power mirror switch is located left of steering column, in dash panel. Disconnect power mirror switch connector. With power mirror switch in specified position, ensure continuity exists between specified terminals. See POWER MIRROR SWITCH TEST (SEPHIA & SPECTRA) or POWER MIRROR SWITCH TEST (SPORTAGE) table. See Fig 1 or Fig 2 . Replace switch if continuity is not as specified.
POWER MIRROR SWITCH TEST (SEPHIA & SPECTRA)
| Application & Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Driver Switch | ||
| Up | 3 & 4; 2 & 6 | |
| Down | 2 & 4; 3 & 6 | |
| Left | 3 & 6; 2 & 7 | |
| Right | 2 & 6; 3 & 7 | |
| Passenger Switch | ||
| Up | 2 & 5; 3 & 4 | |
| Down | 2 & 4; 3 & 5 | |
| Left | 1 & 2; 3 & 5 | |
| Right | 1 & 3; 2 & 5 | |
POWER MIRROR SWITCH TEST (SPORTAGE)
| Application & Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Driver Switch | ||
| Up | 3 & 4; 2 & 6 | |
| Down | 2 & 4; 3 & 6 | |
| Left | 2 & 6; 3 & 7 | |
| Right | 2 & 7; 3 & 6 | |
| Passenger Switch | ||
| Up | 3 & 6; 2 & 6 | |
| Down | 2 & 5; 3 & 6 | |
| Left | 1 & 3; 2 & 6 | |
| Right | 1 & 2; 3 & 6 | |
