Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module | Left side of engine compartment. |

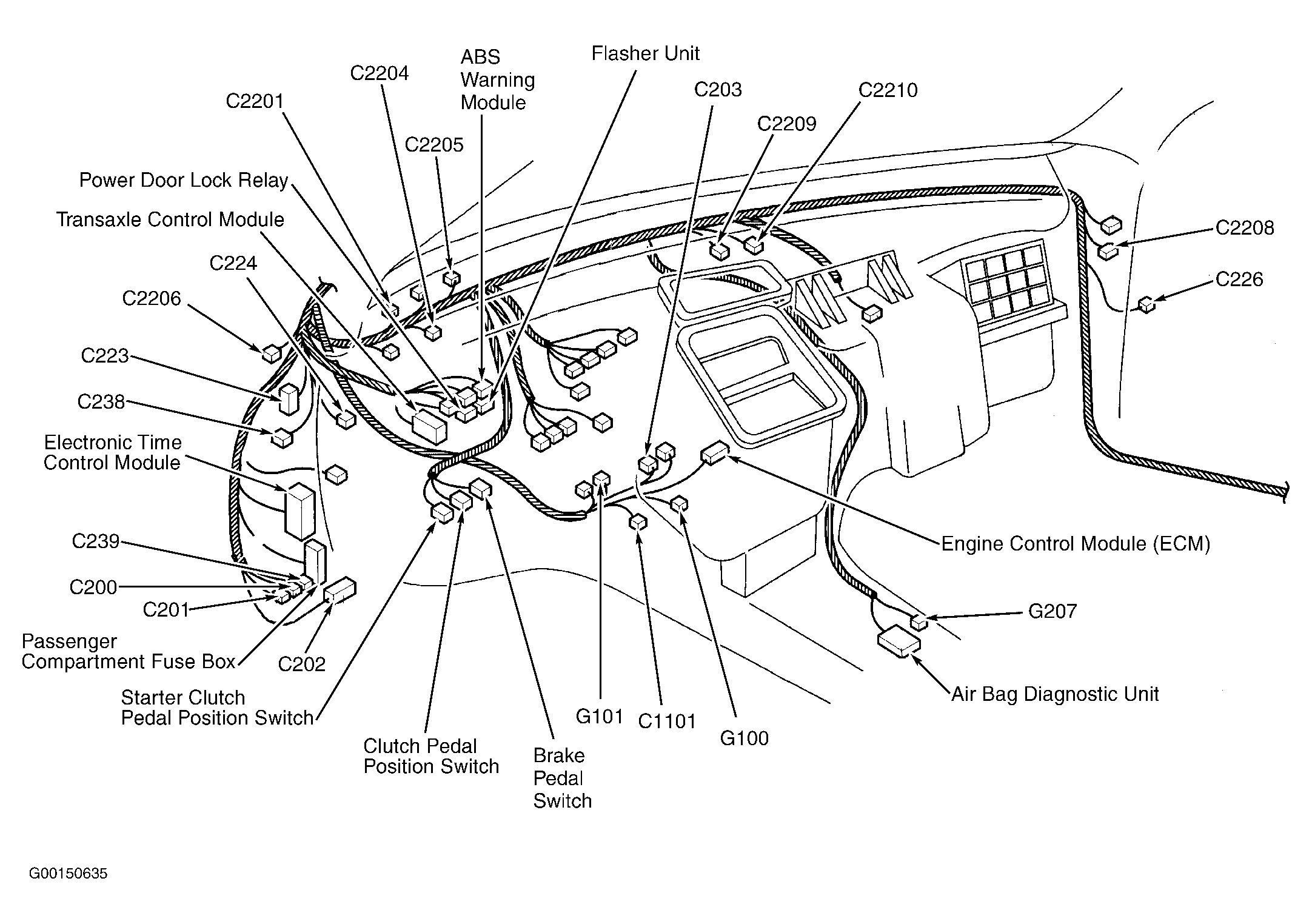

| ABS Warning Module | Behind left side of dash. See Figure . |
| Air Bag Diagnostic Unit | Below center of dash. See Figure . |

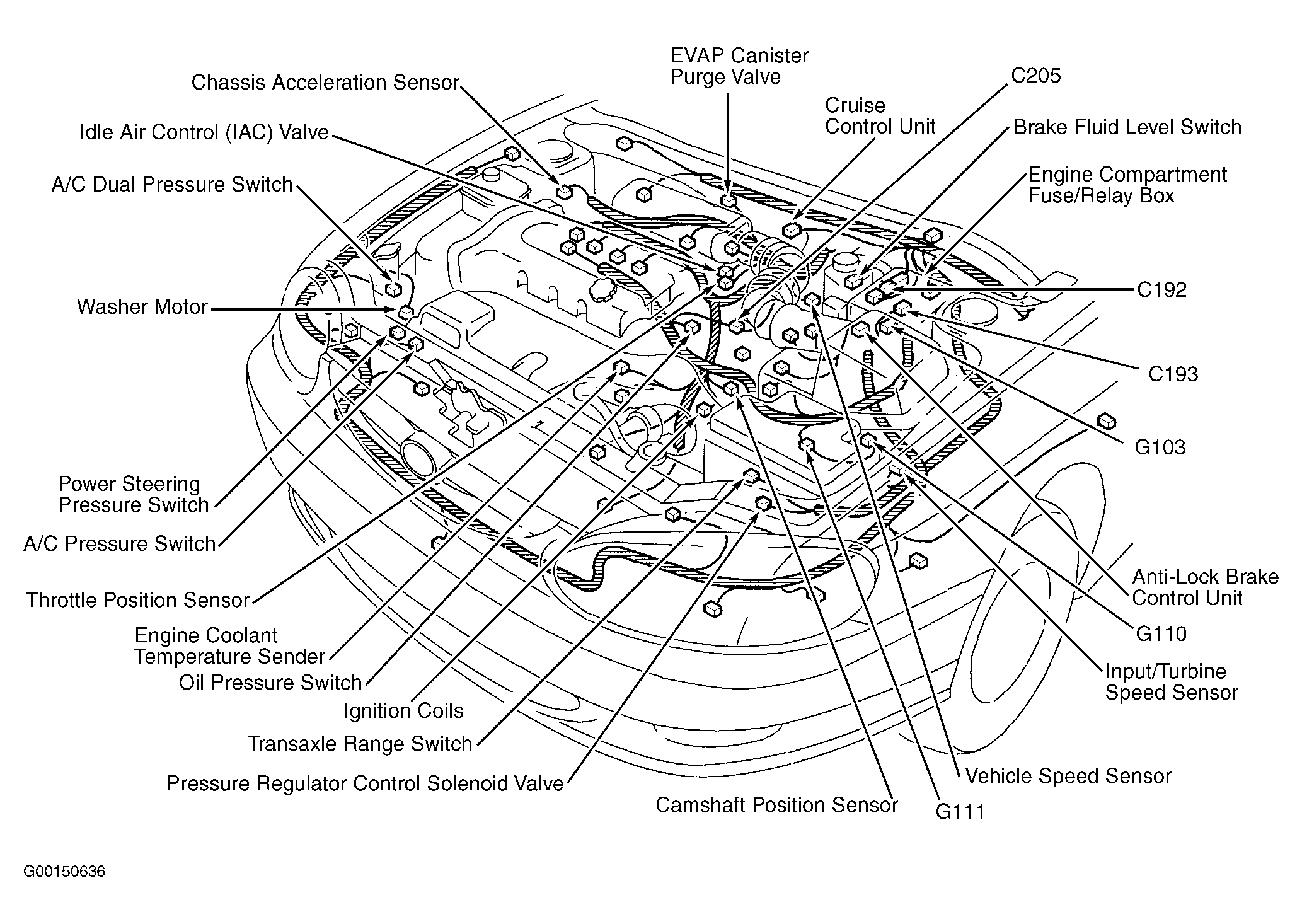

| Anti-Lock Brake Control Unit | Left side of engine compartment. See Figure . |
| Cruise Control Unit | Right rear of engine compartment. See Figure . |
| Electronic Time Control Module | Below left side of dash. See Figure . |
| Engine Control Module (ECM) | Below right center of dash. See Figure . |
| Flasher Module | Below left side of dash. |
| Flasher Unit | Behind left side of dash. See Figure . |
| Fuel Tank Unit | Below rear seat. |
| Power Mirror Controller | Left side of dash. |
| Transaxle Control Module | Behind left side of dash. See Figure . |
