Connector Identification

NOTE: Connector views outlined with double lines indicate male connector view. A single line outline indicates female connector view. See Fig 1 -Fig 15 .

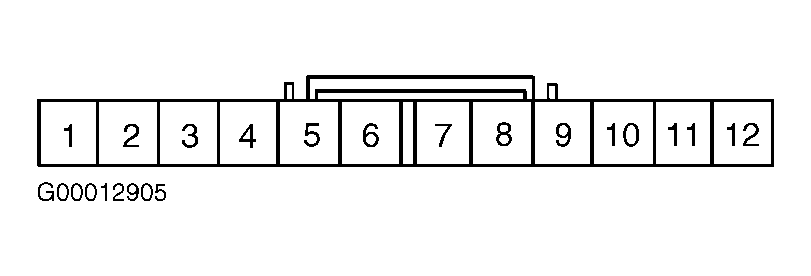

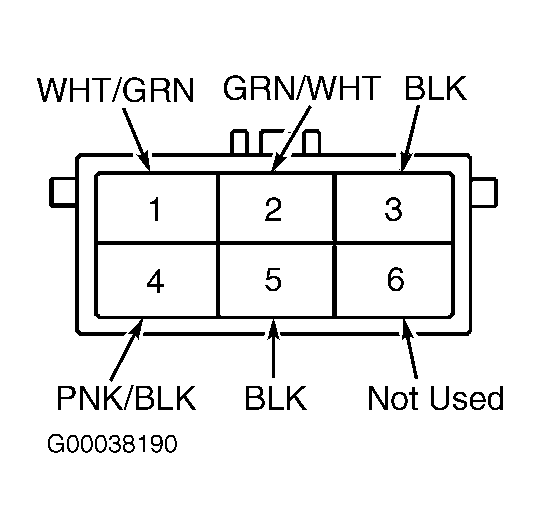

Fig 1: Identifying A/C Switch harness connector terminals

Courtesy of KIA MOTORS AMERICA, INC.

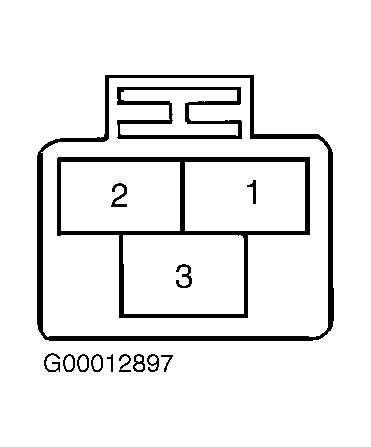

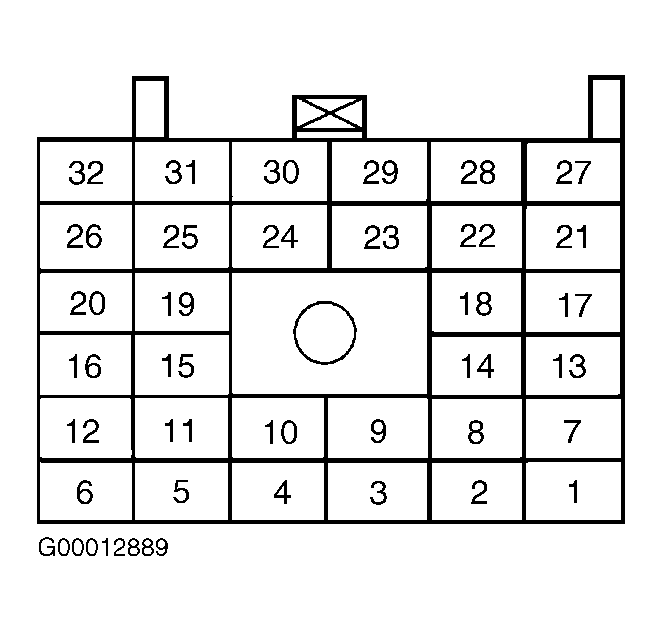

Fig 2: Identifying Chassis Acceleration Sensor (CAS) & Crankshaft Position (CKP) Sensor harness connector terminals

Courtesy of KIA MOTORS AMERICA, INC.

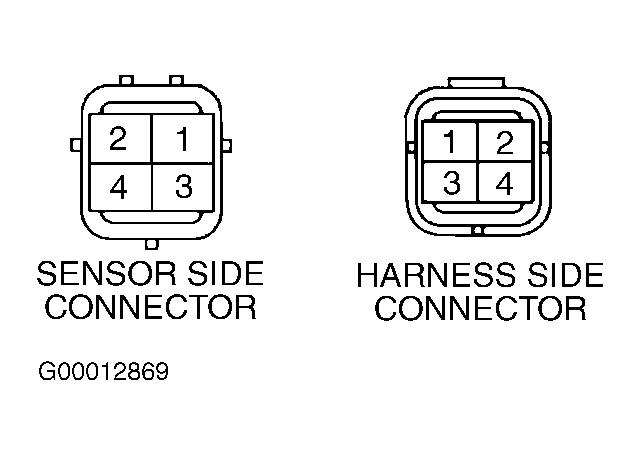

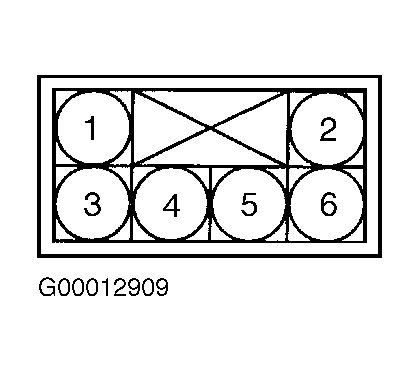

Fig 3: Identifying Camshaft Position (CMP) Sensor harness connector terminals

Courtesy of KIA MOTORS AMERICA, INC.

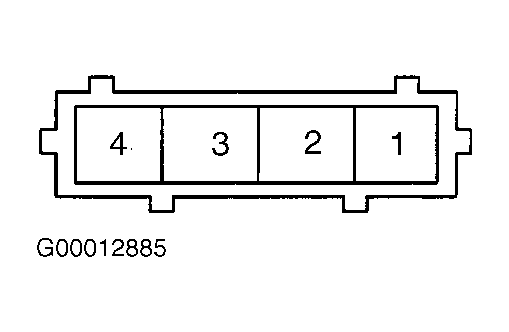

Fig 4: Identifying Engine Compartment Fuse/Relay Box Connector JB02 Terminals

Courtesy of KIA MOTORS AMERICA, INC.

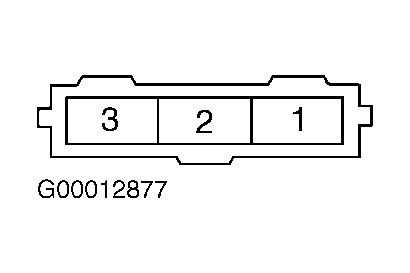

Fig 5: Identifying Engine Compartment Fuse/Relay Box Connector JB01 Terminals

Courtesy of KIA MOTORS AMERICA, INC.

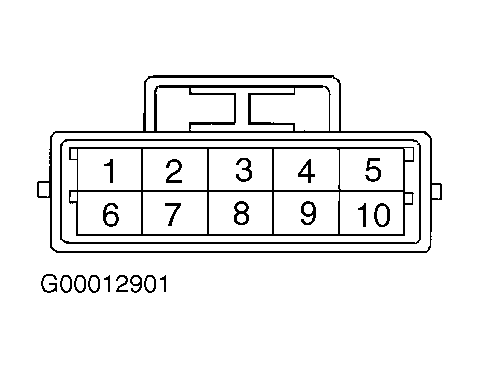

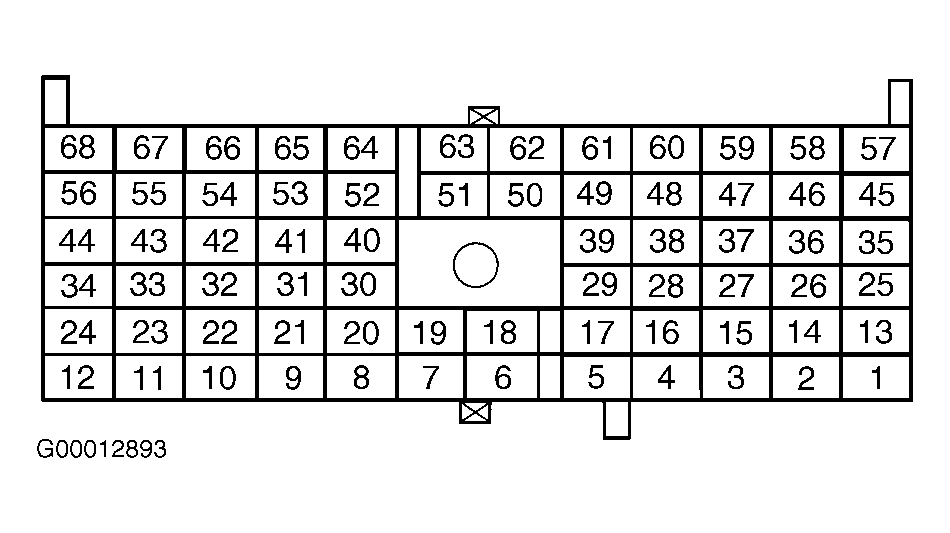

Fig 6: Identifying Engine Control Module (ECM) Connector & Transaxle Control Module (TCM) harness connector terminals

Courtesy of KIA MOTORS AMERICA, INC.

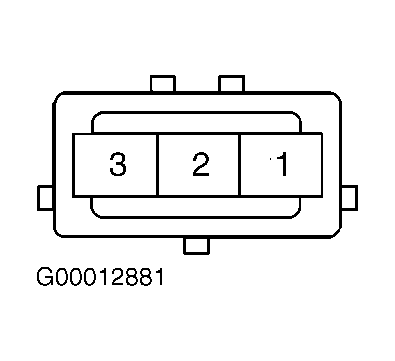

Fig 7: Identifying Fuel Tank Connector B02 Terminals

Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Identifying Heated Oxygen Sensor (HO2S) harness connector terminals - Front & Rear

Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Identifying Idle Air Control (IAC) Valve Terminals

Courtesy of KIA MOTORS AMERICA, INC.

Fig 10: Identifying Instrument Cluster Connector C01 Terminals

Courtesy of KIA MOTORS AMERICA, INC.

Fig 11: Identifying Intermediate Connector X-11 Terminals

Courtesy of KIA MOTORS AMERICA, INC.

Fig 12: Identifying Mass Airflow (MAF) Sensor harness connector terminals

Courtesy of KIA MOTORS AMERICA, INC.

Fig 13: Identifying Throttle Position (TP) Sensor harness connector terminals

Courtesy of KIA MOTORS AMERICA, INC.

Fig 14: Identifying Vehicle Speed Sensor (VSS) Connector (A/T) Terminals

Courtesy of KIA MOTORS AMERICA, INC.

Fig 15: Identifying Vehicle Speed Sensor (VSS) harness connector terminals (M/T)

Courtesy of KIA MOTORS AMERICA, INC.
