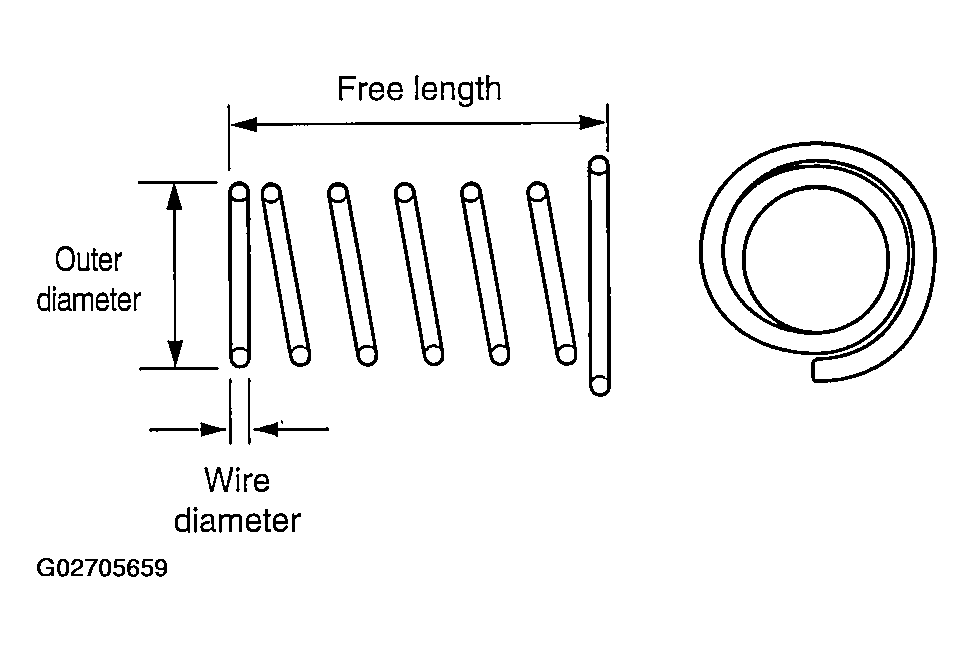

Orifice Check Spring
NOTE:
Do not compress spring when measuring it with vernier calipers.
- Measure spring free length.
ORIFICE CHECK SPRING SPECIFICATIONS
| Specifications |
| Outer diameter - In. (mm) |
Free length - In. (mm) |
Number of coils - In. (mm) |
Wire diameter - In. (mm) |
| 2.925 (7.5) |
1.291 (32.8) |
10 |
0.024 (0.6) |
- If not as specified, replace spring.
