Transaxle Components
Transaxle Components

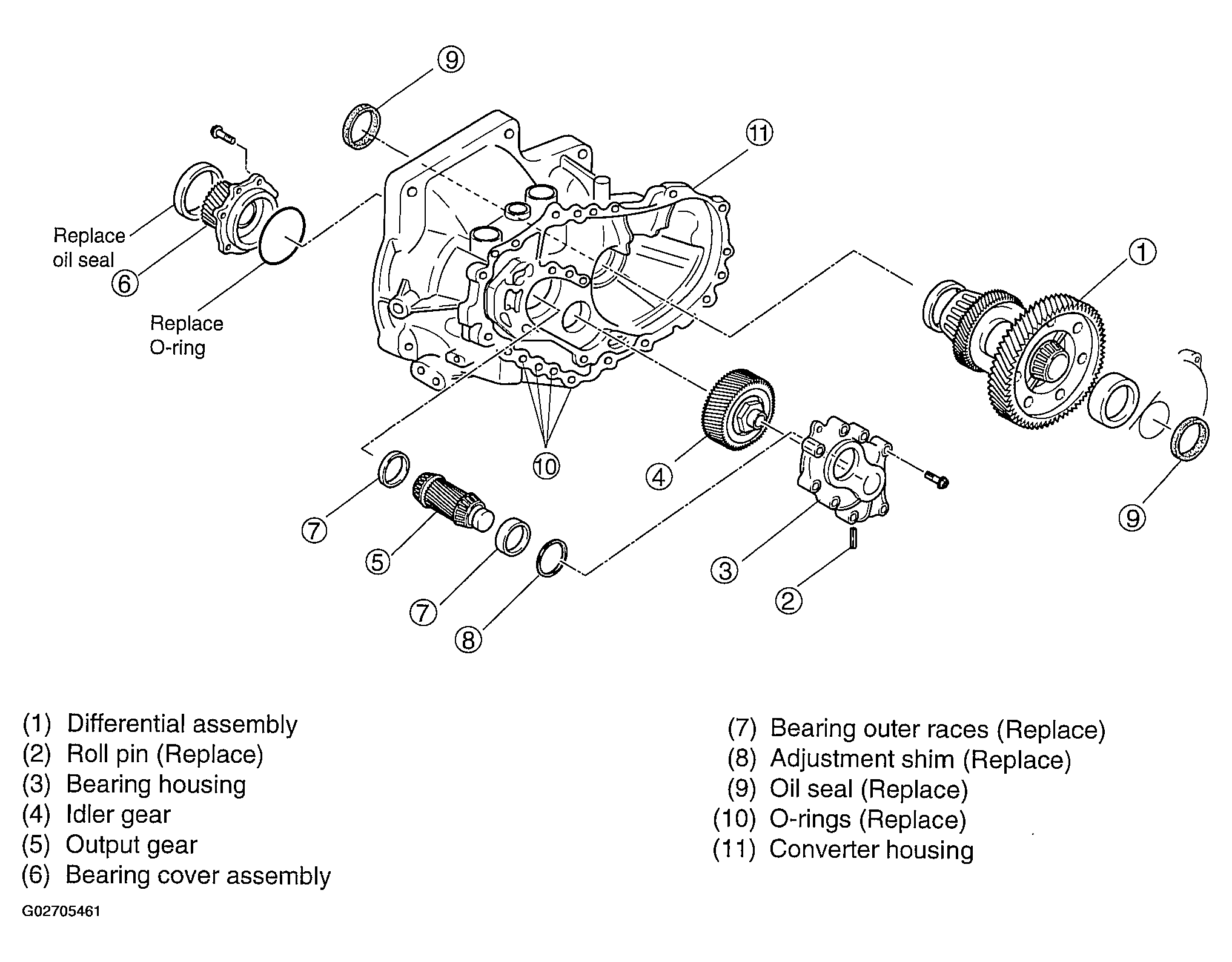

Fig 1: Transaxle Components (1 Of 4)

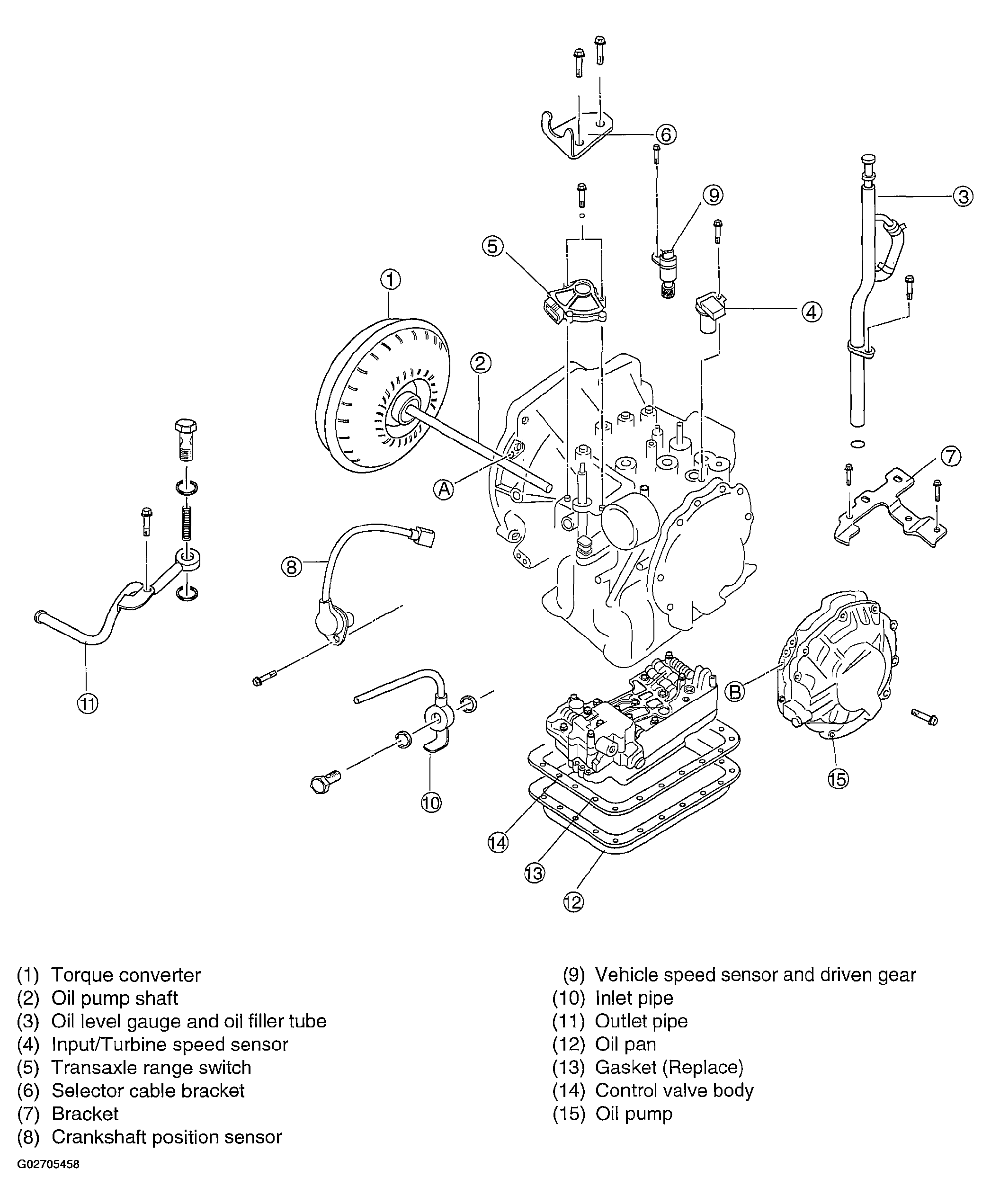

Fig 2: Transaxle Components (2 Of 4)

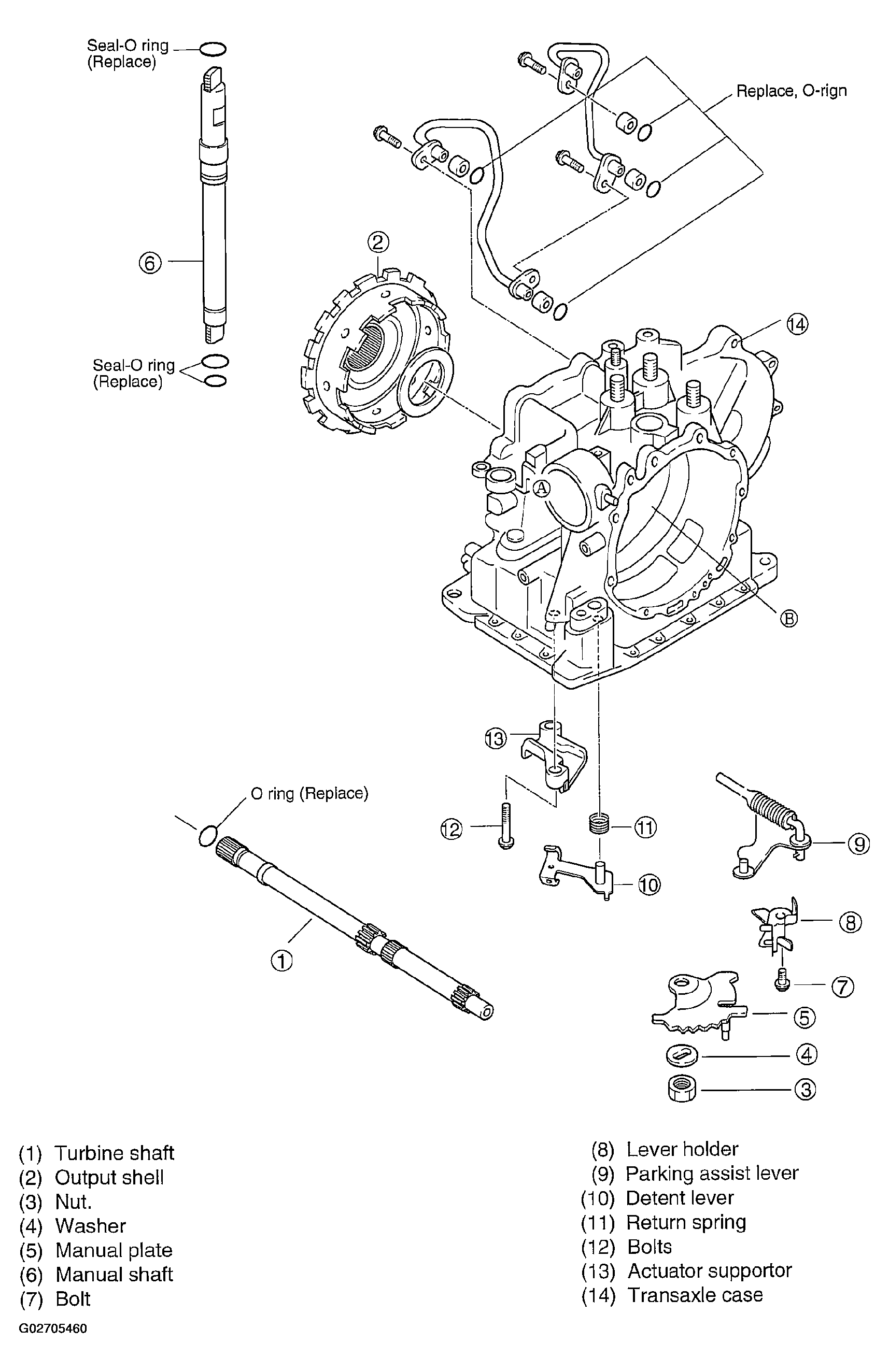

Fig 3: Transaxle Components (3 Of 4)
Fig 4: Transaxle Components (4 Of 4)
