Main Control Valve Body: Inspection

  1. Measure spring free lengths.

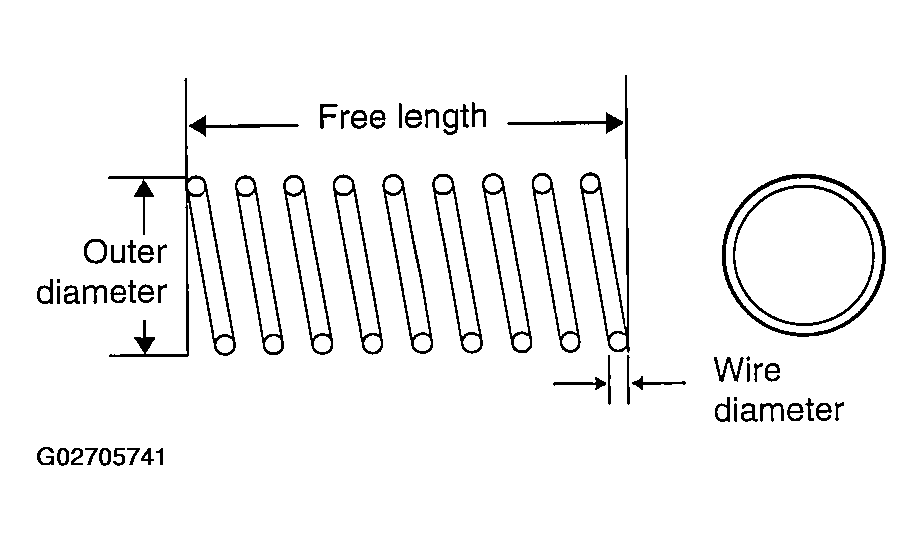

    Fig 1: Measuring Spring Length & Diameter
    G02705741
  2. If not within specification, replace spring(s).

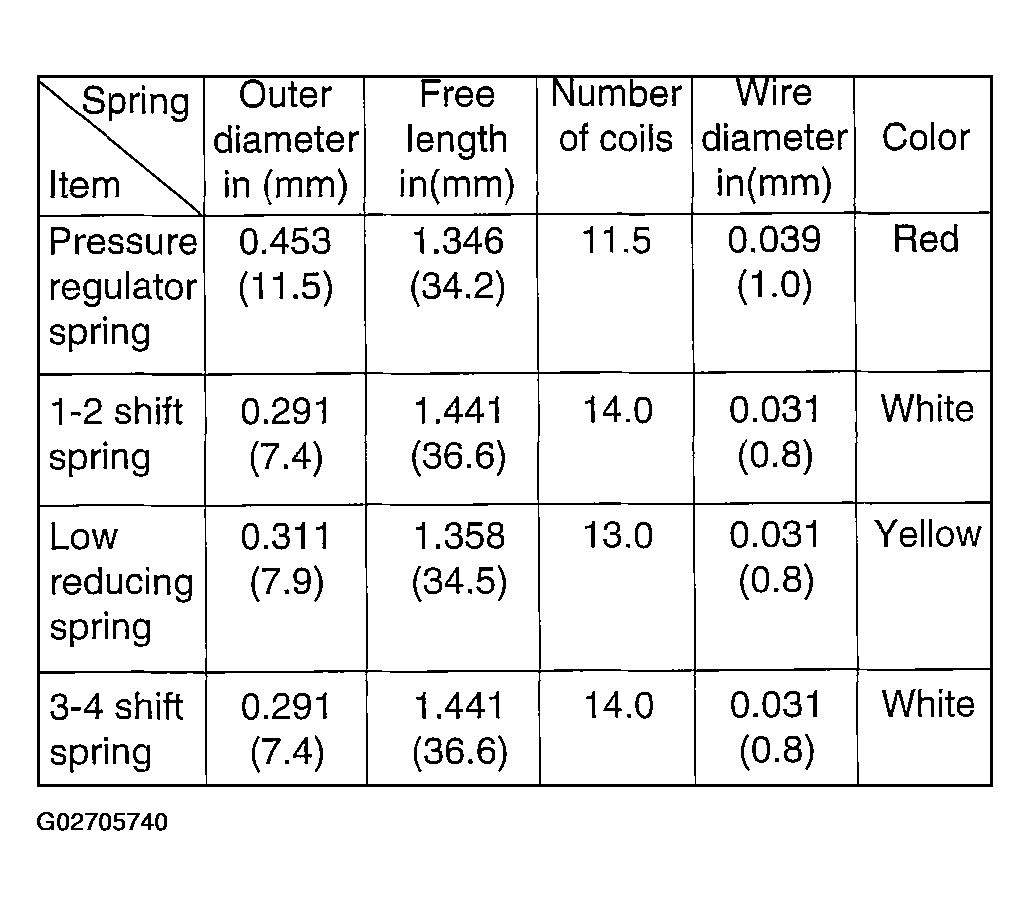

    Fig 2: Identifying Spring Specifications
    G02705740
