Select Lever: Reassembly
- Install the selector lever to the base plate.
- Install the guide plate to the base plate.
Tightening torque: 61~86.81 lb-in. (6.9~9.8 N.m, 70~100 kg-cm)
- Apply grease (spec: O-GL02) to inside of roller.

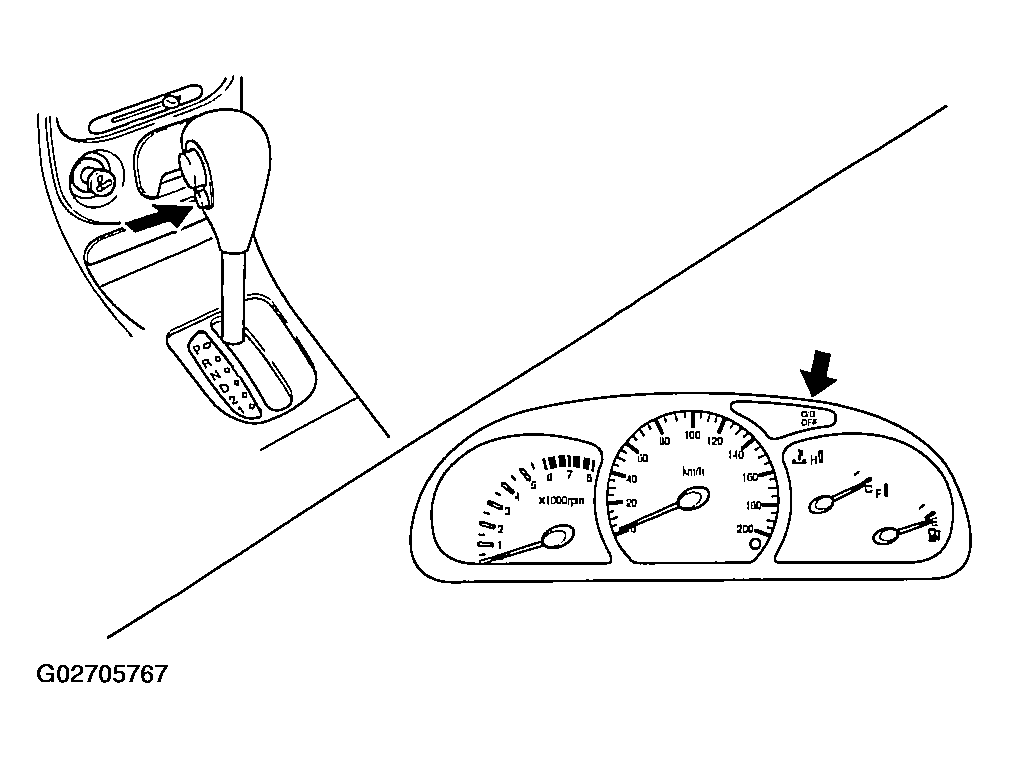

- Shift selector lever to "P" range.
- Loosely install spring plate and assist plate.
Tightening torque: 18~26 lb-in. (2.0~2.9 N.m, 20~30 kg-cm)

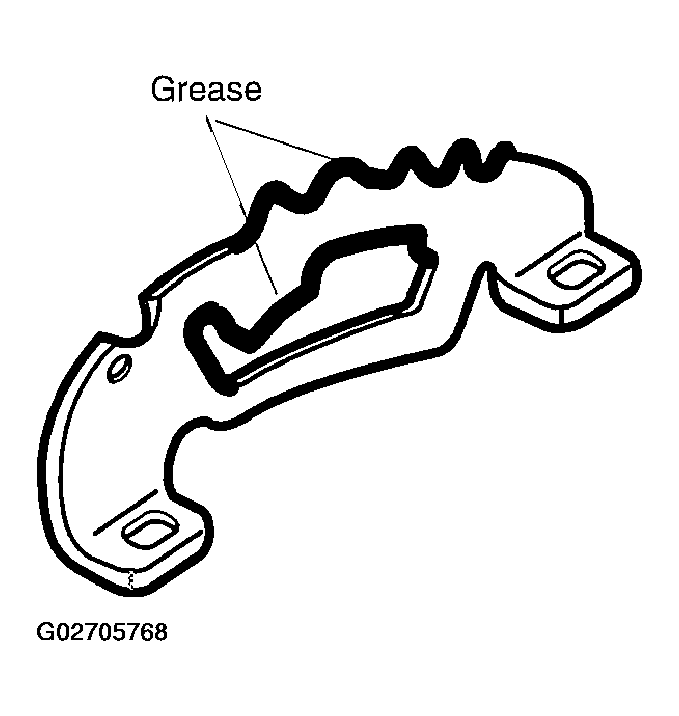

- Apply grease (0-GL02) to inside and outside of the guide plate.
