Torque Converter: Inspection

Check outer surface of converter for damage or cracks and replace it if necessary.
Check whether there is any rust on pilot hub of converter or on boss. If there is any, remove it completely.
Measure bushing of converter boss. Replace converter assembly if bushing is worn.
Bushing inner diameter
1. Standard: 2.088 in. (53.030 mm)
2. Maximum: 2.090 in. (53.075 mm)

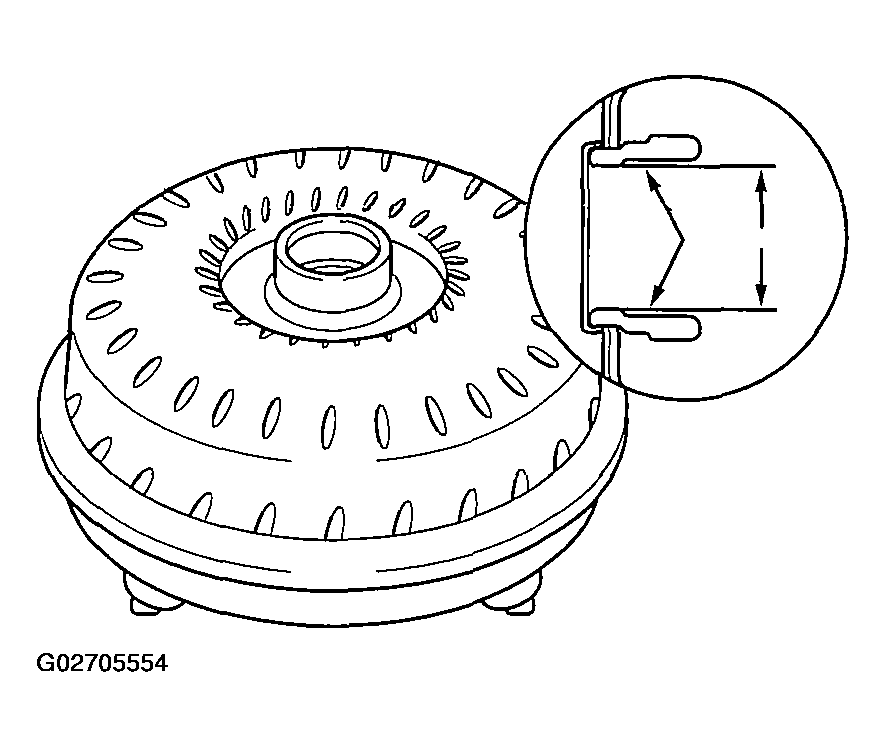

  Fig 1: Measuring Bushing Inner Diameter
