Power Window Main Switch

  1. Remove the switch from the door trim panel.
  2. Check for continuity between the terminals. If continuity is not as specified in the table, replace the power window switch.

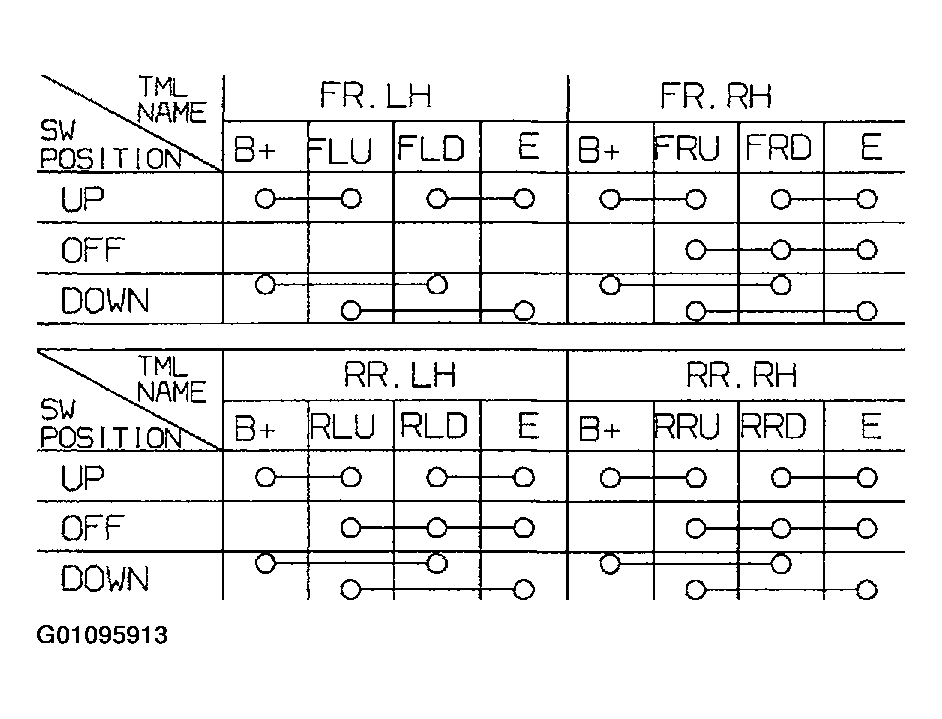

    Fig 1: Power Window Main Switch Function Chart
    G01095913Courtesy of KIA MOTORS AMERICA, INC.

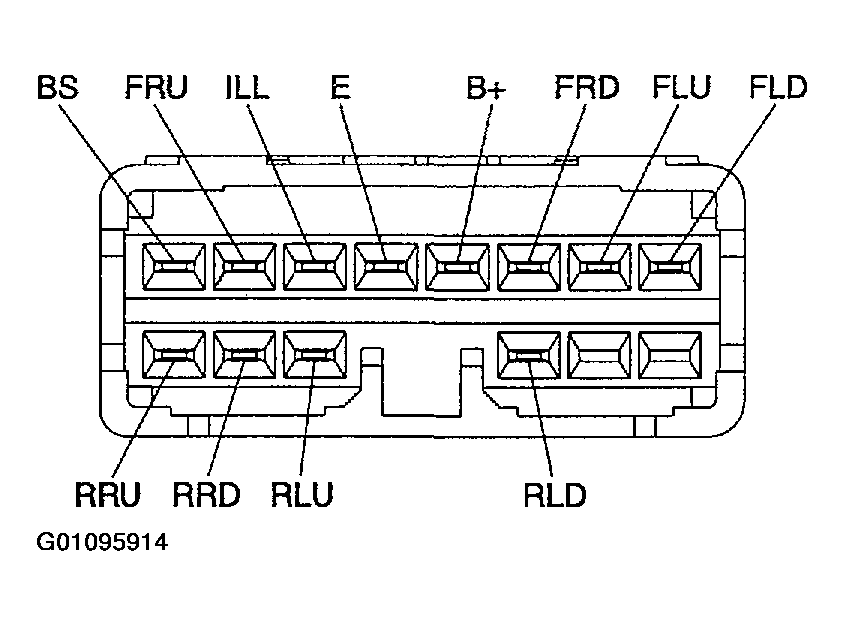

    Fig 2: Power Window Main Switch Connector Pinout
    G01095914Courtesy of KIA MOTORS AMERICA, INC.
