Replacing Sensor Rotor

  1. Remove the drive shaft assembly from the vehicle.
  2. Remove the sensor rotor by using the SST (0K670 990 AA0)  .

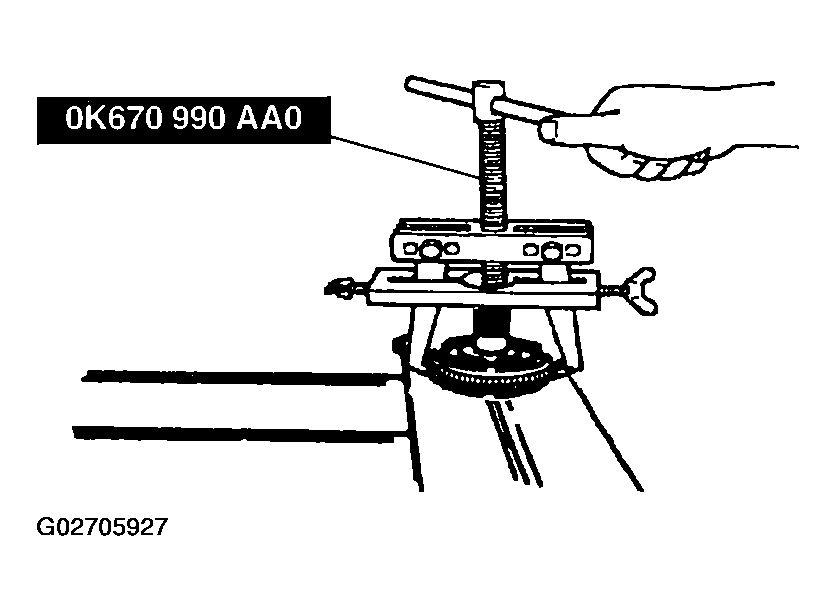

    Fig 1: Removing Sensor Rotor From Drive Shaft
    G02705927Courtesy of KIA MOTORS AMERICA, INC.
  3. Install the sensor rotor by using suitable tool.

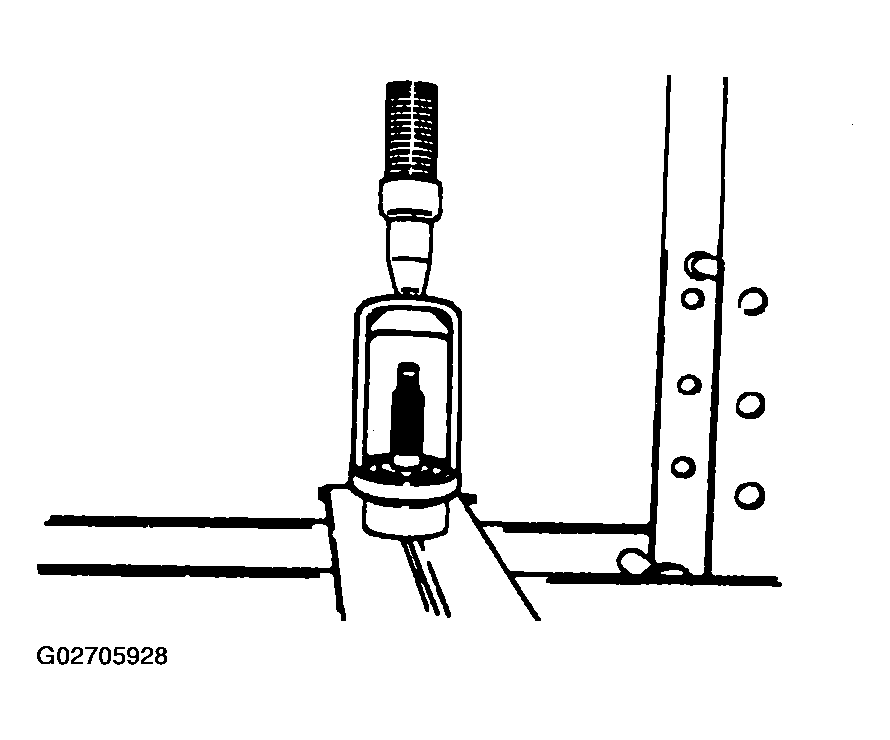

    Fig 2: Installing Sensor Rotor To Drive Shaft
    G02705928Courtesy of KIA MOTORS AMERICA, INC.
