Programming Procedure

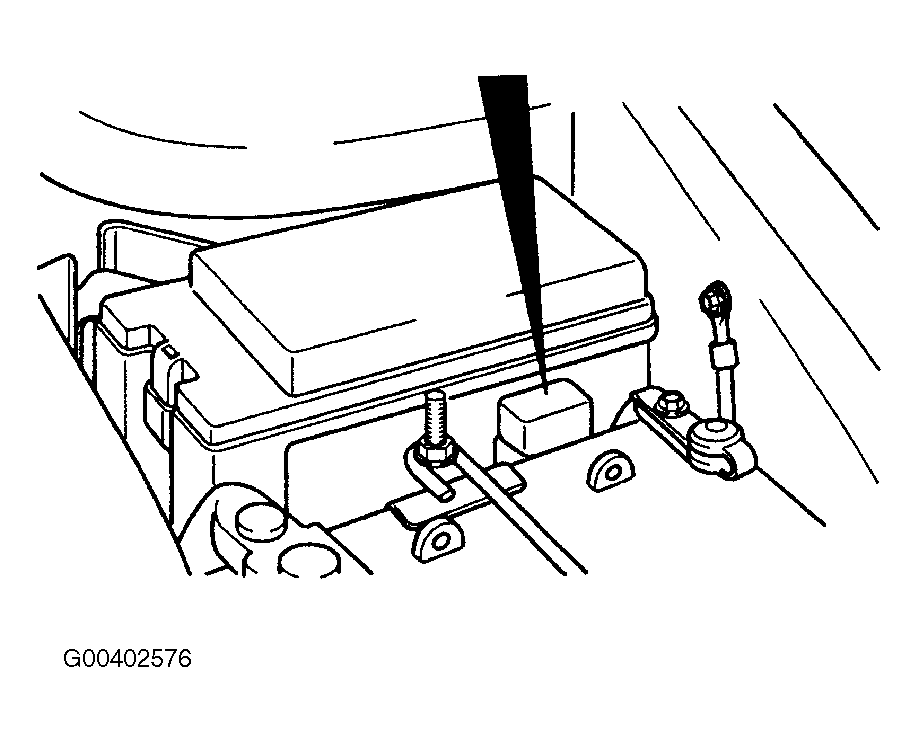

- Connect the coding connector to the diagnosis connector in order to jump between terminal 12 and terminal 7 if you have a coding connector, use a jumper wire between the above mentioned terminals.
- Turn the ignition switch to the ON position.
- Press LOCK button on transmitter two times.
- Turn the ignition switch to OFF position and remove ignition key from key set.
- Disconnect the coding connector from the diagnosis connector.
- Check for LOCK and UNLOCK operation. If successful, the buzzer will operate for approximately one second.
Courtesy of KIA MOTORS AMERICA, INC.
