Diode Test

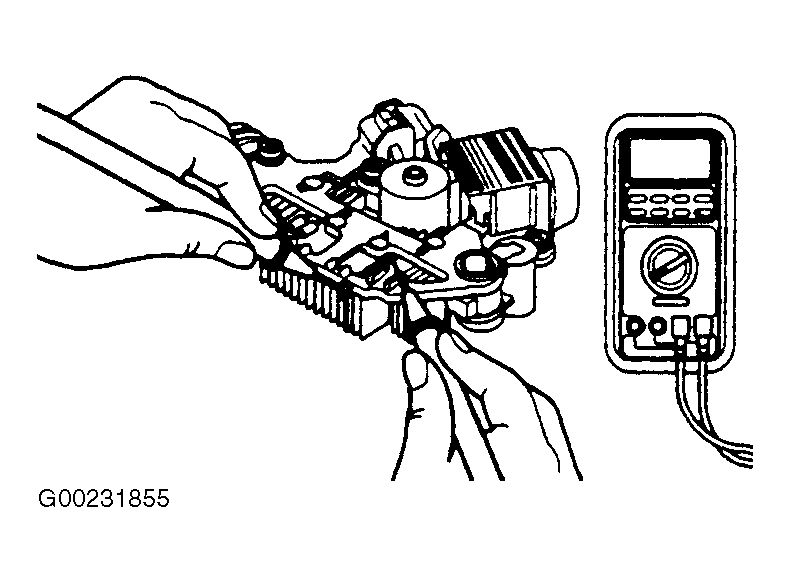

Check the 3 diodes for continuity by connecting an ohmmeter to both ends of each diode. See Fig 1 . Each diode should have continuity in one direction only. If continuity is not as specified, replace complete assembly.
Check the 3 diodes for continuity by connecting an ohmmeter to both ends of each diode. See Fig 1 . Each diode should have continuity in one direction only. If continuity is not as specified, replace complete assembly.
