Component Locations

COMPONENT LOCATIONS

Component Location
Engine Compartment Fuse Box On Left Side Of Engine Compartment
Passenger Compartment Fuse Box Behind Left Kick Panel
Fuel Tank Unit Beneath Rear Seat Cushion
Oil Pressure Switch On Rear Center Of Engine, Behind Generator
Temperature Gauge Sending Unit Behind Thermostat Housing
Vehicle Speed Sensor (VSS) On Left Rear Top Of Transmission

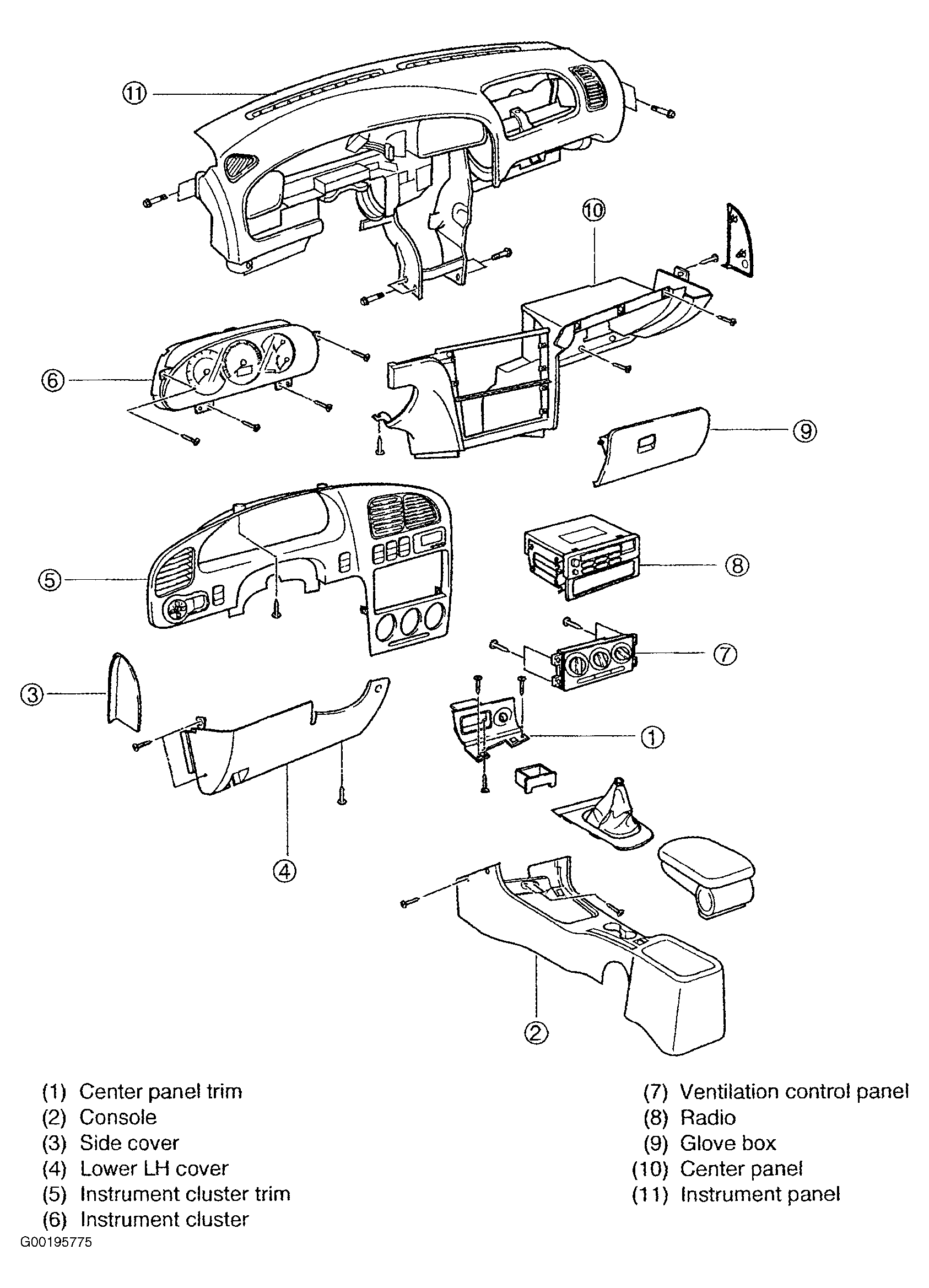

Fig 1: Identifying Instrument Panel Assembly
G00195775Courtesy of KIA MOTORS AMERICA, INC.
