Clutch Cover And Disc: Component

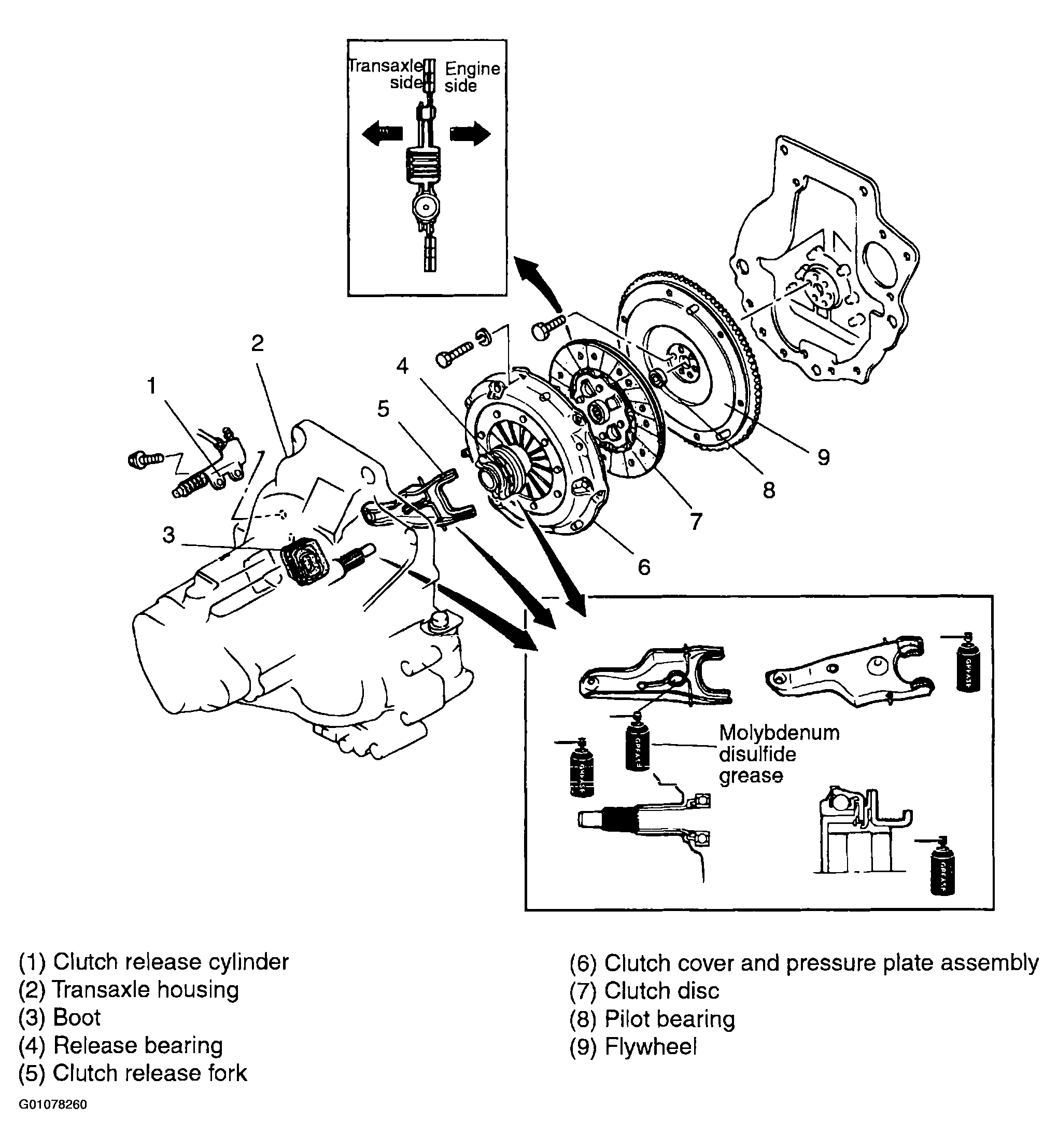

Fig 1: Illustrating Clutch Cover And Disc Components
G01078260Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
  1. Remove clutch release cylinder with clutch line connected.
  2. Do not  remove pilot bearing unless necessary.
