Home >> Kia >> 2002 >> Spectra Base, Standard >> Repair and Diagnosis >> Transmission >> Clutch System >> General >> Structural View

Structural View

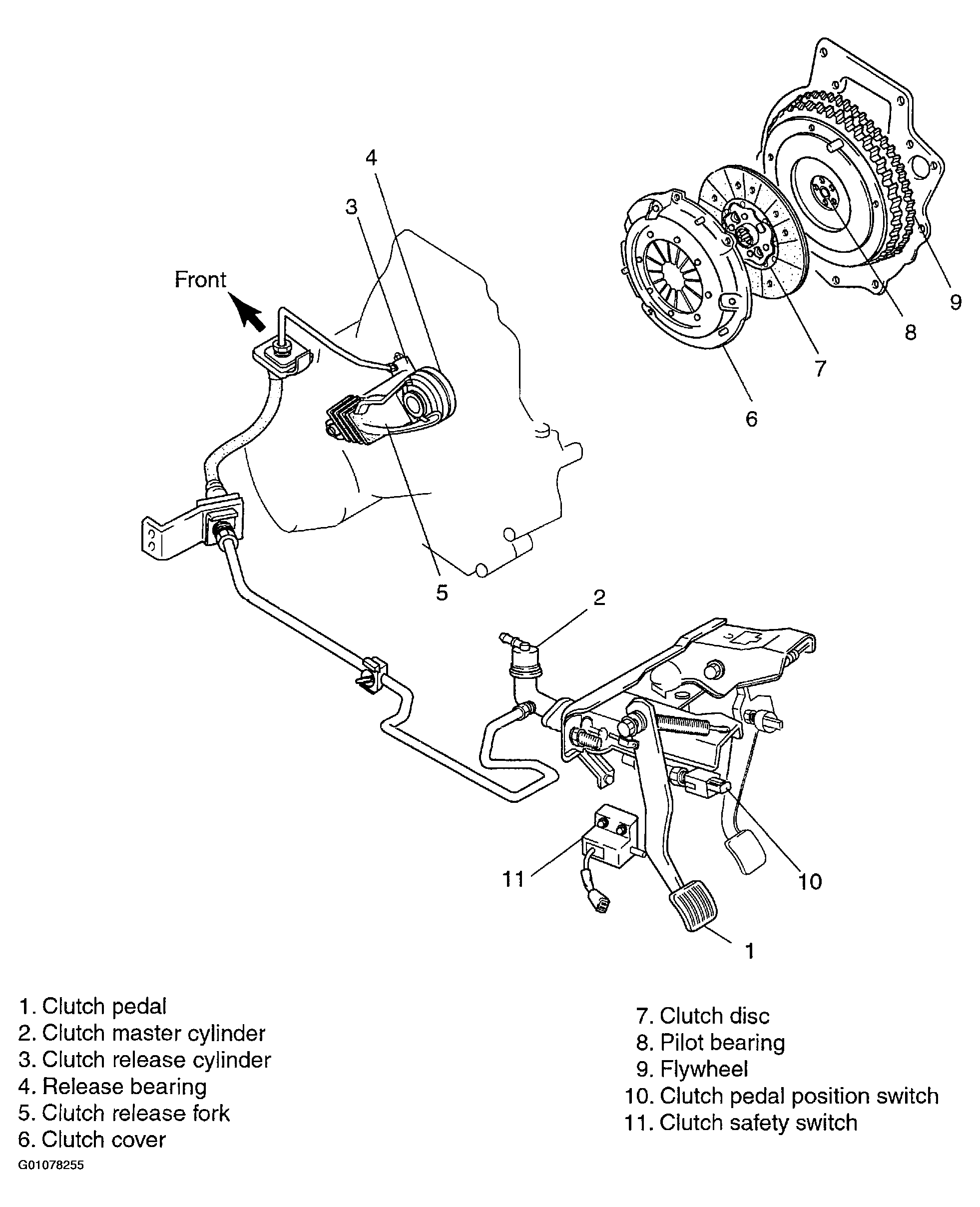

Fig 1: Clutch System Structural View
G01078255Courtesy of KIA MOTORS AMERICA, INC.
