Primary Shaft Assembly

  1. Measure thrust clearance of all gears before disassembly. Refer to PREINSPECTION  .

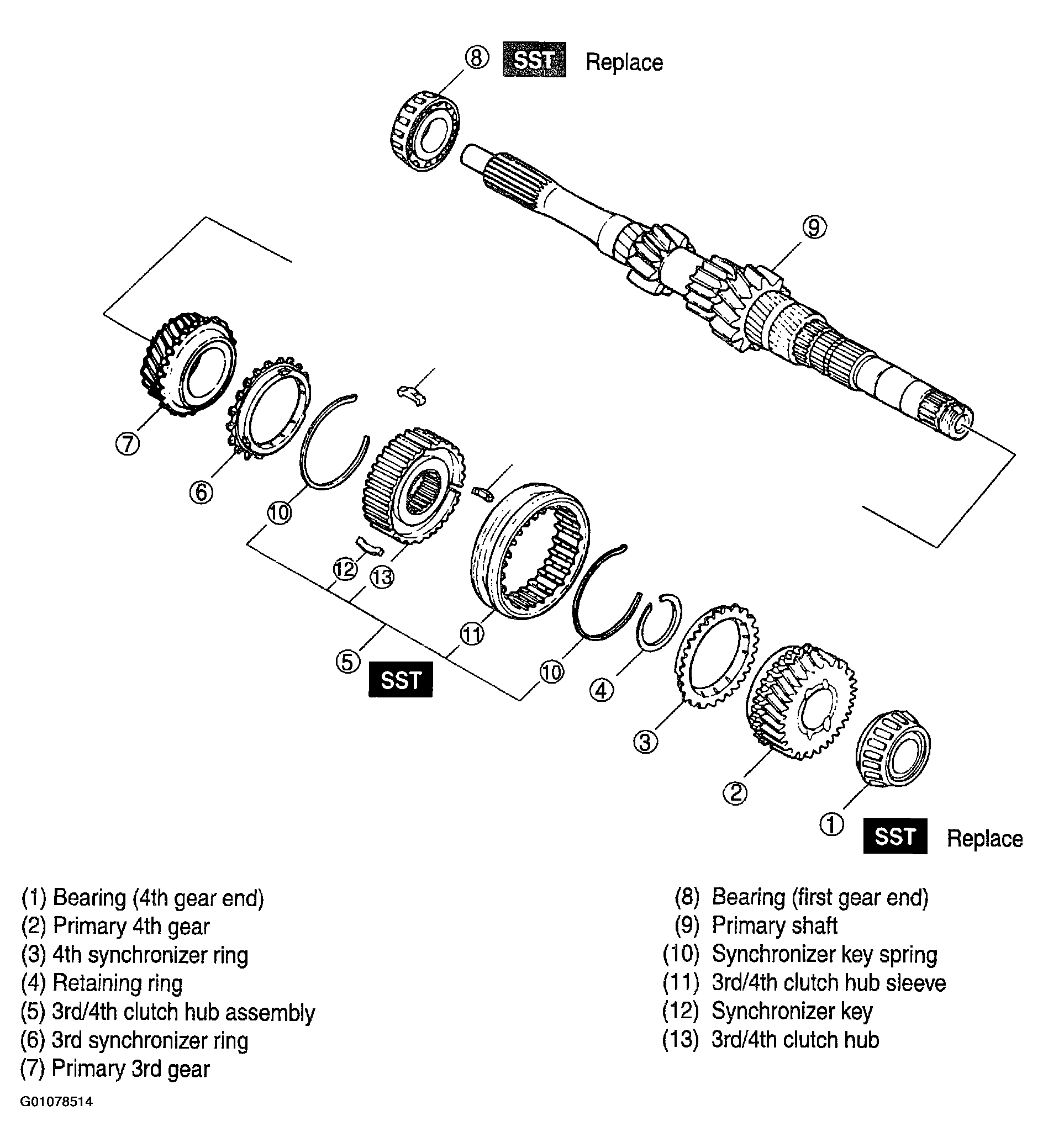

    Fig 1: Illustrating Input Shaft Components
    G01078514Courtesy of KIA MOTORS AMERICA, INC.
  2. Disassemble in order shown in figure. Refer to DISASSEMBLY NOTE  .
    CAUTION: Check thrust clearance of all gears before disassembly and after assembly.
