Primary Shaft Assembly

Assemble in order shown in figure. Refer to ASSEMBLY NOTE .

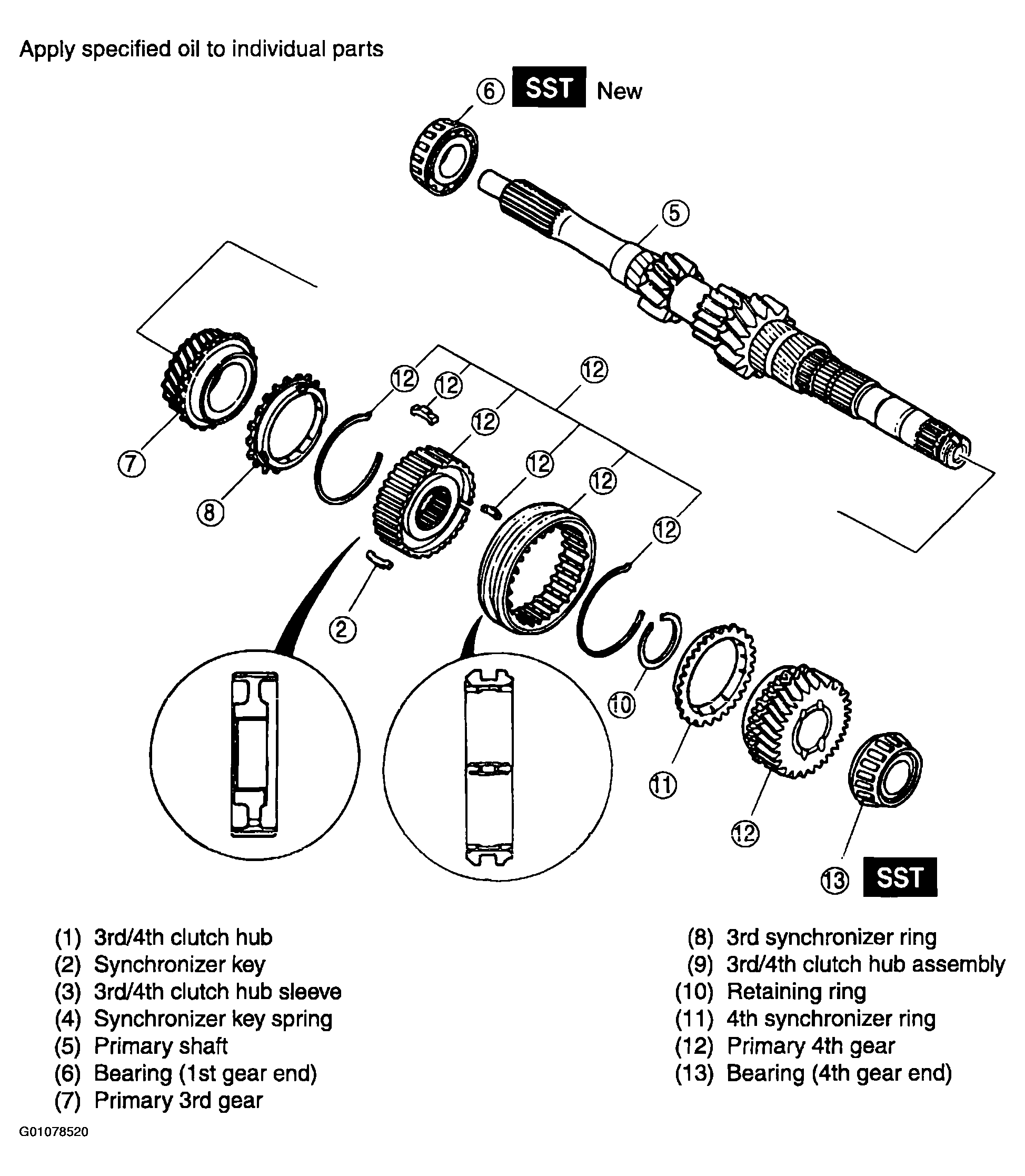

Fig 1: Illustrating Reassembly Order

G01078520

Courtesy of KIA MOTORS AMERICA, INC.
