Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Unit | At right rear of engine compartment. |
| Air Bag Control Unit | At lower center of dash, on floor tunnel. |
| Air Con Control Unit | Under center of dash. |
| Auto Light Control Unit | Under center of dash. |
| Cruise Control Unit | At right rear corner of engine compartment. |
| DRL Unit | At right front side of engine compartment. |

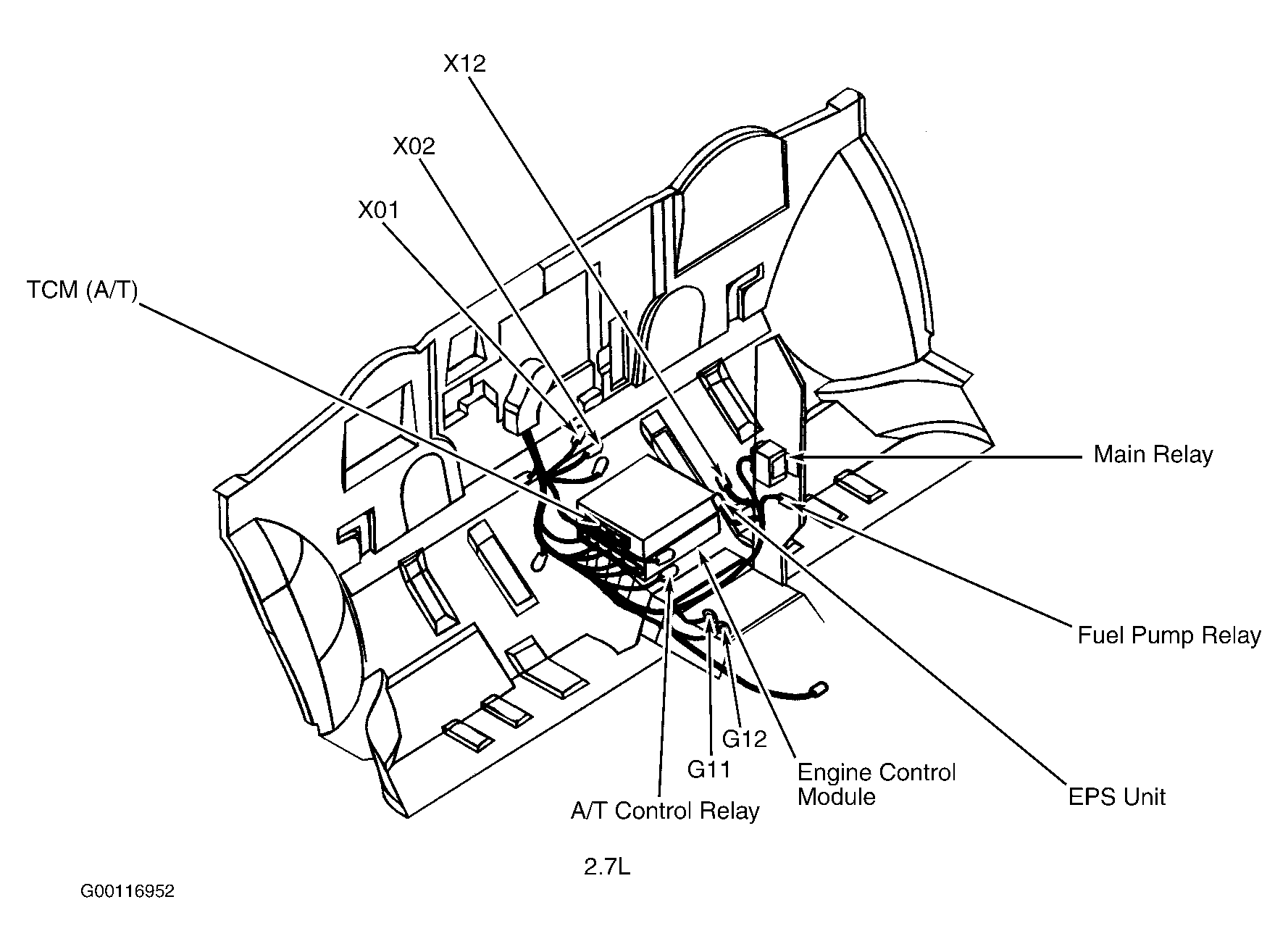

| Engine Control Module (2.7L) | Behind lower center of dash. See Figure. |

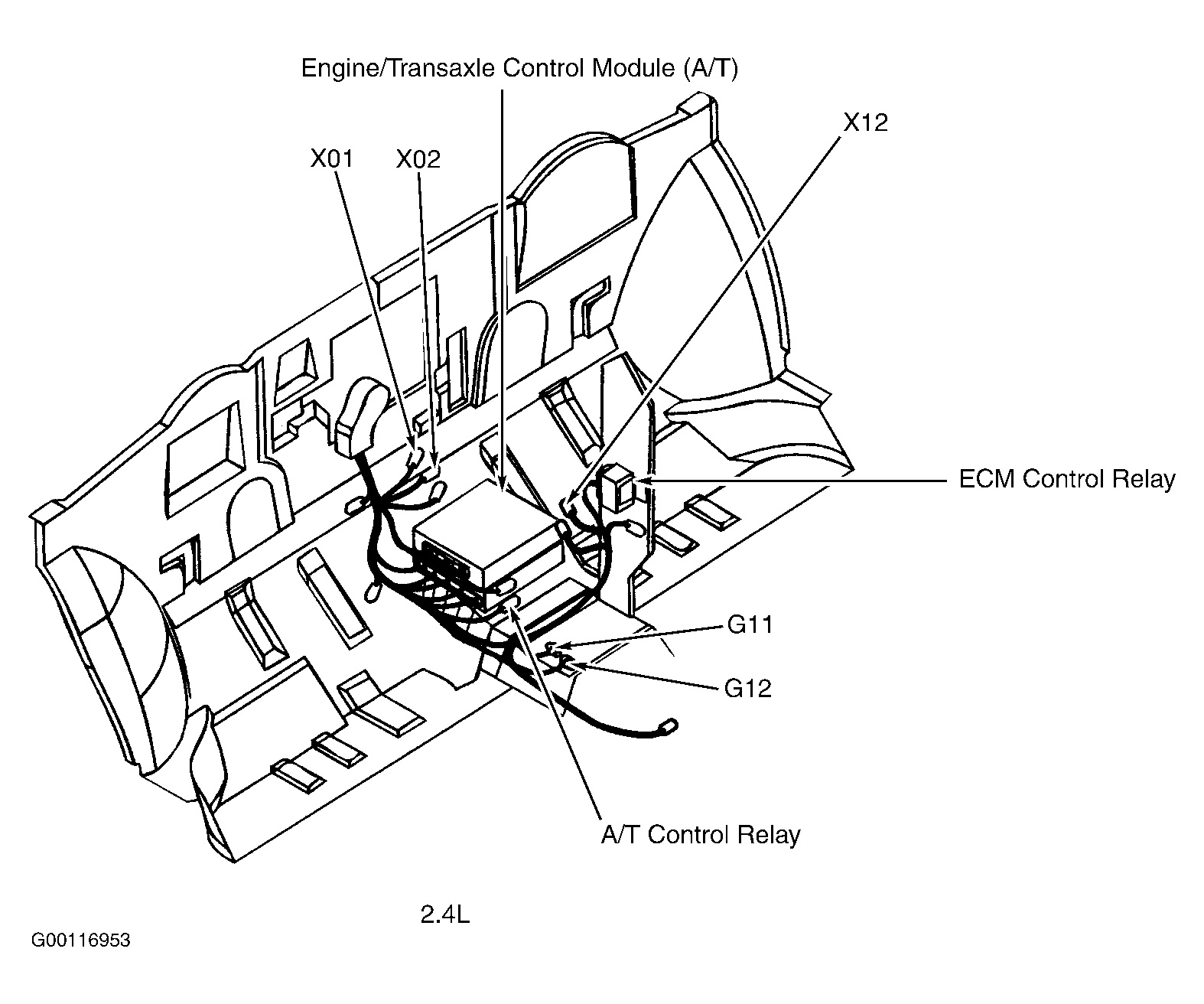

| Engine/Transaxle Control Module (A/T) (2.4L) | Behind lower center of dash. See Figure. |
| EPS Unit | Behind lower center of dash. See Figure. |

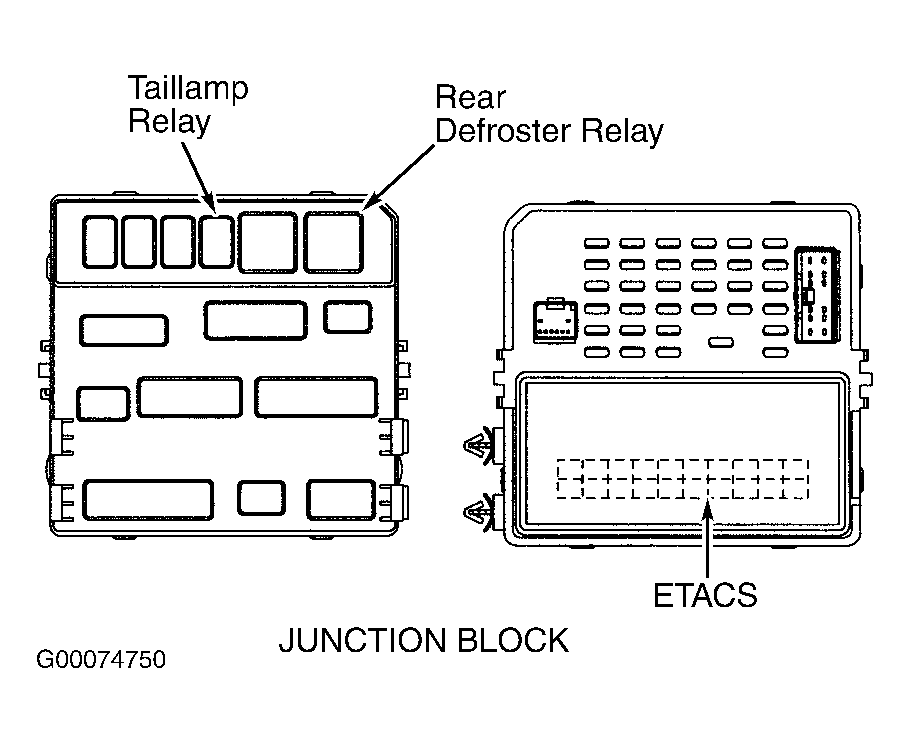

| ETACS | On junction block. See Figure. |
| Keyless Entry Unit | Behind lower center of dash. |
| TCM (A/T) (2.7L) | Behind lower center of dash. See Figure. |
