Power Window Main Switch

  1. Remove the switch from the door trim panel.
  2. Check for continuity between the terminals. If continuity is not as specified in the table, replace the power window switch.

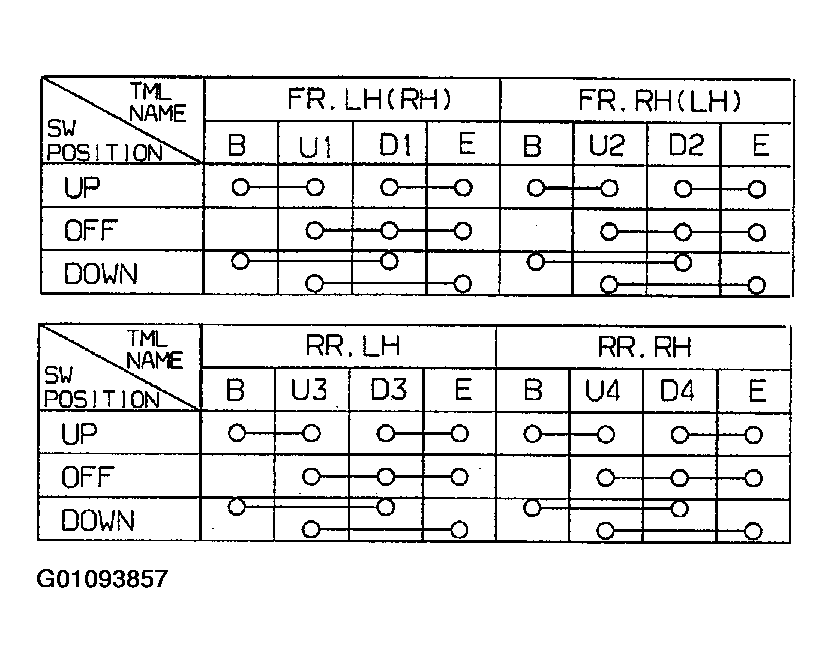

Fig 1: Checking Power Window Main Switch Continuity
G01093857Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Identifying Power Window Main Switch Terminals
G01093858Courtesy of KIA MOTORS AMERICA, INC.
