Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location
Fuse Box At lower left side of dash.

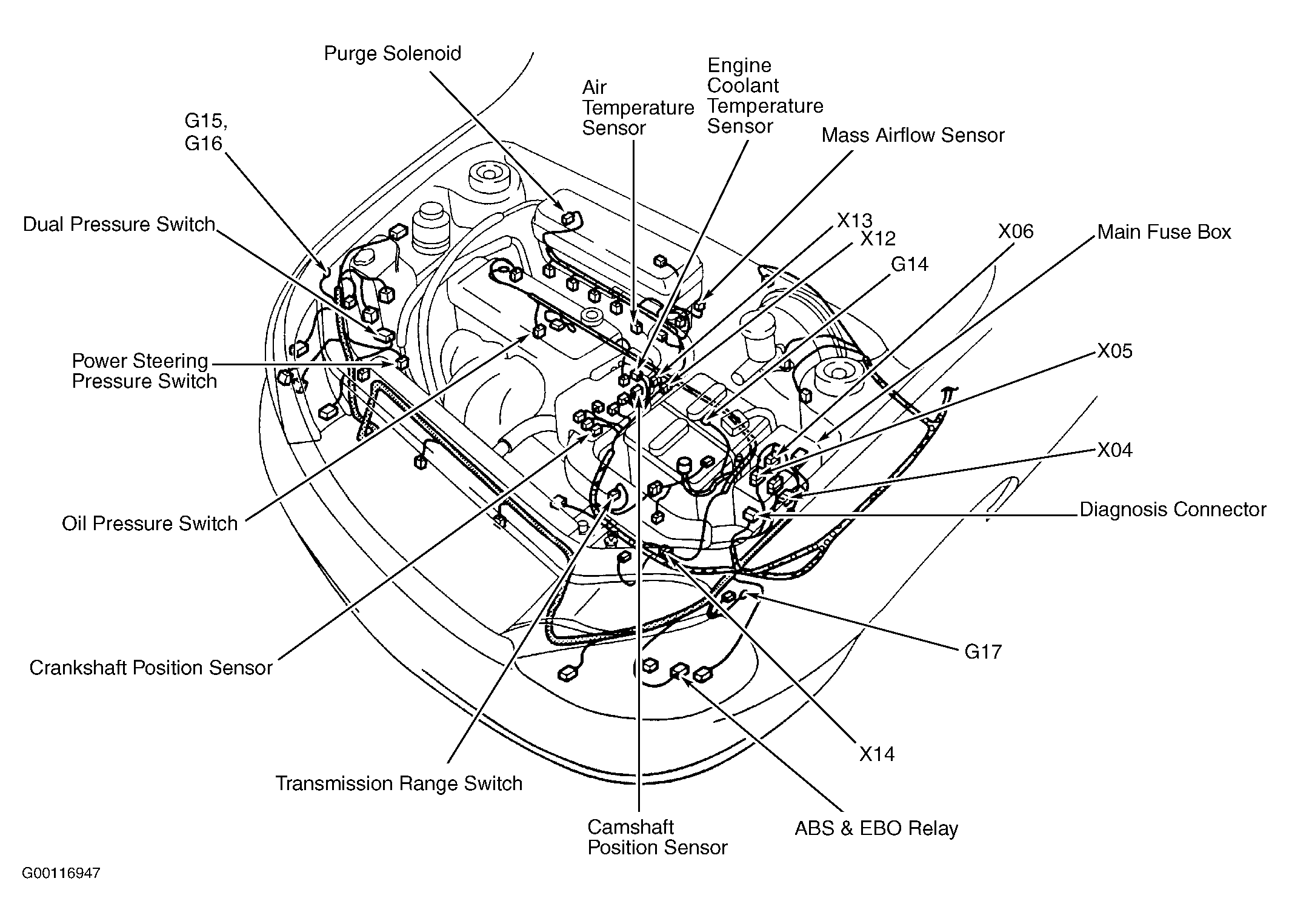

Main Fuse Box At left rear of engine compartment. See Figure.
Relay Box At lower left side of dash.
