Home >> Kia >> 2003 >> Rio Base, Automatic >> Repair and Diagnosis >> Electrical >> Horns >> Adjustments

Repair and Diagnosis: Electrical: Horns: Adjustments

Operate the horn, and adjust the tone to a suitable level by turning the adjusting screw.

NOTE: After adjustment, apply a small amount of paint around the screw head to keep it from loosening.

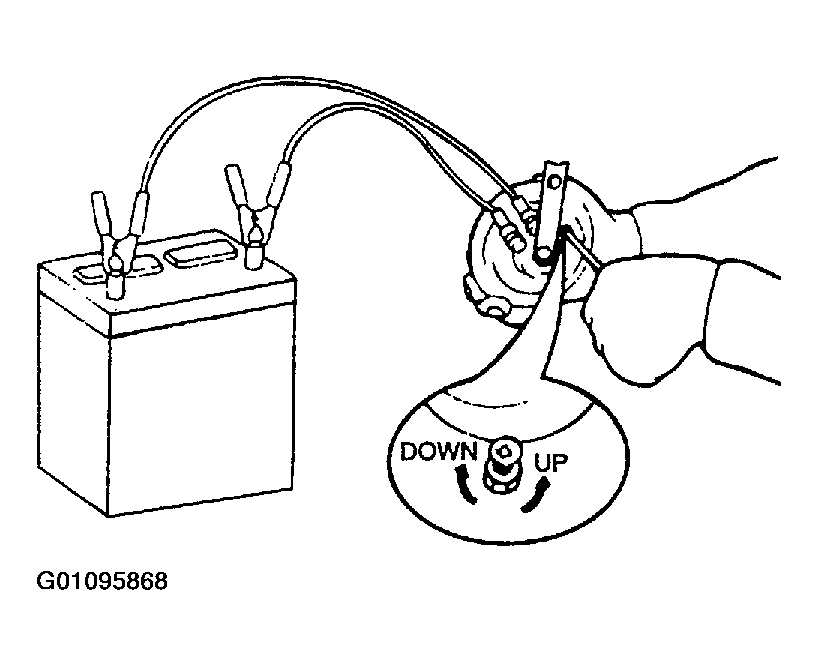

Fig 1: Adjusting Horn Tone
G01095868Courtesy of KIA MOTORS AMERICA, INC.
