Home >> Kia >> 2003 >> Rio Base, Automatic >> Repair and Diagnosis >> Electrical >> Horns >> Inspection

Repair and Diagnosis: Electrical: Horns: Inspection

  1. Test the horn by connecting battery voltage to the 1 terminal and ground the 2 terminal.
  2. The horn should make a sound. If the horn fails to make a sound, replace it.

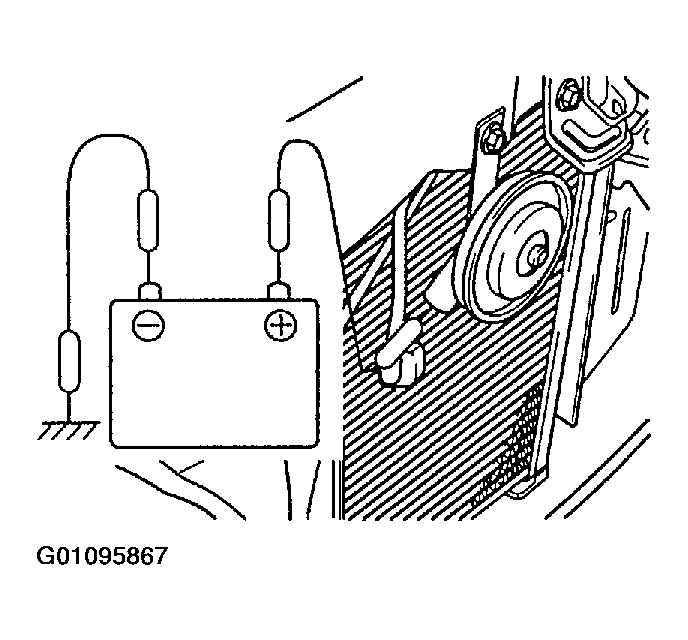

    Fig 1: Testing Horn Operation
    G01095867Courtesy of KIA MOTORS AMERICA, INC.
