Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|

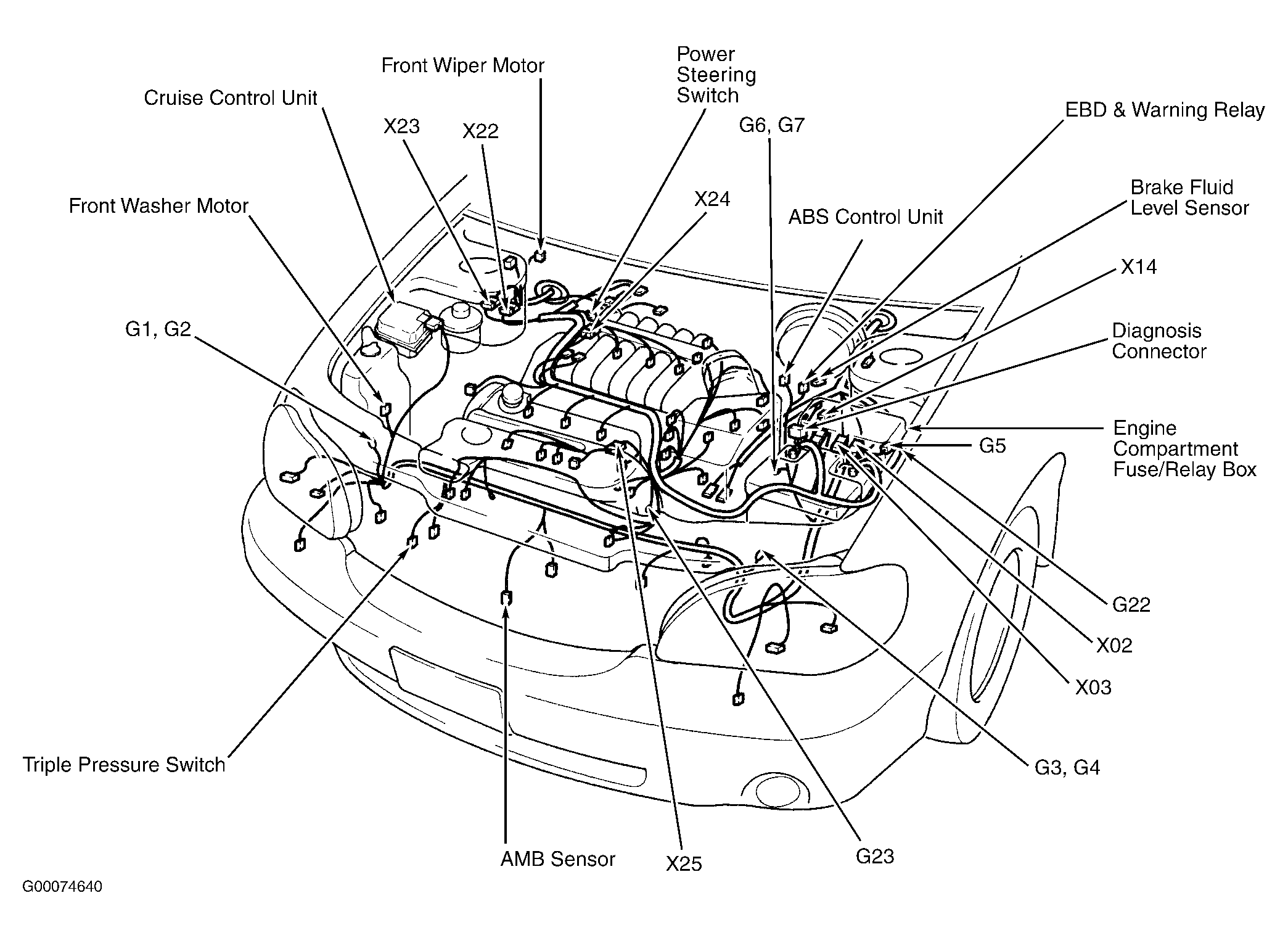

| ABS Control Unit | At left rear of engine compartment. See Figure. |

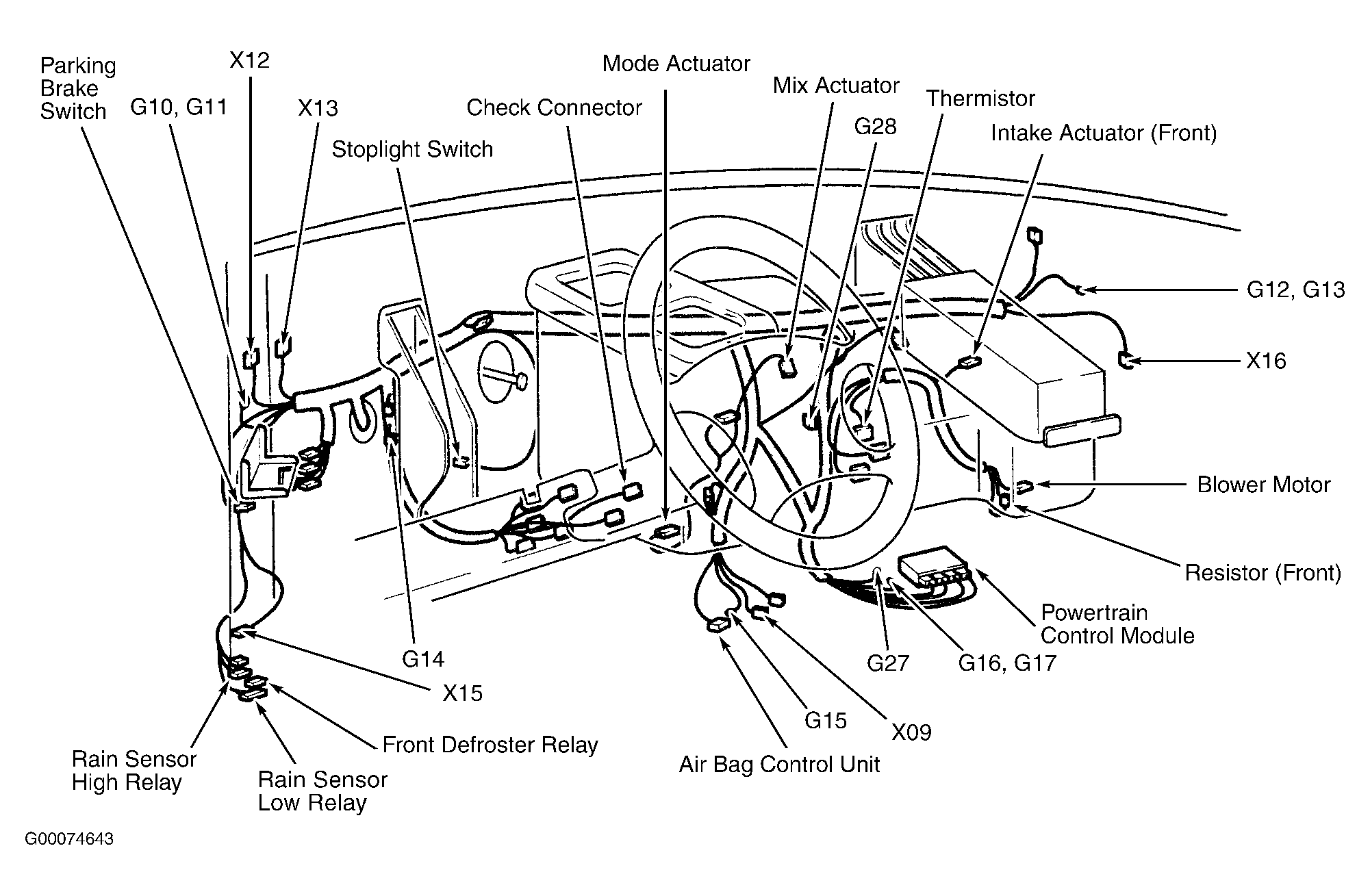

| Air Bag Control Unit | At lower center of dash, on floor tunnel. See Figure. |

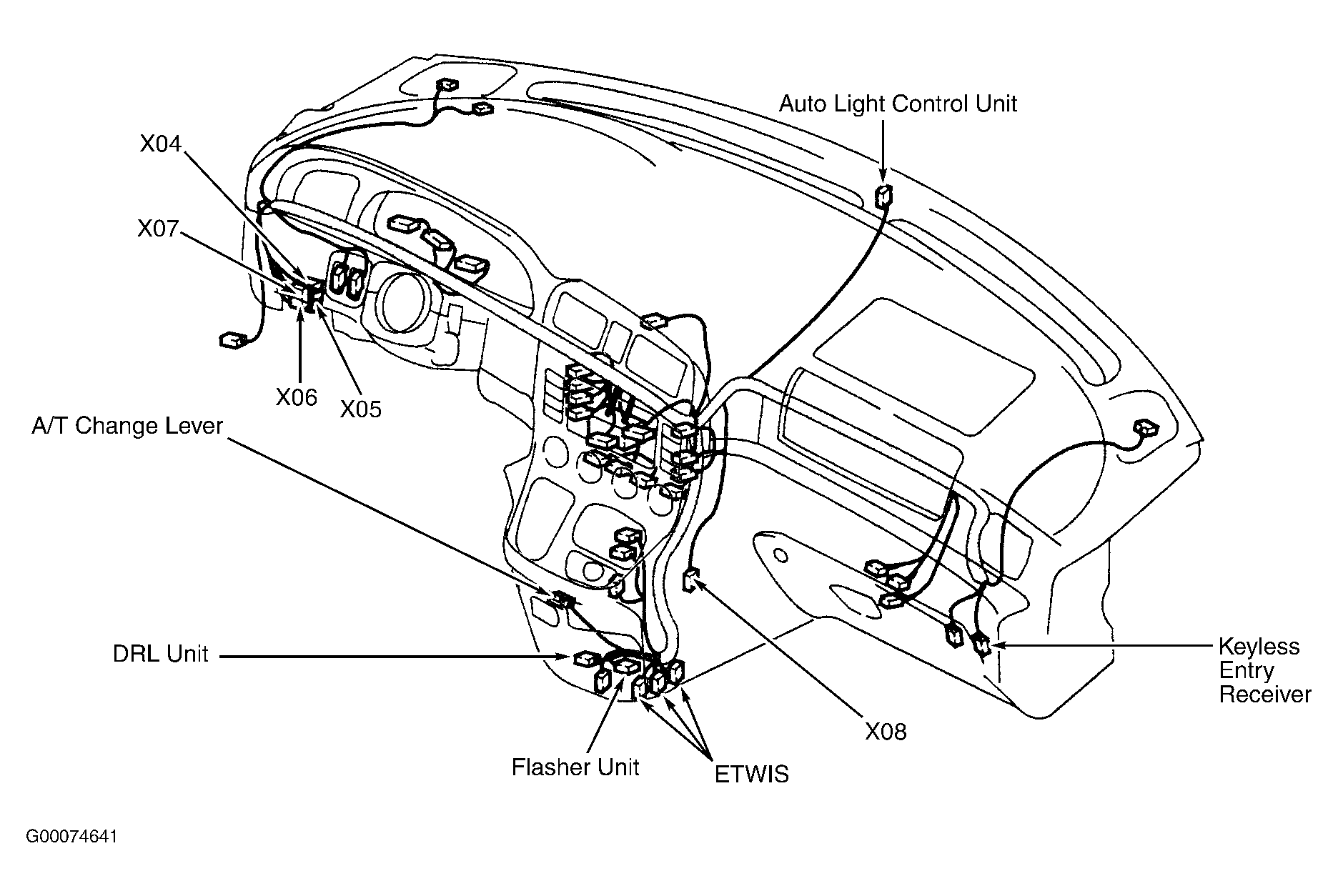

| Auto Light Control Unit | Behind center of dash. See Figure. |
| Cruise Control Unit | At right rear side of engine compartment. See Figure. |
| DRL Unit | Below center of dash. See Figure. |
| ETWIS | Below center of dash. See Figure. |
| Flasher Unit | Below center of dash. See Figure. |
| Keyless Entry Receiver | Behind lower right side of dash. See Figure. |
| Powertrain Control Module | Under right front passenger floorboard. See Figure. |
| Sun Roof Control Unit | At front center of roof, in sun roof unit. |
