Power Window Switch: Inspection

Remove the switch from the door trim panel.
Check for continuity between the terminals. If continuity is not as specified in the illustration, replace the power window switch.

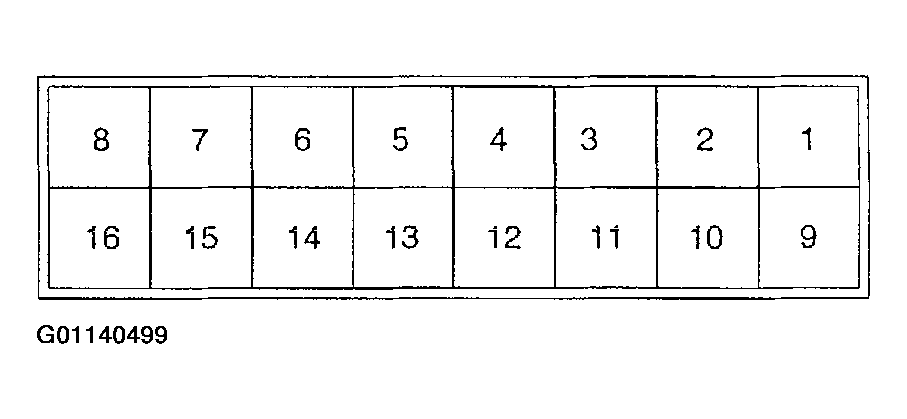

Fig 1: Illustrating Switch Connector Pinout
Courtesy of KIA MOTORS AMERICA, INC.

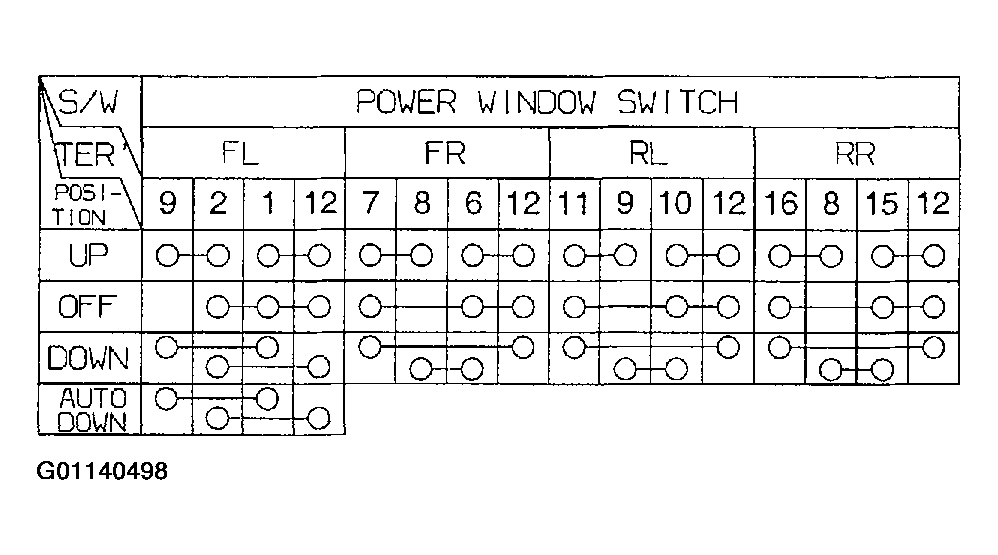

Fig 2: Illustrating Switch Continuity
Courtesy of KIA MOTORS AMERICA, INC.

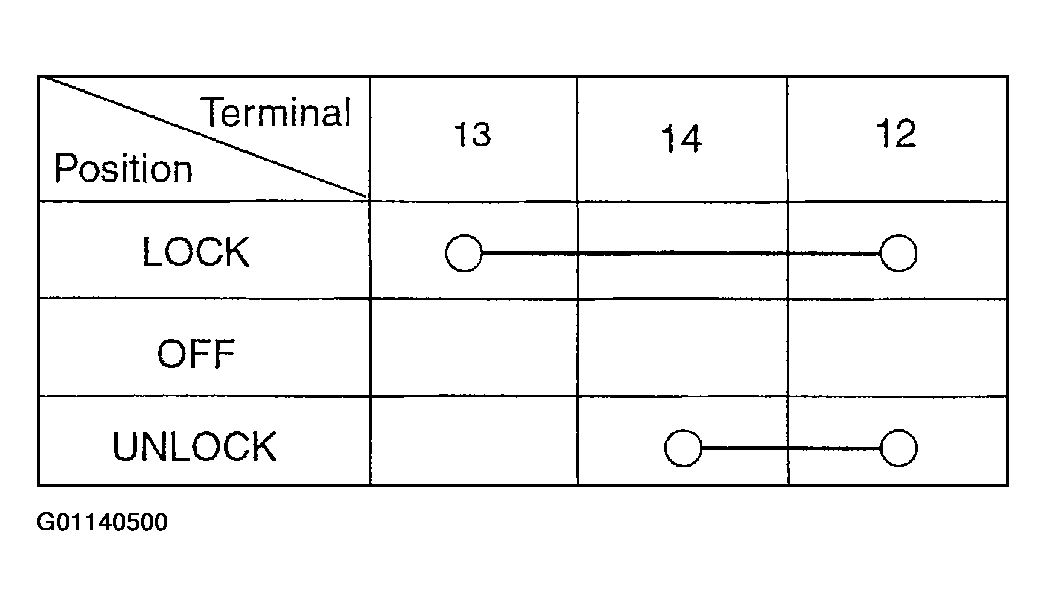

Fig 3: Illustrating Power Window Lock Switch Continuity
Courtesy of KIA MOTORS AMERICA, INC.

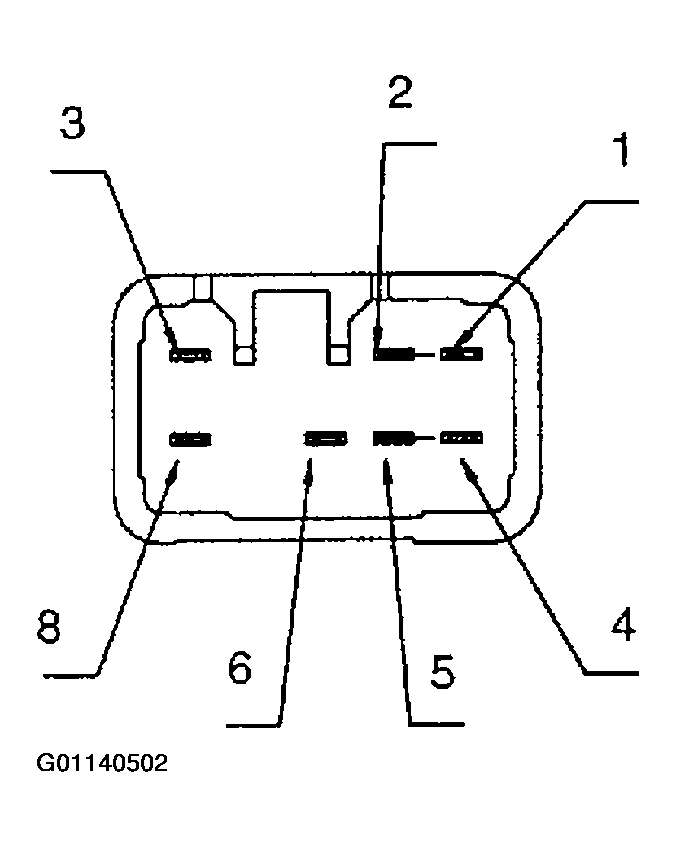

Fig 4: Illustrating Sub Switch Connector Pinout
Courtesy of KIA MOTORS AMERICA, INC.

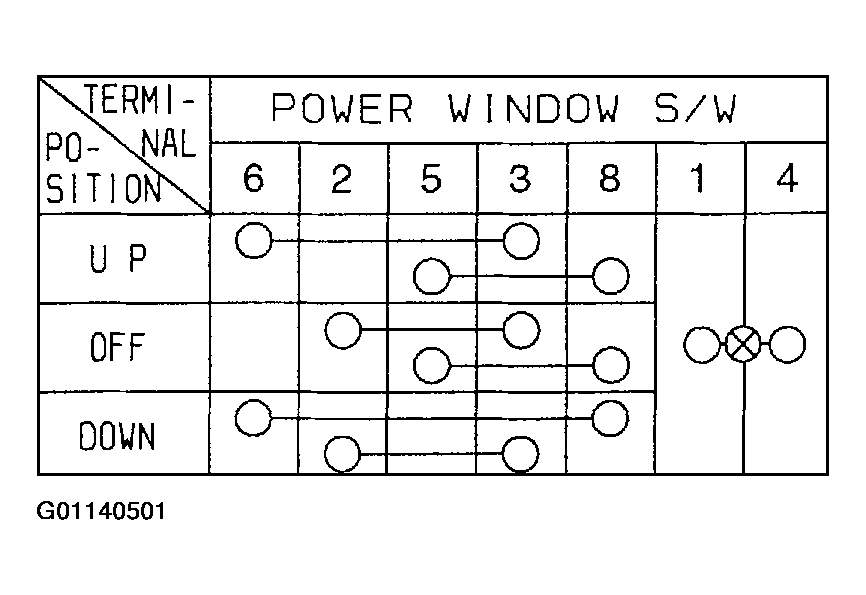

Fig 5: Illustrating Power Window Sub Switch Continuity
Courtesy of KIA MOTORS AMERICA, INC.
